174 Zodiak — User Manual
Section 4 — Menus Overview
Bus Linking Menu
The Bus Link menu allows the operator to set up bus links and source asso-
ciations and enable the linking. This menu is accessed via Daily Setups,
Suite Prefs, Bus Linking (
Figure 113 ).

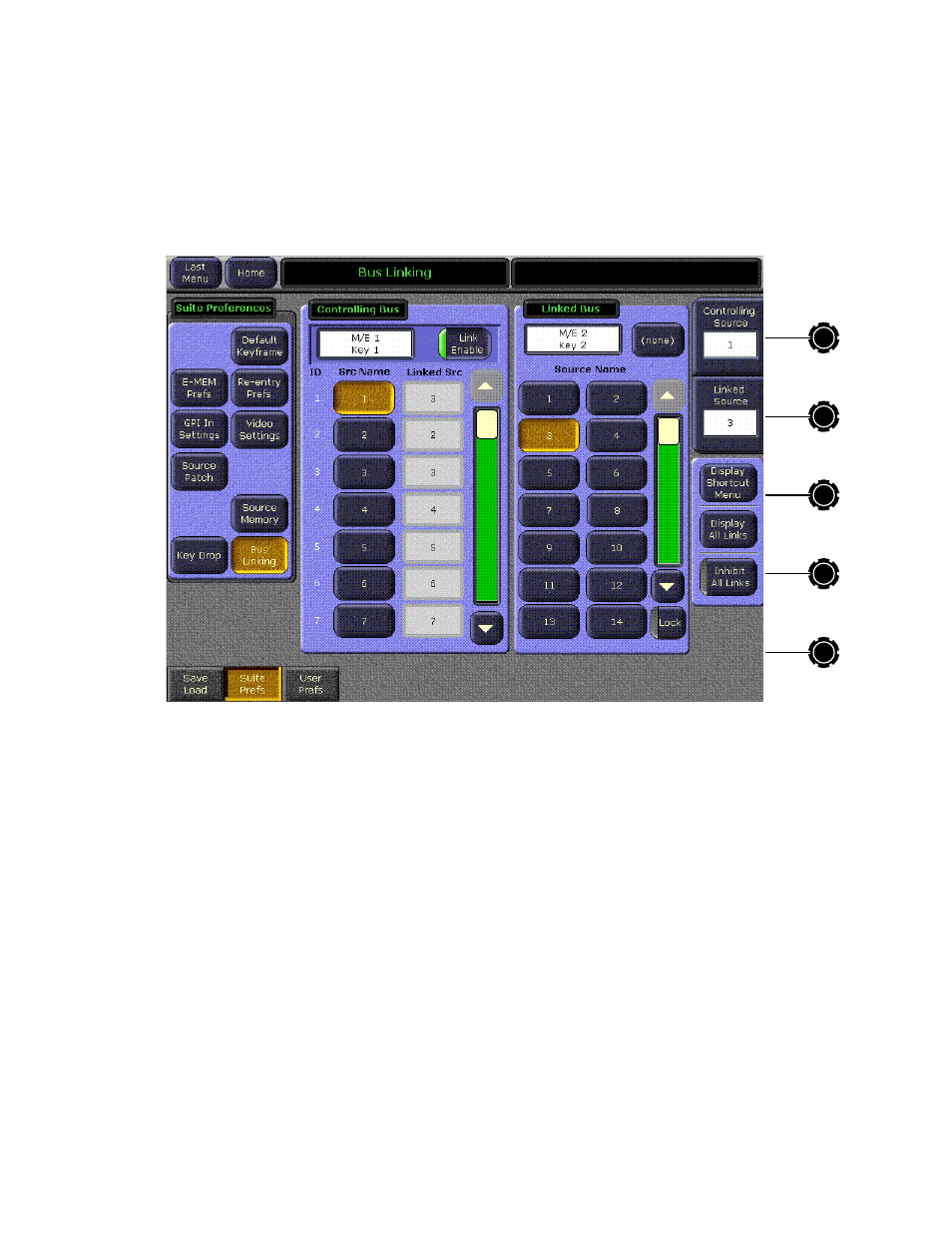

Figure 113. Bus Linking Menu
The Bus Linking menu has two main panes, a Controlling bus pane on the
left and a Linked bus pane on the right. Controls in these panes are used to
select the buses to be linked and associate the sources between those buses.
The Controlling bus pane shows the current source associations. Controls
outside these panes on the right side of the menu are also available for
making source associations and managing bus links.
As a general rule, the Bus Linking menu operates from a Controlling bus
viewpoint. The basic steps to follow are to select the Controlling bus, select
the Linked bus, enable the link, select the Controlling bus source, then
select the Linked bus source. See Source Associations
on page 176 for more
information.
