270 Zodiak — User Manual
Section 4 — Menus Overview
When the All Sources button is off, the user can select a single source by
touching the Source text box. This pops up the Source Picker menu
arranged in numerical order, see
Figure 191 .

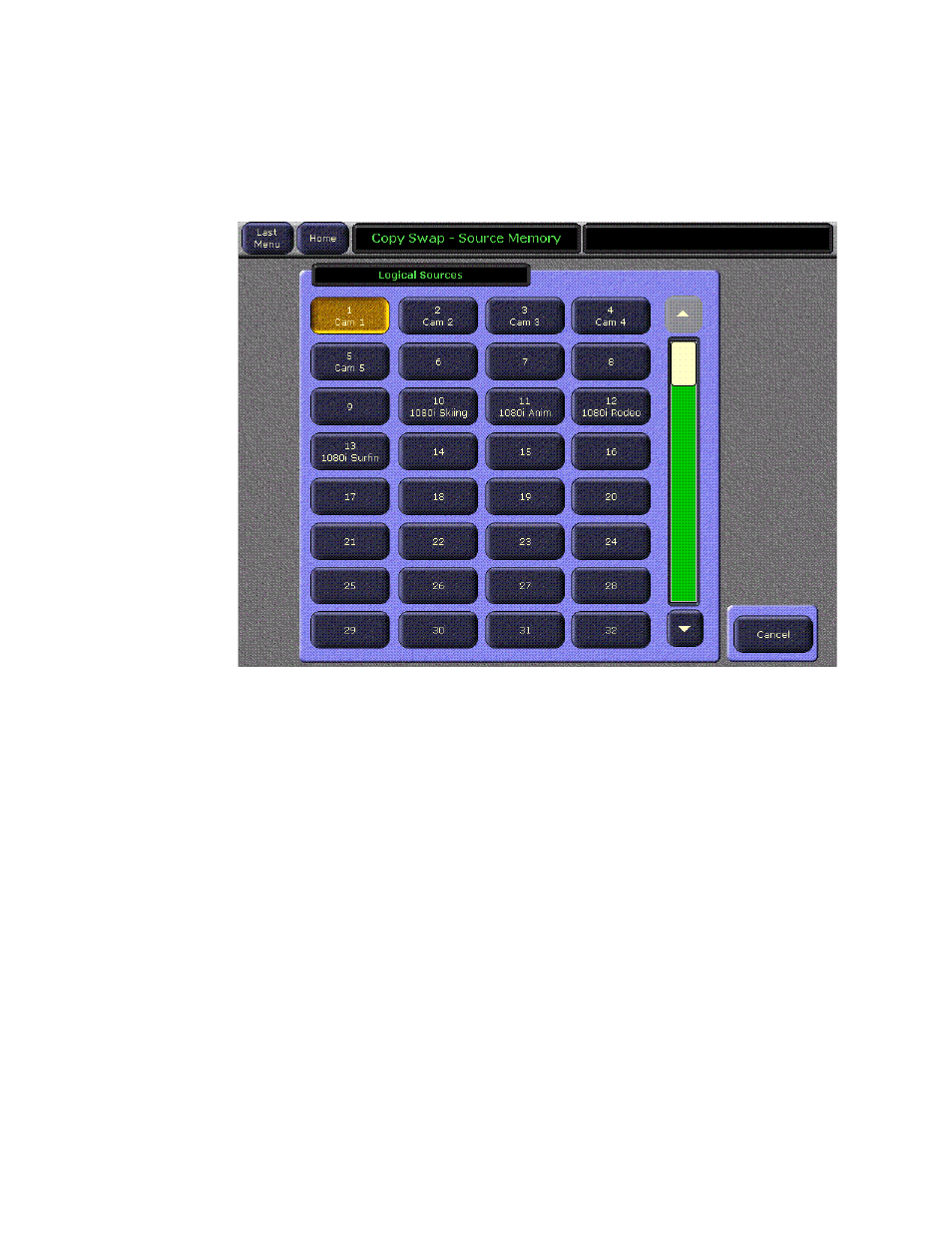

Figure 191. Copy Swap Source Picker Menu
Copying or swapping of keyer parameters applies only to like types of
keying.
The key type buttons are simple on/off buttons (not radio buttons),
meaning the user may copy/swap any or all of the parameters for multiple
key types in a single operation. When the user selects a different M/E or
keyer, the key type buttons automatically default to the setting in the
working buffer. Since the working buffer will only have a single keying
type selected, then the default key type configuration displayed on this
menu will always be a single keyer level on. However, the user may turn
on additional key types and override the default.
In the To pane there is a Default button. If this button is selected, the From
key selectors and source selector, gray out, because the source for copying
is the set of defaults written in the engineering setup rather than specific
bus, keyer, and input source memory. The
Swap button grays out. The
transfer of default parameters go only one direction, from default storage
to source memory.
