Zodiak — User Manual 111
2.5-M/E and 3-M/E Main Panel
Transition Subpanels
Each M/E on the Zodiak system, is functionally identical and provides
complete mix, wipe, and keying capabilities. The Transition subpanel con-
trols these compositing operations for each M/E and PGM/PST (or M/E 3
in a 3-M/E system).
Each transition subpanel actually incorporates five transition systems.
Each subpanel has one set of main transition controls, and also has indi-
vidual mix transition controls for each of the four keyers (
Figure 77 ).

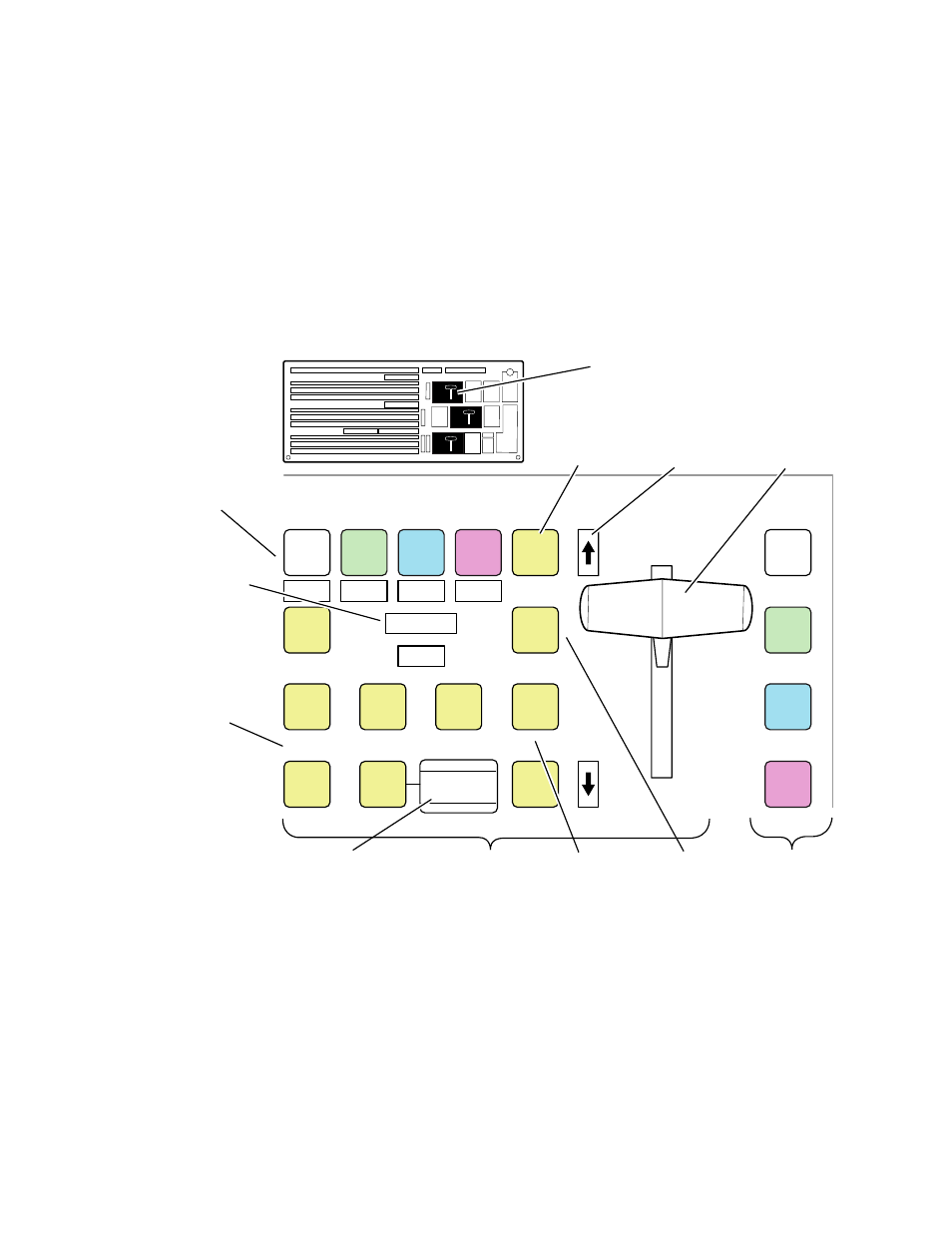

Figure 77. Transition Subpanel
Key
4
Key
1 2
Key
3
Key Key
Prior
Dsk
Link Bkgd
Mix Wipe User
Tran Tran
PVW
Cut Auto
Tran
Preset
Black
Mix
Key 1
Mix
Key 2
Mix
Key 3
Key 4
Mix
On On On On
Uncal
Effects Send
Transition
0000
Transition
Subpanels (3)
Transition
Lever Arm
Lever Arm
Position Arrows (2)
Key Priority
Button
Transition Elements
Button Group (7)
Transition Type
Button Group (4)
Effects Send
Indicator
8126_00_09_r1
Main Transition Controls
(4 Groups and Lever Arm)
Other Transition
Controls (2)
DSK Link
Button (3-M/E Only)
Transition
Rate Display
Keyer Mix Transition
Controls (4)
