Zodiak — User Manual 263
E-MEM Menus
E-MEM - Register Ops Menu
The Register Ops Menu has a status pane on the upper left, a Function pane
on the left, an Enable Group pane center left, and a Number Keypad on the
right (
Figure 185 ).

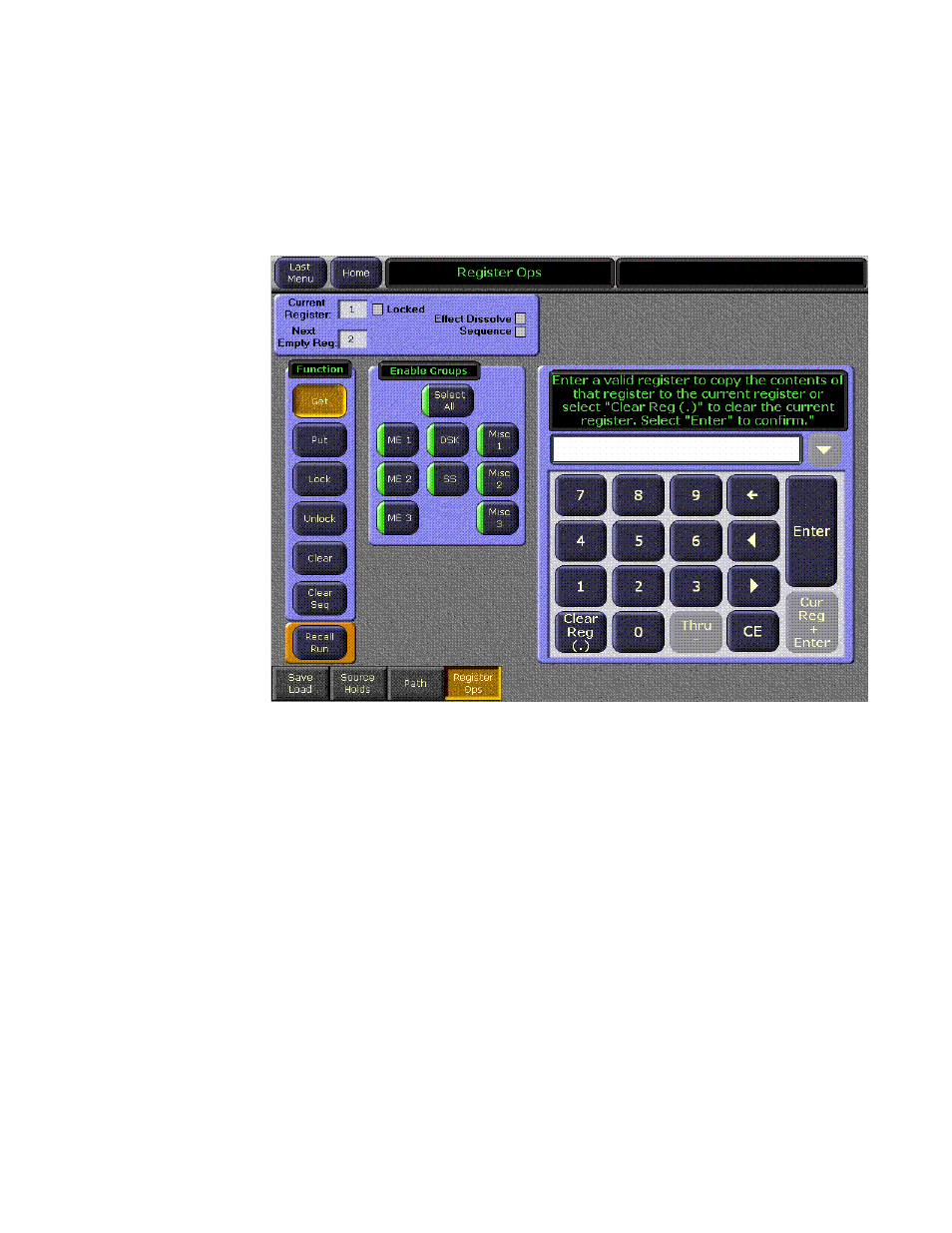

Figure 185. E-MEM Register Operations Menu, Get Selected
An Input Mode pane also appears for some functions ( Figure 186 on
page 265 )
Register Status
The upper left pane shows the status of the current register. The current
register number and next available register are shown, and whether the
register is Locked or involved in an Effects Dissolve or Sequence is
reported.
Function Pane
The buttons in the Function pane select which actions are enacted with the
keypad. These functions are the same as those available on the Main panel.
The Get button copies the contents of the enabled levels of the specified reg-
ister to the current effect register.
