Zodiak — User Manual 375
File Operations
4. Be sure to select the correct Entry Mode, either Register or Bank , on the
lower left.
5. Enter the desired range of registers or banks on the keypad, using the
Next and/or Thru buttons, then touch Enter .
6. Touch Save . The range displayed in the Registers data pad will be saved
to the target location.
Loading E-MEMs
E-MEMs are loaded using the same methods as above, by touching the Load
button instead of Save.
CAUTION The Load button immediately replaces existing E-MEM register data with the
new E-MEM data. While this does not directly affect the work buffer, as soon
as the register runs to the next keyframe or is recalled the work buffer will
reflect the new data, and so can change the Zodiak system program output
signals.
One additional method of loading E-MEMs is available, that permits
loading registers with an offset.
Loading E-MEMs to a Different Set of Registers
1. Go the E -MEM Save-Load Menu.
2. Navigate to the desired destination directory and/or create a new
folder for the file using the buttons in the upper right.
3. Touch the Enter Reg(s) button, then touch the Register(s) data pad. A
keypad appears allowing the entry of a range of registers or banks.
4. Touch the Start Reg button so its green indicator illuminates. A Load To
data pad appears ( Figure 266 ).

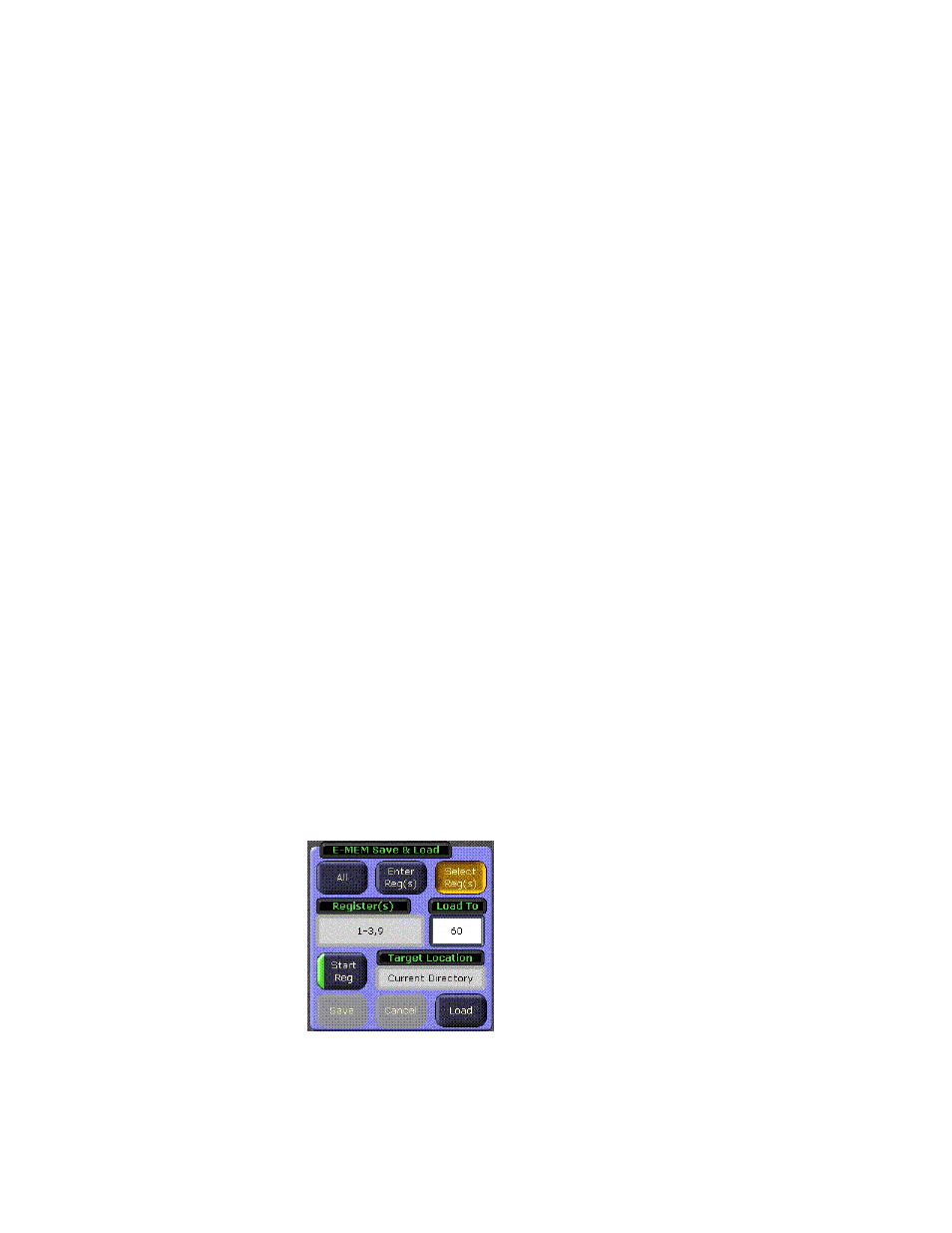

Figure 266. File Operations Register(s) and Load To Text Entry Boxes
