354 Zodiak — User Manual
Section 5 — System Operation
3. Scroll the Button list in the central pane and touch the unshifted or
shifted button to be mapped.
4. Scroll the Sources list on the right and touch the desired Zodiak source
in the right pane.
5. Repeat these steps until all the buttons have been mapped.
6. If you map a source to a button that is currently mapped to another
source, a warning dialog box may appear (
Figure 252 ).

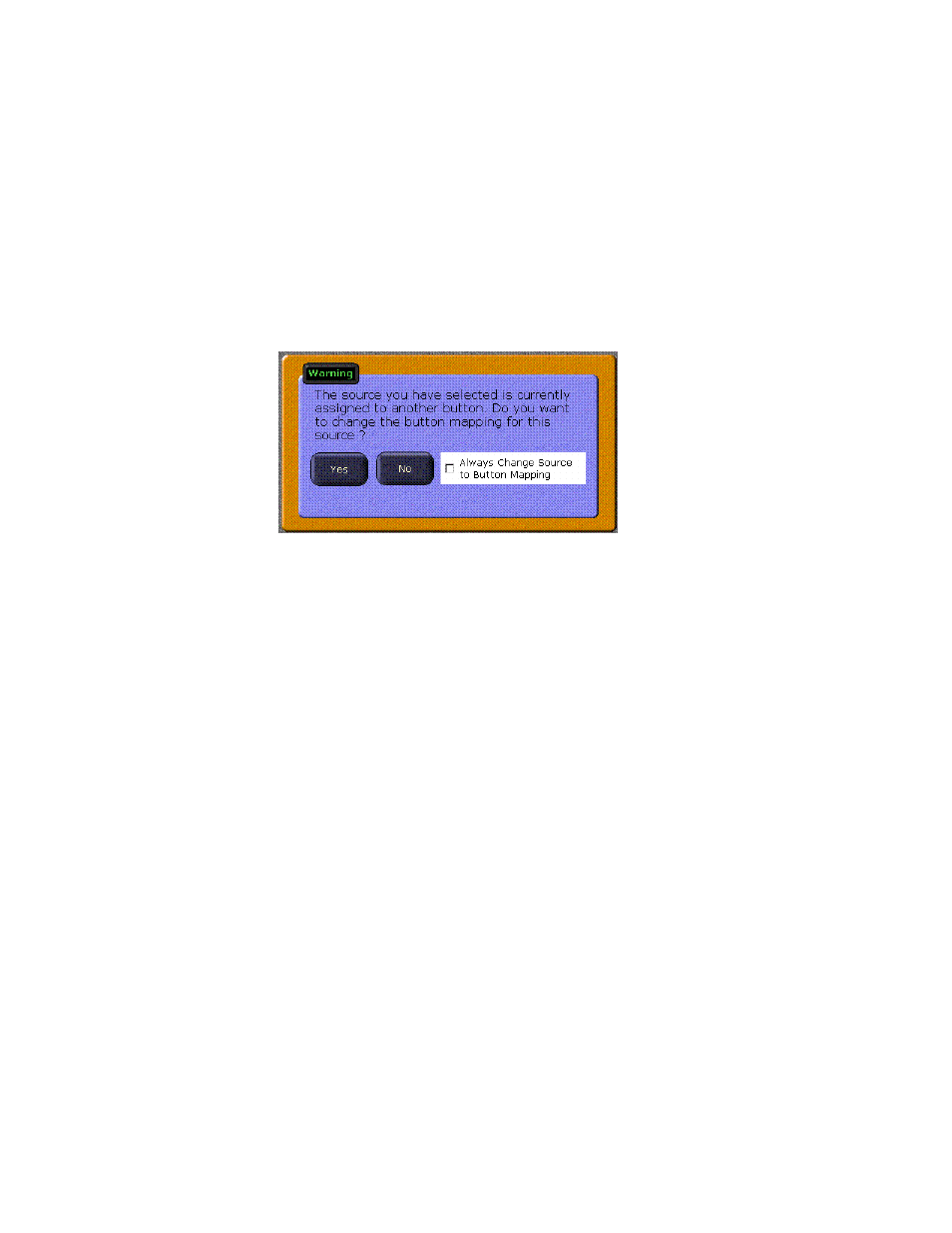

Figure 252. Button Mapping Warning Dialog
• Selecting Yes maps the source to the button. The button originally
mapped to that source becomes unassigned.
• Selecting No clears the window without making any changes.
• Selecting the Always Change Source to Button Mapping check box allows
mapping already assigned sources without bringing up the dialog
box. Resetting the Menu panel automatically clears the check box.
