182 Zodiak — User Manual
Section 4 — Menus Overview
No Shift Mode
You can configure the Zodiak system to have 24 source selection buttons
on the Main panel. In this mode, the farthest right
Shift button becomes a
normal source selector like the other buttons. No shifted sources are avail-
able directly on the M/E bus in this mode. However, any E-MEMs learned
with shifted sources selected can still be used to recall those sources even
if the No Shift mode is active.
Clip Hi Lo Preferences Menu
The Clip Hi-Lo Preferences menu controls how Clip and Gain knobs
behave. The menu is accessed by touching
Daily Setup , User Prefs , Clip Hi-Lo
Prefs ( Figure 120 ).

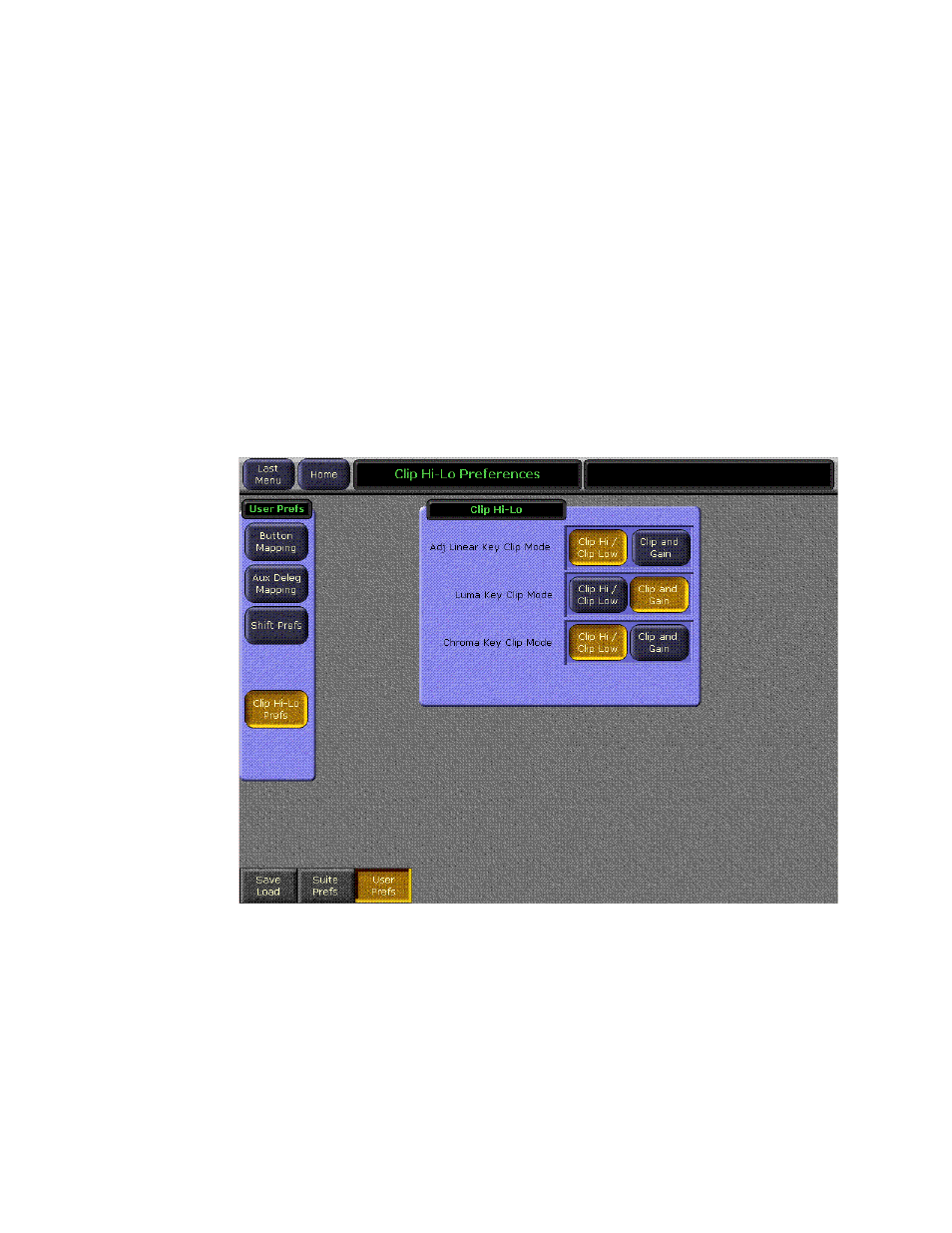

Figure 120. Clip Hi-Lo Prefs Menu
The Clip and Gain knobs on the Zodiak system Main panel and Menu
panel can control either Clip and Gain, or Clip Hi and Clip Low, depending
on the preference set (see
page 54 for background information on these key
controls). Different knob preferences can be applied to Adjustable Linear
Keys, Luminance Keys, and Chroma Keys. The chosen settings for each key
type are applied universally across the Main and Menu panels, wherever
that type of key is used.
Touch the button of the preference you wish to use for the listed key type.
