138 Zodiak — User Manual
Section 3 — Control Surface Description
Master E-MEM Readout Display
The Master E-MEM readout is organized the same as the individual
E-MEM readouts. See E-MEM Readout Display
on page 134 . The Master
E-MEM readout can also display additional level related information, and
shows different prompts for the other Master E-MEM keypad prefix func-
tions (
Figure 88 ).

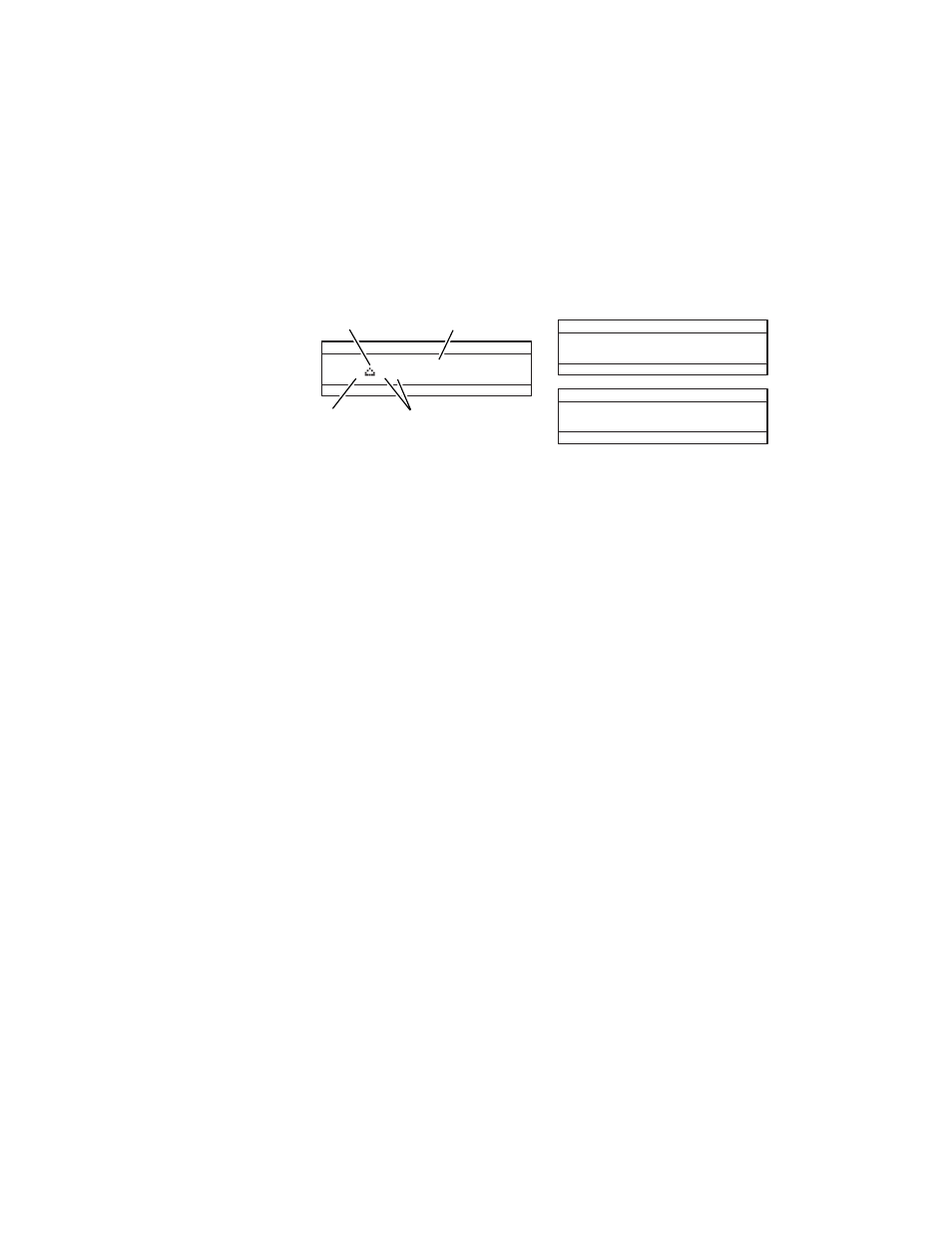

Figure 88. Master E-MEM Readout Display
If there is more than one current effect register (different E-MEM levels
were independently recalled from different registers, also called a skewed
effect) a triangle symbol is displayed between the current bank number and
the current register number. The locations of the contributing registers can
be determined by turning on one enable at a time.
Run Control Buttons
Effects stored in E-MEM can be run using the Run button or doing an Auto
Run Recall. The four Run control buttons provided in the Master E-MEM
keypad for running effects as described below.
Run Button
The Run button initiates the running of an effect from the current cursor
location. Run also acts as a toggle to stop a running effect and then start it
again from its stopped location. If the cursor is at the end of an effect when
Run is pressed, the effect will automatically rewind and then run.
Stop Next KF Button
When the Stop Next KF button is on, subsequent effects runs will stop at the
next keyframe encountered. With this feature on, you can step keyframe by
keyframe through an effect by pressing the
Run button repeatedly.
Rev Button
When the Rev button is on, subsequent effect runs will proceed backward,
from the end of the effect to the front. This button does not affect editing
operations. For example a
Go To Next action does not reverse direction when
the Rev button is on.
B2 23 Name
Get From 18
Put To 15
0618_01_67_r1
Skewed
Effect Indicator
Selected
Bank Number
Current Effect Name
(First 9 Characters)
Current
Effect Number
Put and Get Prompts
