Zodiak — User Manual
Section 3 — Control Surface Description
Key Buses
The Key buses in each M/E and the PGM/PST are delegated to the avail-
able keyers by the Key Bus Delegate subpanels in each section of the panel
as described below.
When a Keyer is selected in a subpanel, the currently selected source for
that Keyer will light on the Key bus. Selecting a different crosspoint will
change the key selection.
Selecting the
Util
button delegates the Key bus to be the Utility bus source
selector. A crosspoint selected on the Utility bus can be used as a key signal.
Selecting the
Macro
button delegates the Key bus to be a set of macro func-
tion buttons.
The Key source selector buses in M/E 1 and 2 are delegated six ways to
Key 1, Key 2, Key 3, Key 4, Utility, and Macro. Delegation of the Key bus is
assigned with the M/E Key Delegate Bus subpanel (
)
in each M/E.

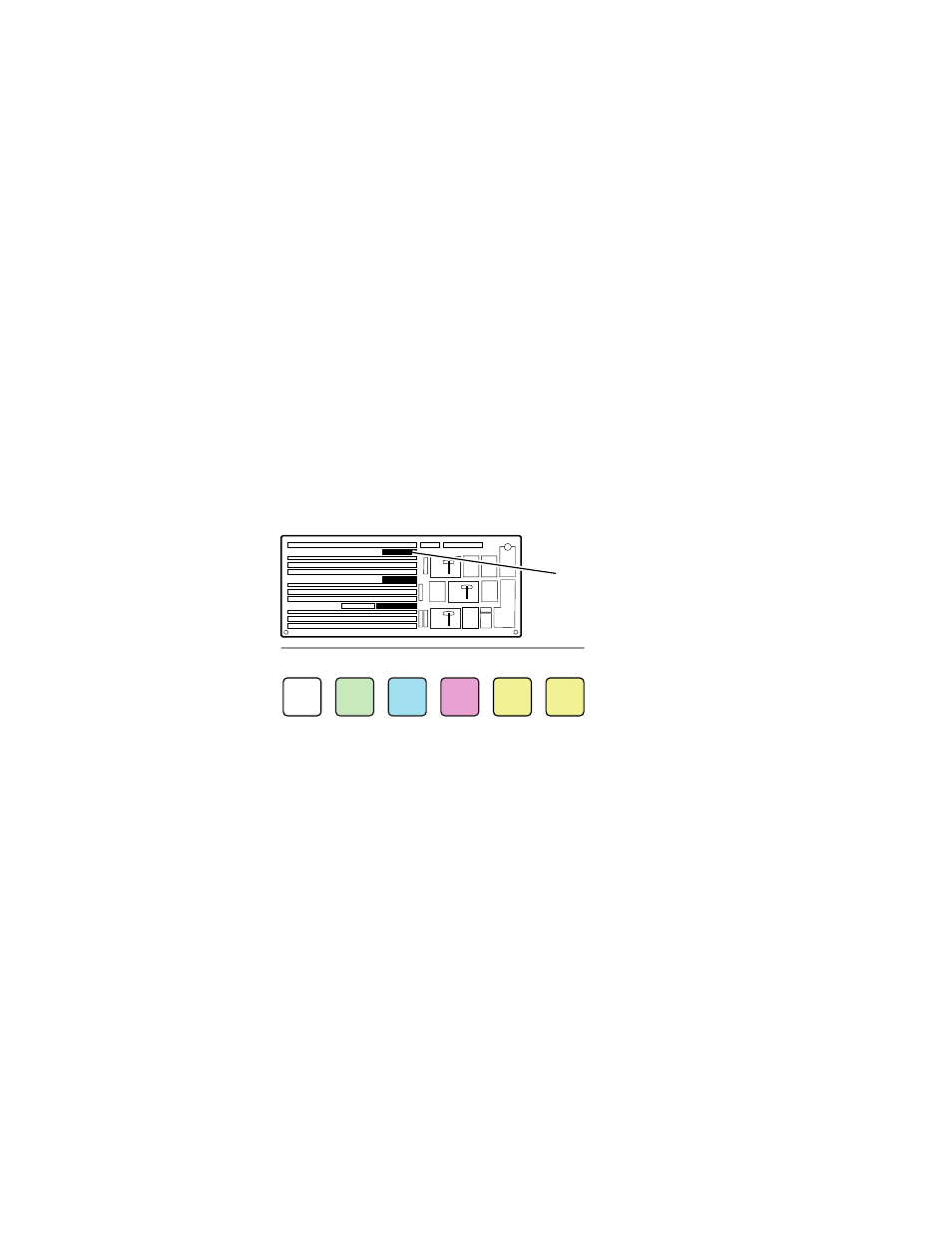

Figure 72. M/E Key Bus Delegate Subpanel
Within this delegation, the row of buttons can be unshifted and shifted in
the same manner as the Background buses. In addition, the cut and fill
signals assigned to a key crosspoint in button mapping can also be split
using the
Key Split
The Key Bus Delegate subpanel in the PGM/PST key row is delegated four
ways in a 2.5-M/E system to DSK 1, DSK 2, DSK 3 and Macro (
).
The Key Bus Delegation subpanel controls the key sources that will appear
on the downstream keyer on the Program output of the switcher.
In a 3-M/E system, the PGM/PST key selector row is delegated nine ways
to Key 1, Key 2, Key 3, Key 4, Utility, DSK 1, DSK 2, DSK 3, and macro
(
). Downstream keyers DSK 1, 2 and 3 can be linked to an M/E
key with the
DSK Link
button in the M/E 1, M/E 2, or M/E 3 Transition sub-
panel. (see Transition Elements
Key
1
Key
2
Key
3
Key
4
Utility
Macro
Key Bus Delegate
Key Bus Delegate
Subpanels (3)
8126_00_06_r0
