Bus Picker
Touching the data pad at the top of either the Controlling Bus or Linked
Bus pane facilitates selecting a bus via a popup bus picker (
).

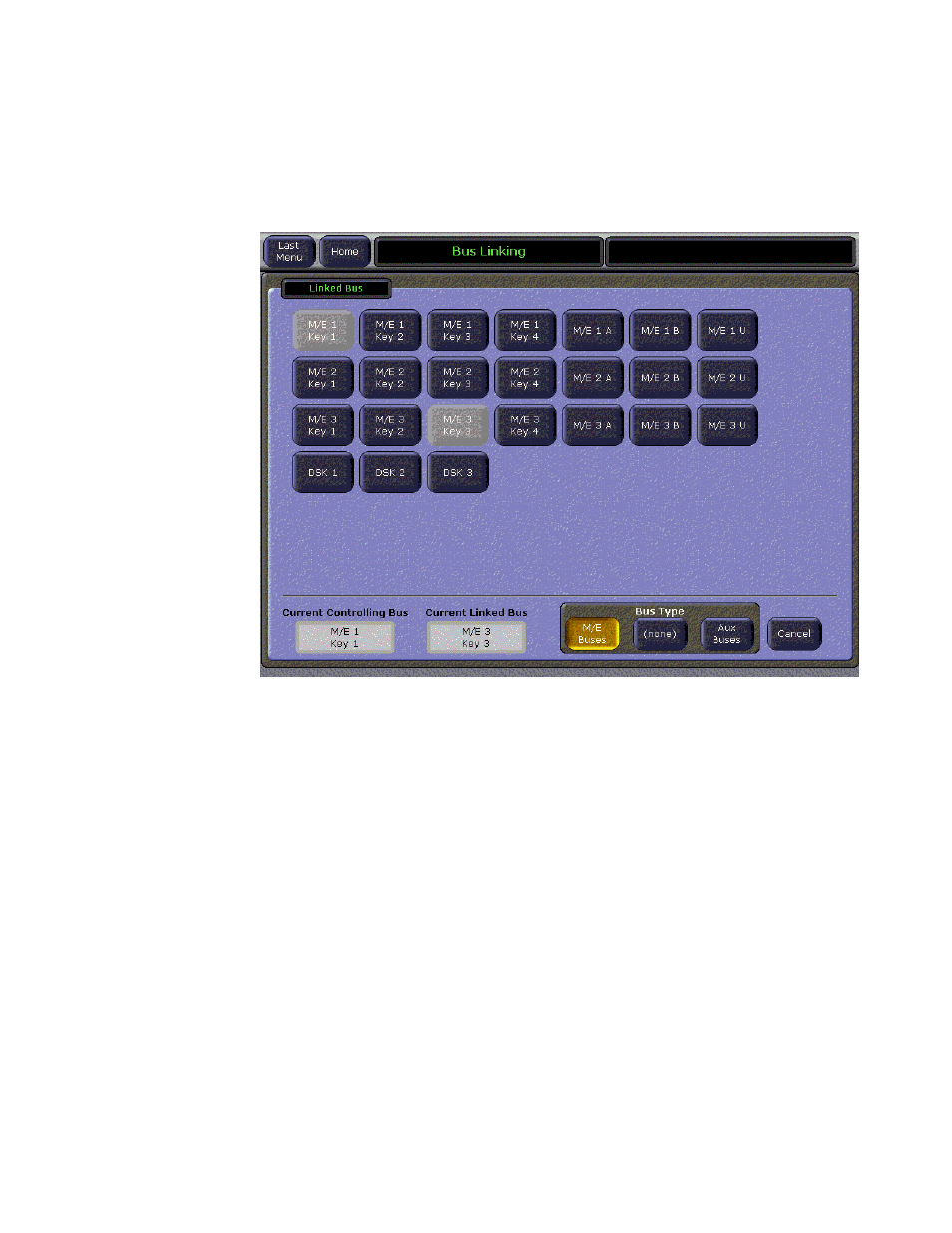

Figure 114. Bus Picker Popup
The type of bus to display (
M/E Buses
or
Aux Buses
) is chosen with the Bus
Type buttons at the bottom of the menu. When a Linked bus has been
selected you can also choose
(none)
to define no bus link. Only valid buses
will be displayed. Unavailable buses (those already linked to other buses)
appear grayed out. Touching a bus button selects that bus for that pane.
When a bus is selected, you return to the previous Bus Linking menu
(
), with the information in the scrolling lists
updated to indicate the current status for the newly selected buses.
Buses are linked by selecting one in each pane and then turning on the
Link Enable
button in the Controlling bus pane. Note that the
Inhibit All Links
button in the lower right corner must also be off for the links to be active.
Bus Linking Restrictions
•
The Switched Preview, Primary Preview, and Still Store input buses
cannot be configured as Linked buses.
•
An Aux bus associated with a DPM cannot be configured as a Control-
ling bus. However, these buses may be configured as Linked buses.
