348 Zodiak — User Manual
Section 4 — Menus Overview
Pattern Modifiers Menus
The three other touch pads in the C1 or C2 Generator window bring up the
available wipe pattern modifiers. The soft knobs on the left of the screen are
used to control the various parameters. The knobs that appear will differ
depending on the type of pattern modifiers chosen.
Pos , Rotate , Repeat , Split , Aspect – Allows control of the pattern positioner, the
rotation and speed functions, the split and aspect functions and the repeat
(H and V Multiply) functions (
Figure 246 ). Modifier parameters are con-
trolled with the soft knobs on the right of the screen.

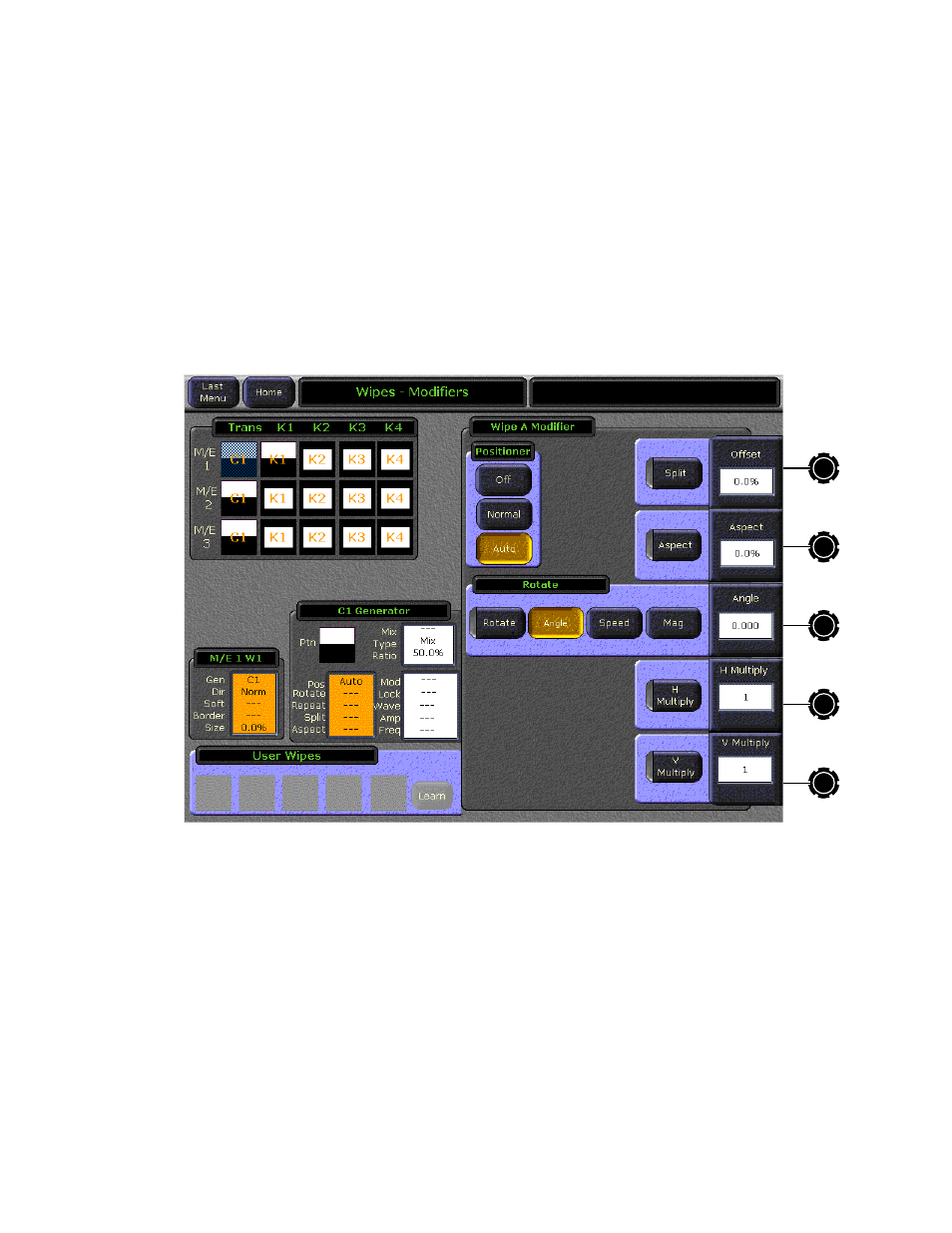

Figure 246. Pattern Modifiers Menu – Pos, Rotate, Repeat, Split, Aspect
