The PVW button in the delegation group permits switched preview source
selection on the primary PVW/AUX bus. When the PVW Primary button on
the Main panel’s Preview subpanel is selected, the output of this bus is
routed to switched preview (see Preview Subpanel
on page 110 ), and you will
be able to see the sources change as they are selected on the PVW/Aux
panel. Changing selections on this bus when the
PVW Primary button is not
selected on the Preview subpanel will still change the output of the bus, but
it will not be visible on switched preview since it will be displaying another
source specified on the Preview subpanel.
The Still Store button permits selection of sources to feed to the Zodiak Still
Store inputs.

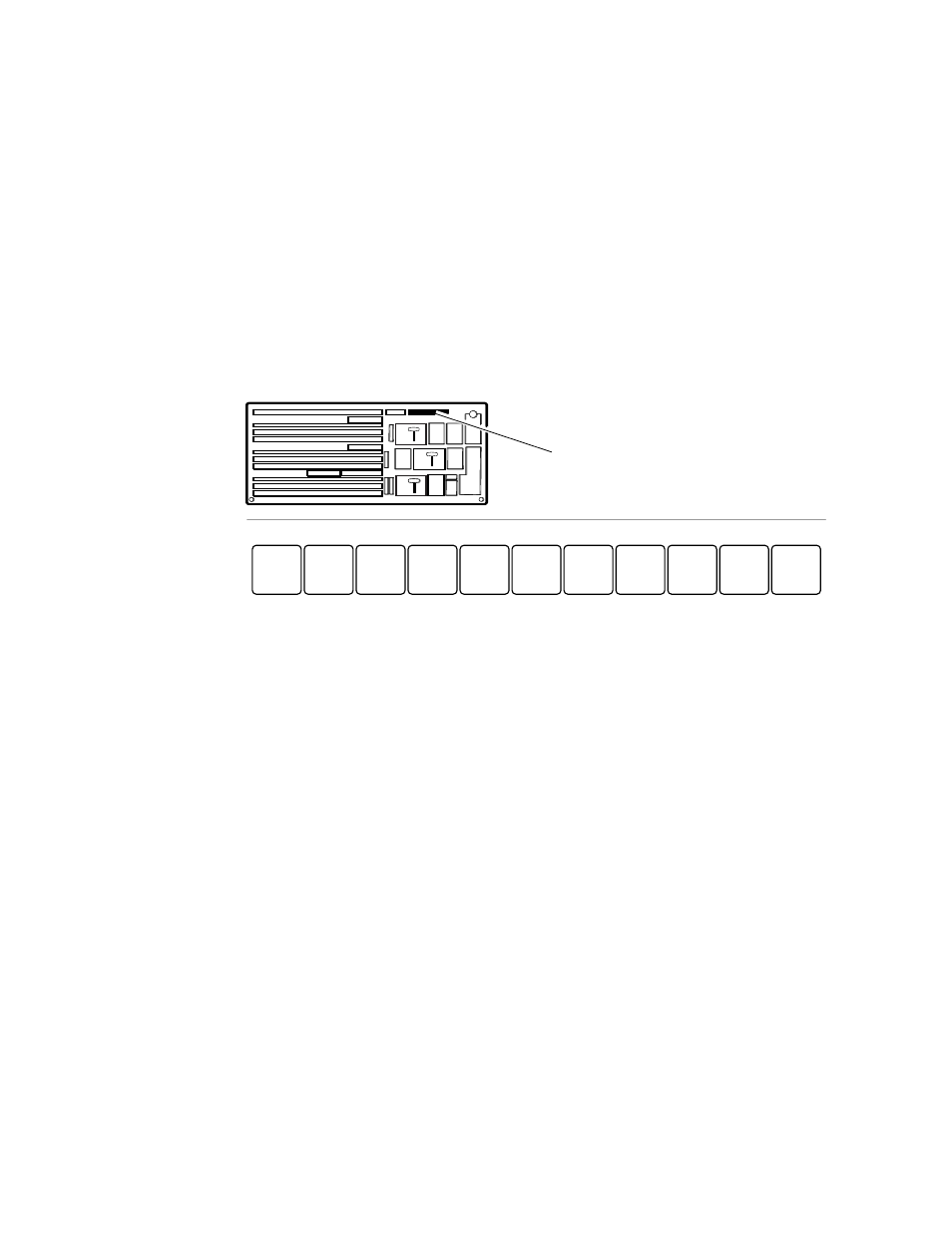

Figure 74. PVW/AUX Bus Delegation Subpanel
Aux
1
Aux
2
Aux
3
Aux
4
Aux
5
Aux
6 7
Aux
8
Aux Aux
9
PVW Still
Store
Bus Delegate
Aux Bus Delegate
