30 Zodiak — User Manual
Section 1 — System Overview
Zodiak Facility Example
A basic facility configuration example of a Zodiak system is shown in
Figure 6 . Numerous types of sources can be fed to the Video Processor
frame. Each M/E, Keyer and Utility bus has internal video processing
capability to correct color (including optional RGB color correction) and
add effects. In addition to the optional internal Transform Engine capabil-
ities available on each keyer, this facility also utilizes an external DPM
system configured for Effects Send.

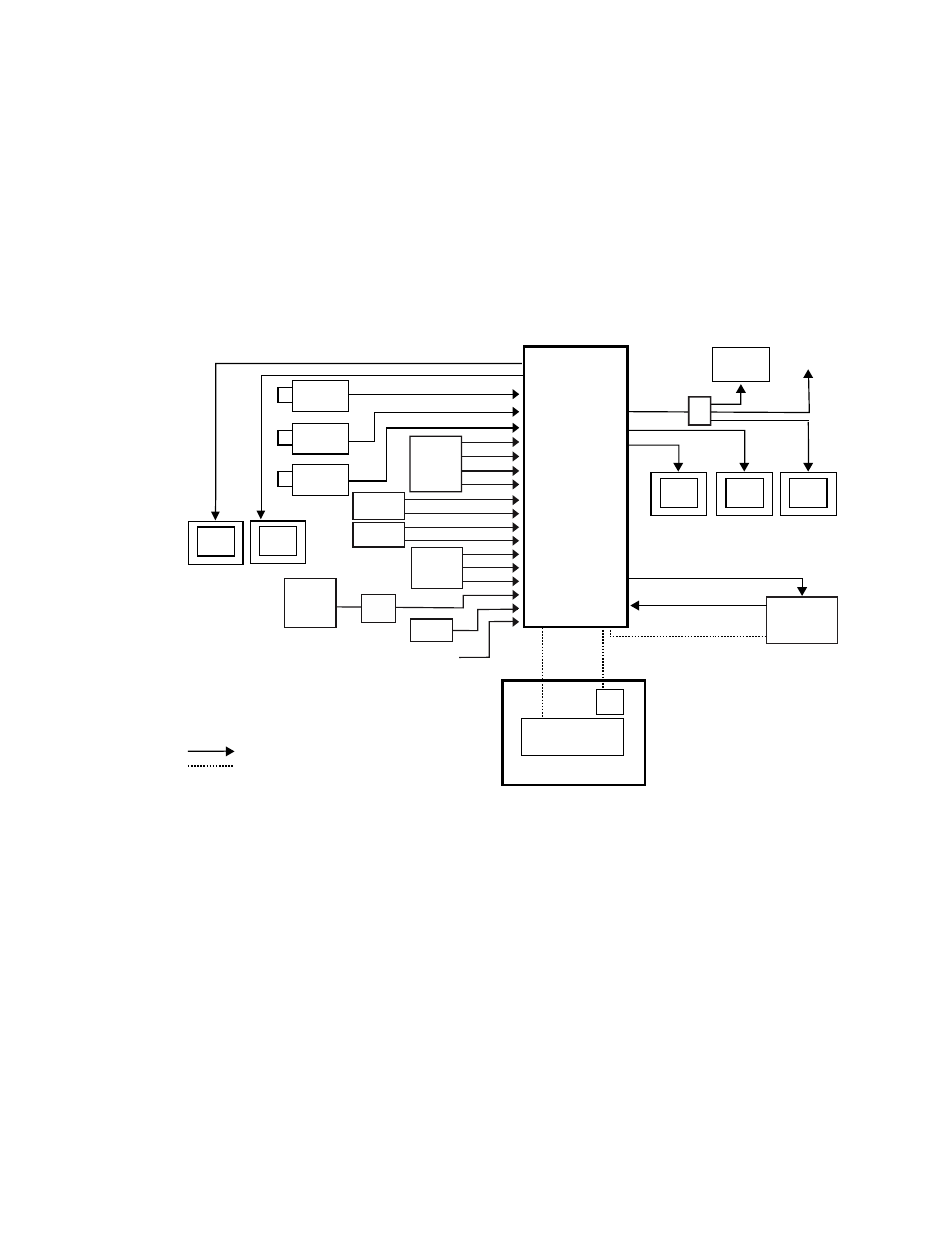

Figure 6. Basic Facility Configuration Example
