460 Zodiak — User Manual
Appendix — Still Store Loader
Selecting the Zodiak Stillstore Device
The first time you use Still Store Loader, you will need to select the network
address of the Zodiak Stillstore location on the network. This is the same IP
address as the Zodiak Video Processor frame.
1. Go to the main application menu.
2. Click on the Upload/Download button to display the Image Transfer dialog
box ( Figure 304 ).

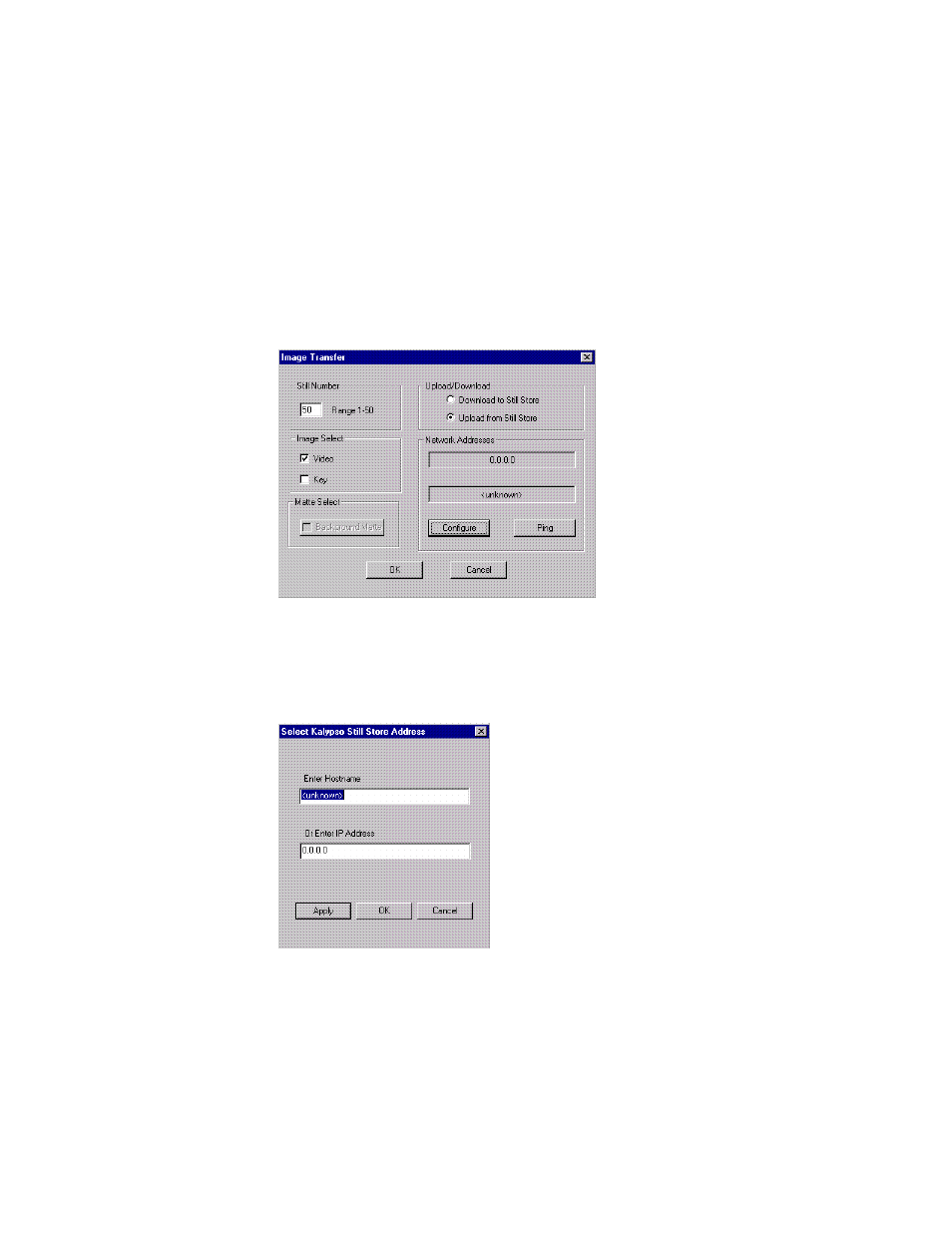

Figure 304. Image Transfer Dialog Box
3. Click on the Configure button. The Select Kalypso Stillstore Address
dialog box appears ( Figure 305 ).
Figure 305. Select Address Box
4. Enter the Hostname or IP Address of the Zodiak Video Processor
frame. The Stillstore circuitry is located on the Control
Processor/DSK/Still Store module. If the Hostname or IP Address is
valid, clicking
Apply updates the corresponding data in the other field.
Entering new data into either field automatically blanks the other field.
