Zodiak — User Manual
Section 3 — Control Surface Description
Preview Subpanel
The Zodiak preview system consists of one preview output from each
M/E, two preview outputs from PGM and PST (Preview A and Preview B),
and a switched preview. Preview A and B show a DSK preview for PGM
A and B respectively.
The Preview subpanel (
) gives the operator a way to view the
preview outputs on the Zodiak system’s dedicated switched preview
output BNCs. The switched preview output from the switcher can be used
by the operator to preview sources, keys, and effects during production,
and for setting up the switcher before a session.
Selecting the
PVW Primary
or one of the
M/E 1-3
buttons or the
PGM A
or
PGM B
button will send the preview (not program) output signal of that bus to the
Zodiak system’s switched preview output. Only one button can be selected
at a time on this subpanel. The currently selected button will be high tally.

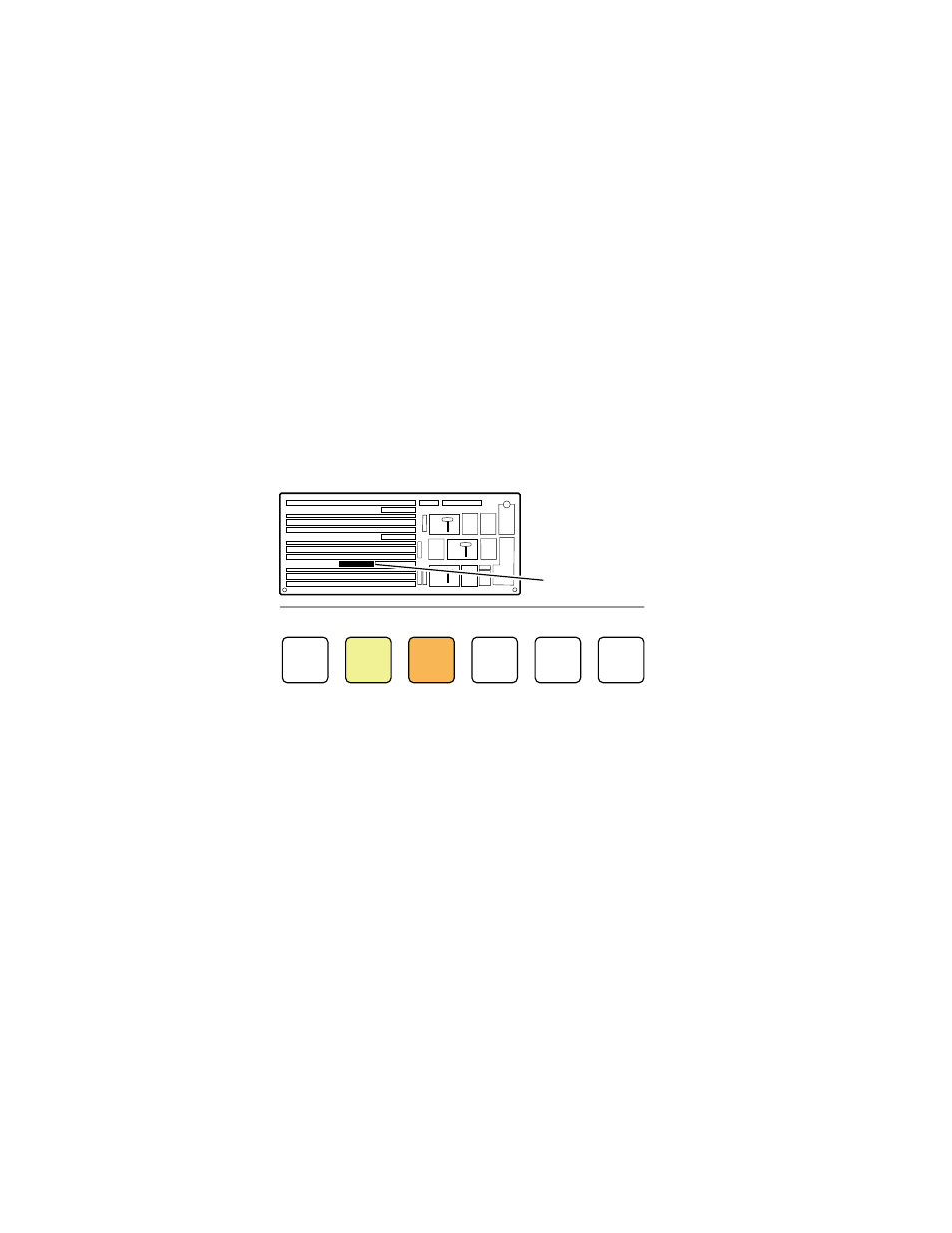

Figure 76. Preview Subpanel
Primary Signal Selection
To view a preview primary source, select the
PVW
button on the PVW/AUX
Bus Delegate subpanel (see Bus Delegation
). Select the
PVW Primary
button in the Preview subpanel. This routes the preview source
selection on the PVW/AUX bus to the switched preview output.
When the
PVW
button is selected on the PVW/Aux Bus Delegate subpanel
and the
PVW Primary
button is selected on the Preview subpanel, the selected
primary crosspoint will high tally indicating the source is the output to the
switched preview bus. Selecting another preview button in the Preview
subpanel will cause the PVW/AUX primary source to low tally indicating
it is no longer the active output to switched preview.
M/E
1
Primary
PVW
Pgm
B
Pgm
A
M/E
2
M/E
3
Preview
Preview
Subpanel
8126_00_08_r0
