R-MEM Save-Load Menu
The R-MEM Save-Load menu is accessed by touching R-MEM , Save Load
( Figure 158 ). This men u is used to save and load Router Memory files. The
R-MEM Save Load menu operates the same as other save load menus. See
File Operations Menus
on page 201 for details.

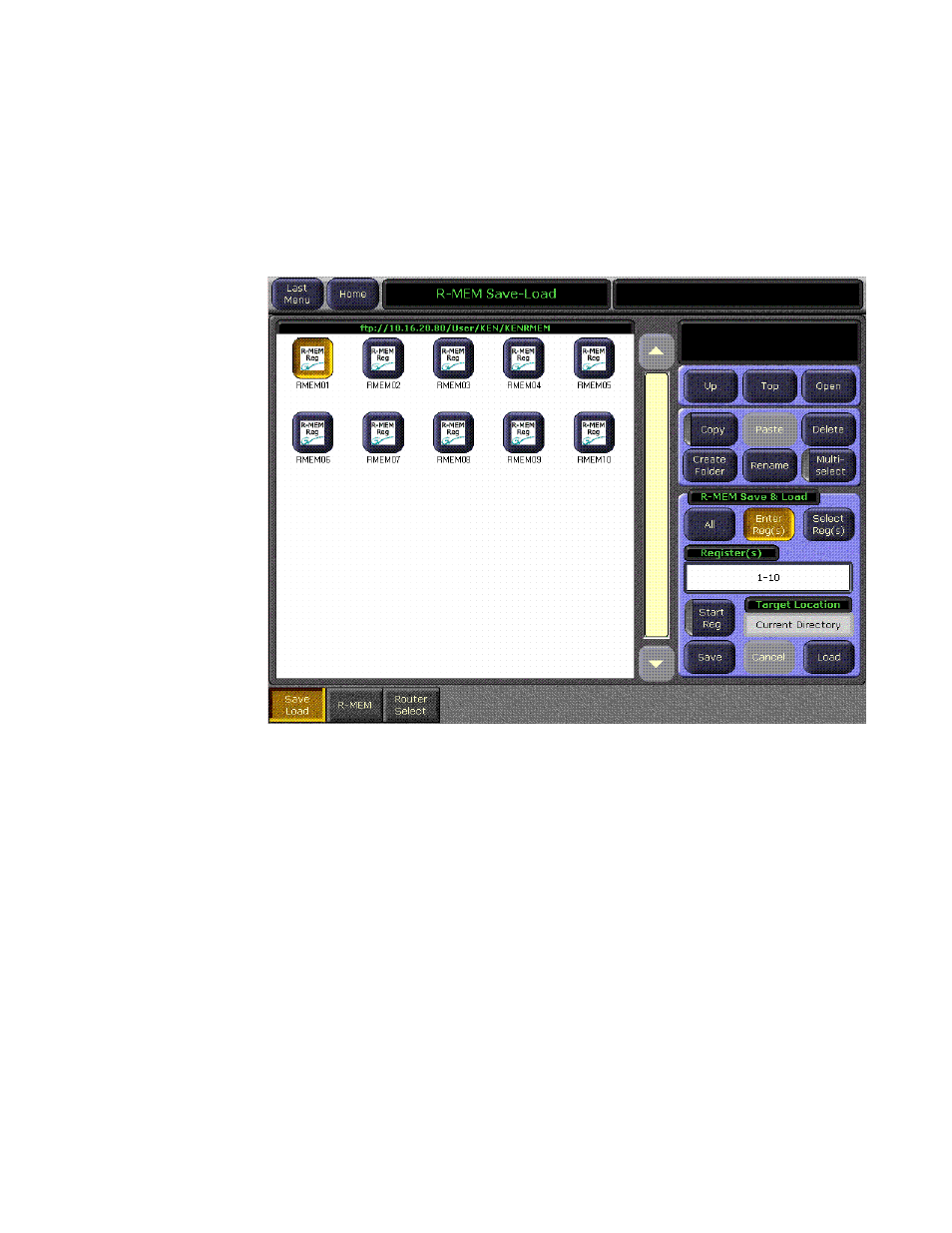

Figure 158. R-MEM Save-Load Menu
PBus2 & GPI Menus
The PBus (Peripheral Bus II) & GPI menus are used to specify the sending
of trigger commands to external devices. GPI and PBus triggers are placed
on keyframes when an effect is created. When working on an effect, this
menu is used to change the working buffer to include trigger commands.
An Insert or Mod must be performed to make these changes part of the
effect. These outputs can be disabled in the Enables category of this menu.
If the device isn't enabled, triggers will not be sent. Devices must be config-
ured in the Eng Setups, Ports & Devices menu in order to be displayed on
these menus.
Note PBus and GPI configuration is covered in detail in Appendix C - External Inter-
faces in the separate Zodiak Installation and Service Manual.
