Zodiak — User Manual 27
System Components
Menu Panel
The Menu panel provides access to additional system controls that gener-
ally do not require real time adjustment. The panel includes a touch screen
display, control processor, five knobs for adjusting parameter values, built-
in cooling fan, and a CD-ROM (
Figure 4 on page 27 ).
The Menu panel can be installed behind, above, or to either side of the
Main panel, and should be oriented so the screen directly faces the oper-
ator. The Menu panel can be mounted using the standard adjustable
console mounting bracket or an optional flush mount kit that allows for
rack mounting or mounting into a console cutout.

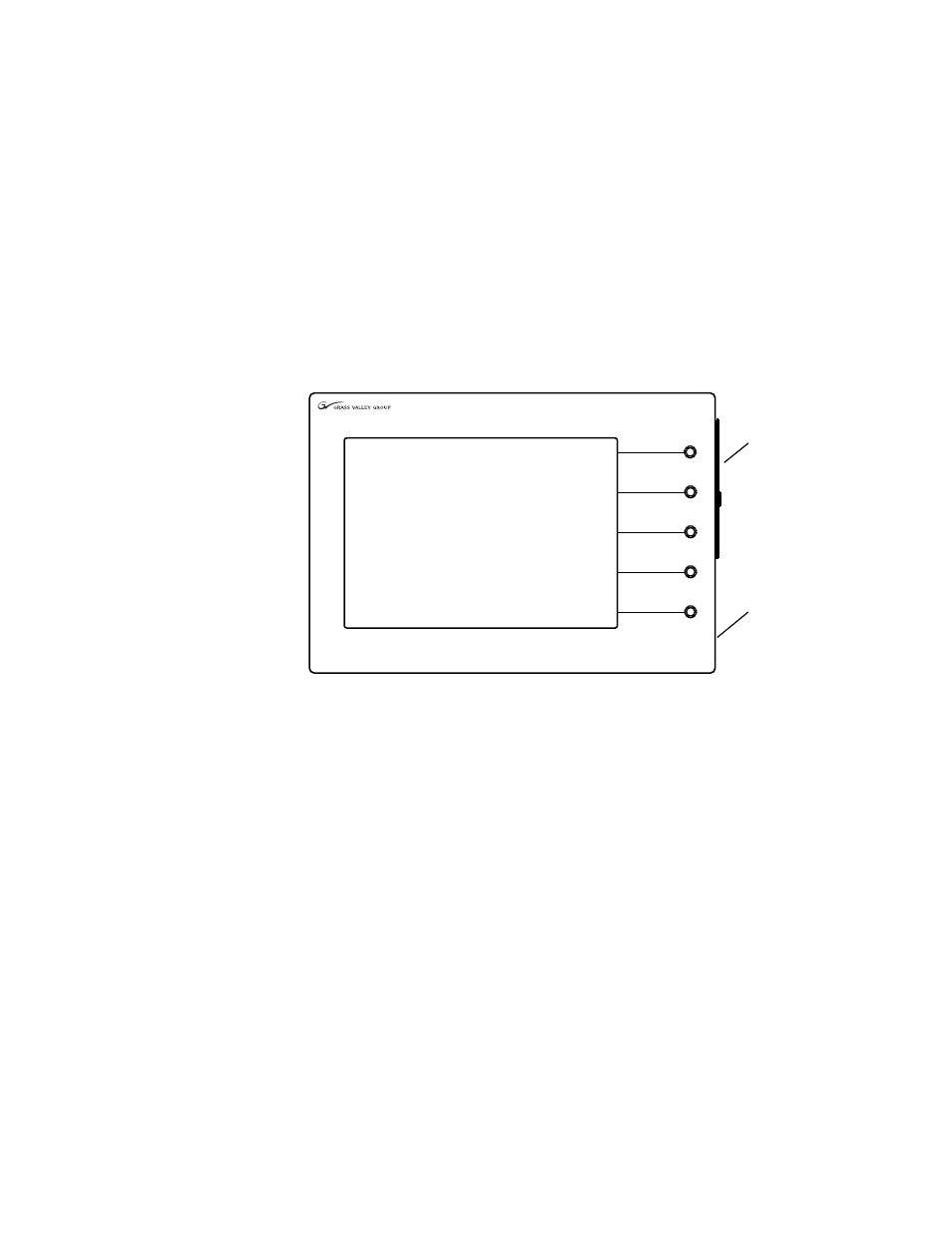

Figure 4. Menu Panel, Front View
Connectors to the Zodiak Main panel, Video Processor frame, an external
Zip drive, and other devices are located on the bottom of the Menu panel.
Panel Options
Remote Aux Panels
Remote Aux panels provide control of selected Zodiak Aux buses from a
remote location. Three 24-Crosspoint and two 32-Crosspoint Remote Aux
panel types are available for Zodiak systems. Any combination of these
aux panels can be used in a Zodiak system. See Section 2 – Installation of the
Zodiak Installation and Service Manual for additional information.
8096_00_03_r2
Fan
CD-ROM
