PBus trigger commands are by default associated with E-MEM level group
Misc 2 . You can associate PBus triggers with any E-MEM level group, not
just Misc 2 . This is done in the Daily Setups, Suite Prefs, E-MEM Prefs menu
(see E-MEM Prefs Menu on page 161 ). To determine what E-MEM level is
currently assigned, select the Enables menu category button in the PBus &
GPI menu to view the Enables menu ( Figure 160 on page 231 ).
When the Learn Recall button in the PBus menu ( Figure 159 on page 230 ) is
active (green light on) under a device name on the left, the E-MEM Learn
and Recall register information from Zodiak is sent out for use by the
peripheral device. When the button is off, just the trigger information is
sent over the PBus to the peripheral device.
Enables Menu
Peripheral Bus II devices and triggers can be enabled and disabled in the
Enables menu, accessed by touching the
Enables category button at the
bottom of the screen ( Figure 160 ). The left side of the menu is used for
Peripheral Bus II control. GPI Out control resides on the right side of the
menu.

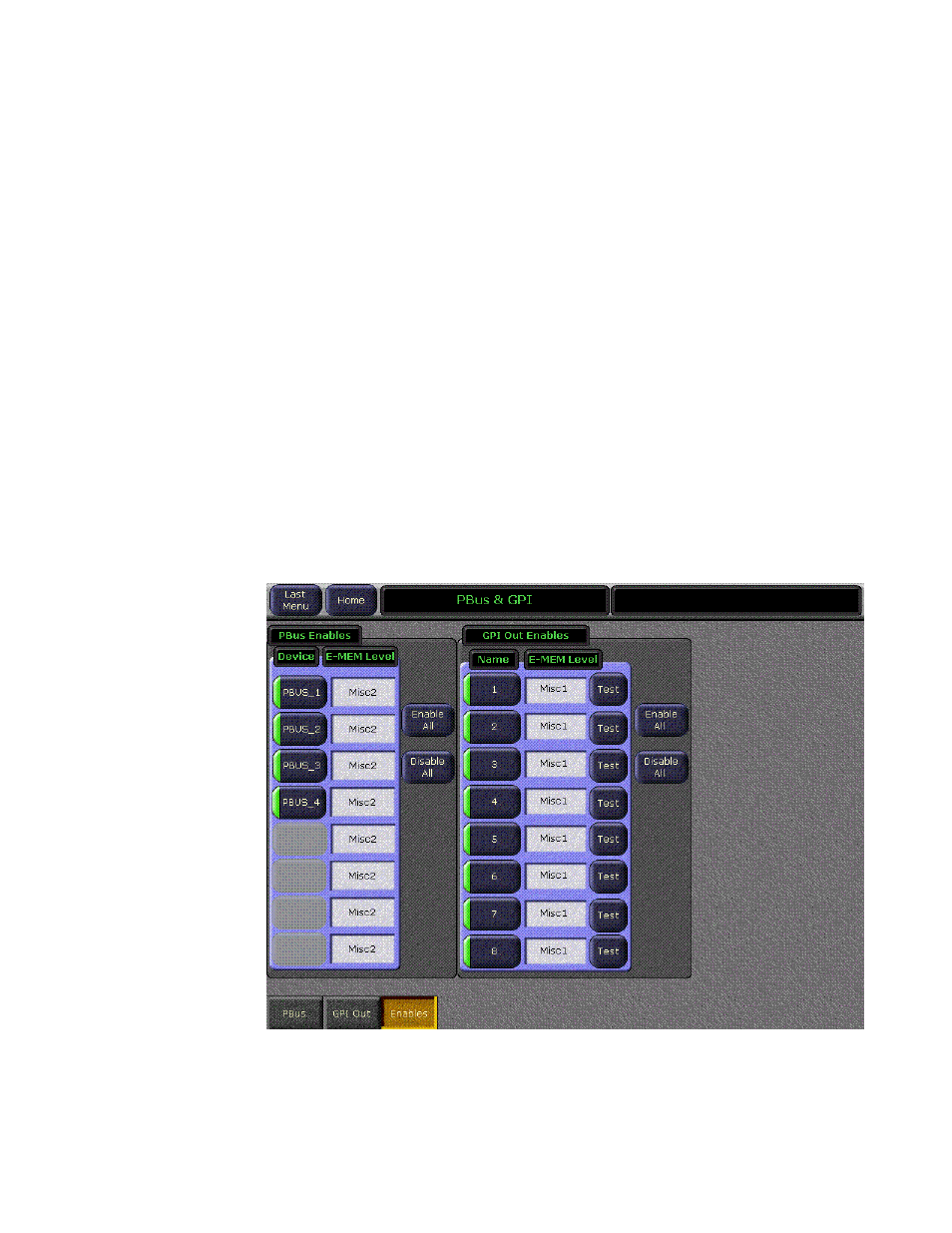

Figure 160. PBus & GPI Enables Menu
Enable All and Disable All buttons allow enabling or disabling all enables for
PBus and GPI outputs. Items that are disabled will not fire, even when pro-
grammed to do so by an effect.
