Zodiak — User Manual 105
2.5-M/E and 3-M/E Main Panel
until the Shift button is turned off. If the user toggles the Shift button to the
state that is opposite of the currently selected crosspoint, the button will
blink, indicating this out of sync shift condition.
In No Shift mode the Shift button acts like a standard source selection
button. In this mode no shifted sources are available on the bus.
Re-entry Buttons
The Re-entry buttons are used to select the output of one M/E for use as an
input source to another M/E. The signals are routed internally. For
example, an output of M/E 1 can be sent to M/E 2 or M/E 3 (PGM/PST),
and an output of M/E 2 can be sent to M/E 1 or M/E 3 (PGM/PST).
The PGM PST KEY M/E re-entry buttons are labeled with additional
macro capabilities (
Figure 71 ). When macro delegation is on ( Macro is illu-
minated), holding down one of these buttons momentarily activates that
macro mode (either Record or Delay).

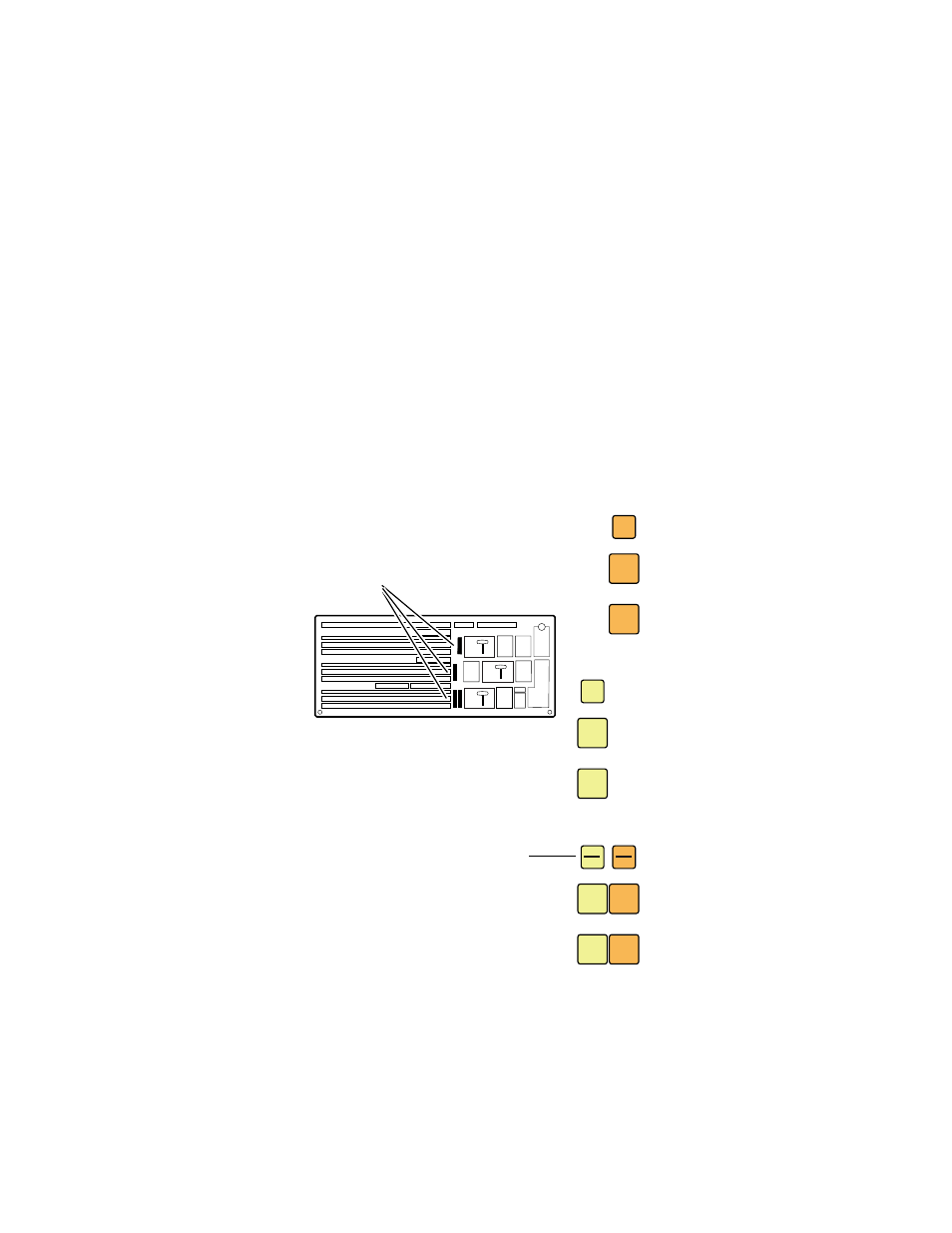

Figure 71. Zodiak System Re-entry Buttons on Main Panel
Background Buses
Pressing a button on an M/E or PGM/PST background A or B bus directly
selects the source mapped to that button, and the source button will go
high tally if on-air, or low tally if not. Crosspoint mapping is identical on
all Background buses.
M/E
1
M/E
2
2
M/E
2
M/E
M/E
M/E
1
1
M/E 2
Delay
M/E 1
Rec
M/E
1
M/E
1
M/E
2
2
M/E
M/E/PGM/PST
Re-entry
Buttons
8126_00_05_r0
Re-entry buttons with
Macro Shortcuts
