208 Zodiak — User Manual
Section 4 — Menus Overview
Enables Device Status
Next to each device button is a status indicator, reporting the state of the
interface to that device.
• A green Avail box indicates the device is controllable from the Zodiak
system.
• A yellow Other User box indicates the device is responding, but is in use
by another control point and has been locked from Zodiak system con-
trol.
• A red box indicates the device is not responding ( No Resp ), or is
responding but has been placed off-line ( Off Line ).
External Device Source Mapping
DPM and Editor Source mapping will map external device IDs to switcher
logical source IDs and back again for status reporting. The maps have to be
unique in both directions so the translation is deterministic and unambig-
uous. DPM and Editor mapping configuration data is saved with Suite
Prefs.
Editor Pane

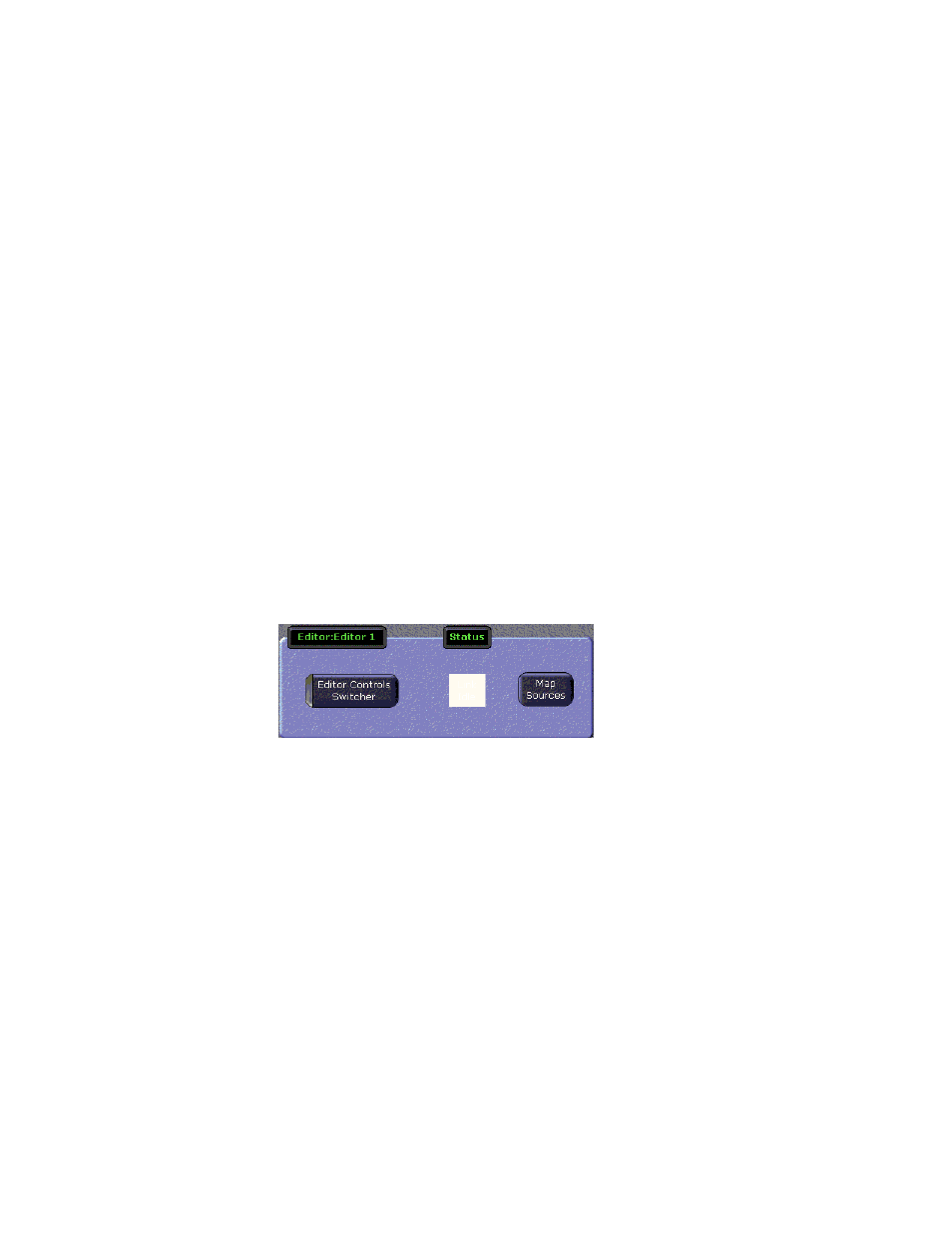

Figure 141. Editor Pane
The Editor Controls Switcher button toggles on and off to indicate whether the
Editor can control source selection on the switcher.
The Map Sources button accesses the External Mapping menu ( Figure 145 ).
This menu will allow the user to map any or all of the Zodiak sources to
editor buttons. The menu does not know how many sources the editor has
