Transform Menus
Splits Mirrors Menu
The Splits and Mirrors effect allows you to divide a picture horizontally
and/or vertically, and create mirror images of the image along these axes.
Touch the
Splits/Mirrors button to access the Splits and Mirrors controls

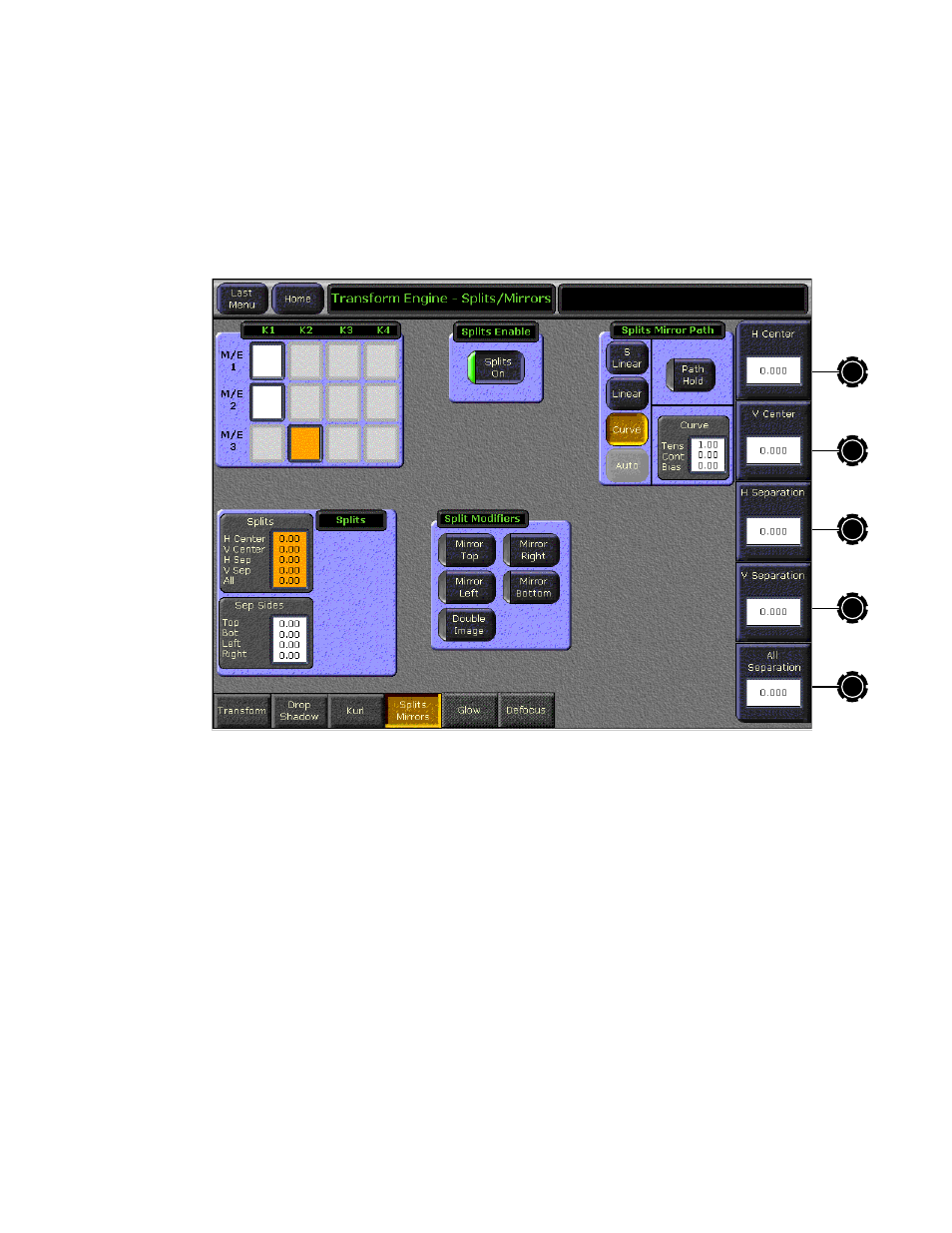

( Figure 216 ).
Figure 216. Splits/Mirrors Menu
Touch the Splits On button in the Splits Enable pane to bring up the fol-
lowing Splits controls:
Splits Pane
When the Splits button in the Splits data pad is selected, the following soft
knob controls are available. (Values are displayed in screen units.)
H Center — controls the horizontal position of the split.
V Center — controls the vertical position of the split.
H Separation — controls the amount of horizontal separation between the
split images.
V Separation — controls the amount of vertical separation between the split
images.
