Zodiak — User Manual
Section 5 — System Operation

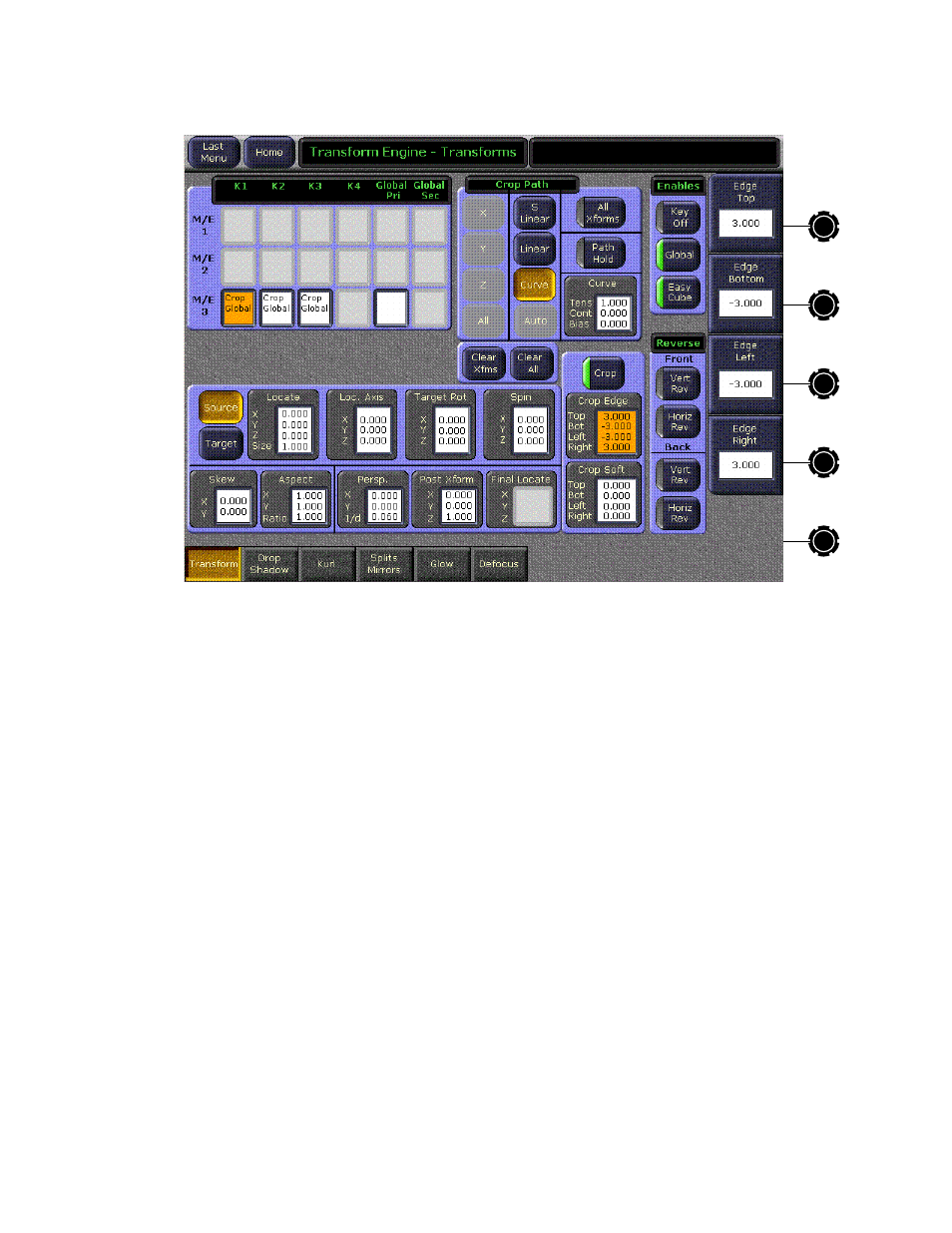

Figure 293. Transforms Menu
9.
Repeat
and
for the other two keyers.
You now need to edit each key Z value to match the negative of the crop
value. The second and third key sides will need to be rotated first.
10.
In the Transform menu, press the delegation button of the first keyer so
only that keyer is delegated for that M/E. Touch
Source
and
Locate
in the
middle pane. This will bring up the
X
,
Y
and
Z
size
data pads on the right
of the screen.
11.
Touch the
Z
data pad to bring up the keypad and type
– 3
(or use the
soft knob) and press
Enter
.
12.
Delegate only the second keyer on the Transform menu, touch
Target Rot
and
X
(on the right of the screen), then type
– • 2 5
on the keypad (or use
the soft knob) and press
Enter
.
13.
With only the second keyer delegated, touch
Locate
,
Z
, then type
– 3
on
the keypad (or use the soft knob) and press
Enter
.
14.
Delegate only the third keyer on the Transform menu press
Target
Rot
,
Y
,
then type
• 2 5
on the keypad (or use the soft knob) and press
Enter
.
15.
With only the third keyer still delegated, press
Locate
and
Z
, then type
– 3
on the keypad (or use the soft knob) and press
Enter
.
