Zodiak — User Manual 125
2.5-M/E and 3-M/E Main Panel
Joystick Subpanel
The Joystick subpanel ( Figure 82 ) is used to control Joystick functions and
delegation and Transform Engine image and wipe pattern placement, size,
angle, and other attributes in conjunction with the Transform menus in the
Zodiak Menu panel application (see (Transform Menus
on page 295 ). The
Joystick is particularly suitable for adjusting position and rotation param-
eters and can also be used to select a color from an image (for example,
chroma key backing color) using an on-screen cursor.

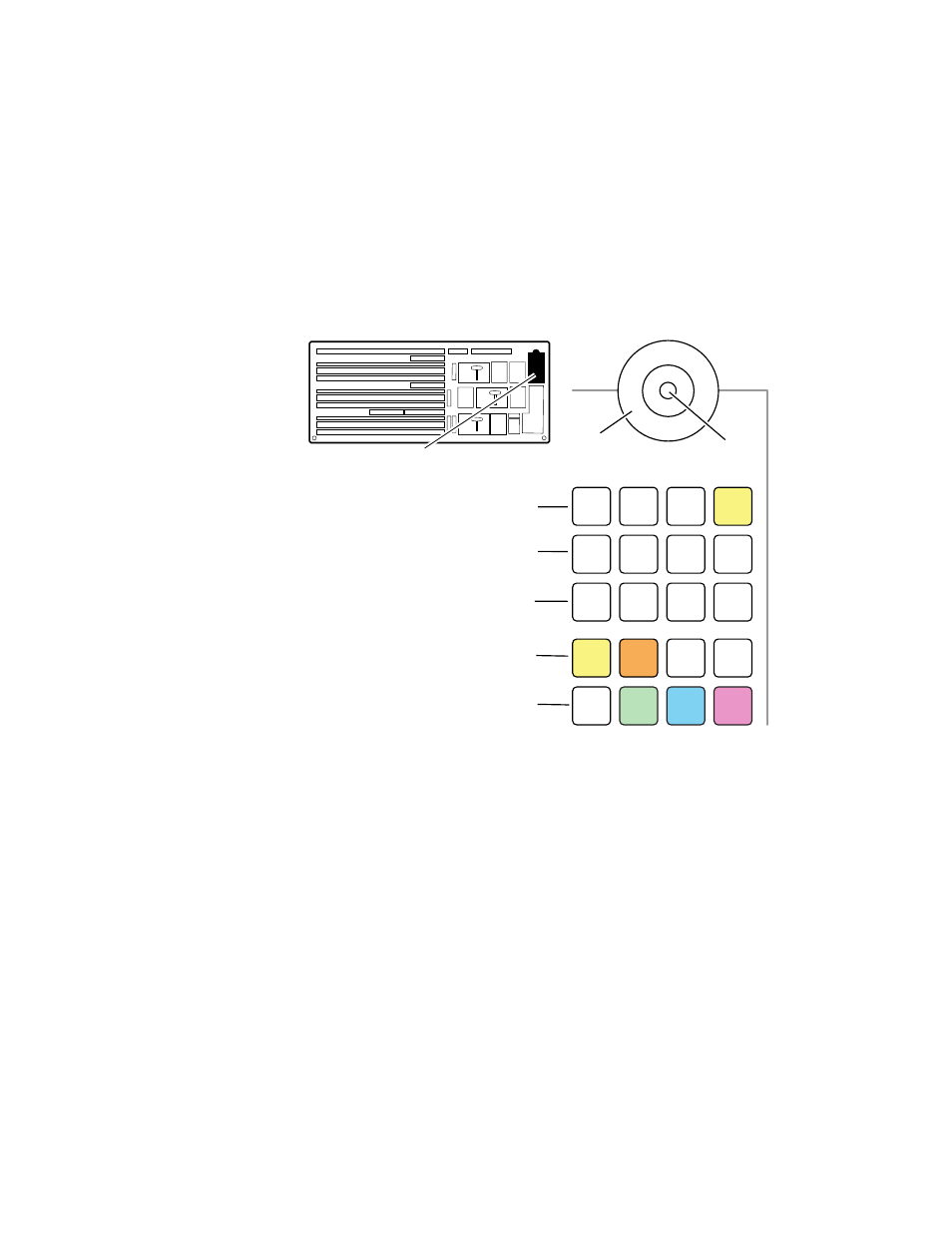

Figure 82. Joystick Subpanel
Operating the Joystick subpanel involves delegating a resource and a set of
associated parameters to the Joystick. The Joystick then provides control of
the delegated parameter values. Parameters can also be delegated to the
Master E-MEM subpanel for exact value entry.
Global
Key
1
Key
2 Key
3 Key
4
M/E
1
M/E
2 M/E
3
Locate
3D Locate
Size Spin Src
Space
Center X Y Z
Int
DPM Key
Wipe C2
Wipe C1
Wipe
Joystick
Subpanel
M/E or Global Delegation
Button Group (4)
Axis Button
Group (4)
Image/Pattern Modification
Button Group (3)
Additional Delegation
Button Group (4)
Joystick
Keyer Delegation
Button Group (4)
Joystick
Button
8126_00_12_r2
