Zodiak — User Manual 109
2.5-M/E and 3-M/E Main Panel
Source Selection Buses
Source selection on the PVW/AUX primary subpanel is identical to the
Main panel. Twenty-three unshifted and twenty-three shifted source
buttons are available on the primary bus. Five additional secondary source
buttons (
M/E 1 , M/E 2 , M/E 3 , PGM A and PGM B ) are located to right of the
source buttons to select the output of M/E 1, M/E 2, M/E 3 (3-M/E
systems only) or PGM A or PGM B (
Figure 75 ).
When an Aux bus is part of an Aux pair, selecting a source on the bus
changes the A Channel source for the pair. To change the B Channel source,
hold down the selected Aux bus delegation button and select the desired
source (also called a key split). Aux pairs are described in Section 3 – Con-
figuration of the separate Zodiak Installation and Service Manual. A and B
Channel source selections can also be made using the Aux Bus menu.

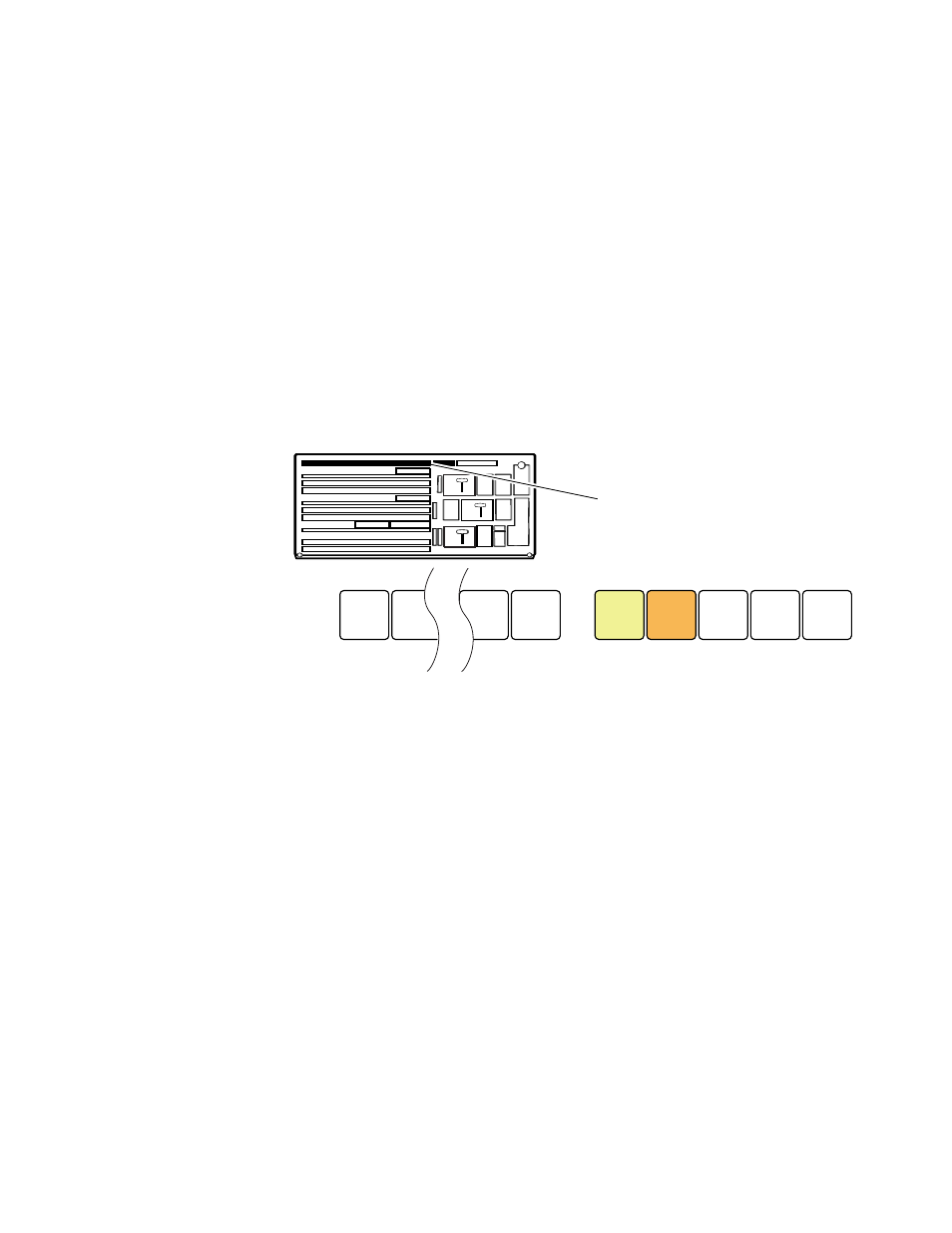

Figure 75. PVW/Aux Primary and Secondary Subpanels
Shift Pvw
Aux 1
M/E
2
M/E
3
M/E Pgm
B
Pgm
A
8126_00_16_r0
Aux Bus Primary and
Secondary Subpanels
