Zodiak — User Manual 311
Transform Menus
Glow Menu
Glow adds a soft edged variable opacity border around keys, leaving the
original keyed image unmodified, and is a standard feature available on all
Zodiak systems. Glow controls are available on the Transform Engine
Glow menu, accessed via
Transform , Glow ( Figure 217 ).
You must turn Effects Send on for each keyer on which you wish to use the
Glow feature. Effects Send can be turned on from the Main panel (delegate
the keyer and use the
Ext DPM button), or with the Effect Send menu (from
the Home menu touch M/E , Effects Send ).
The Glow controls on the menu affect the delegated keyer. Only one keyer
can be delegated at a time (
Figure 217 ).

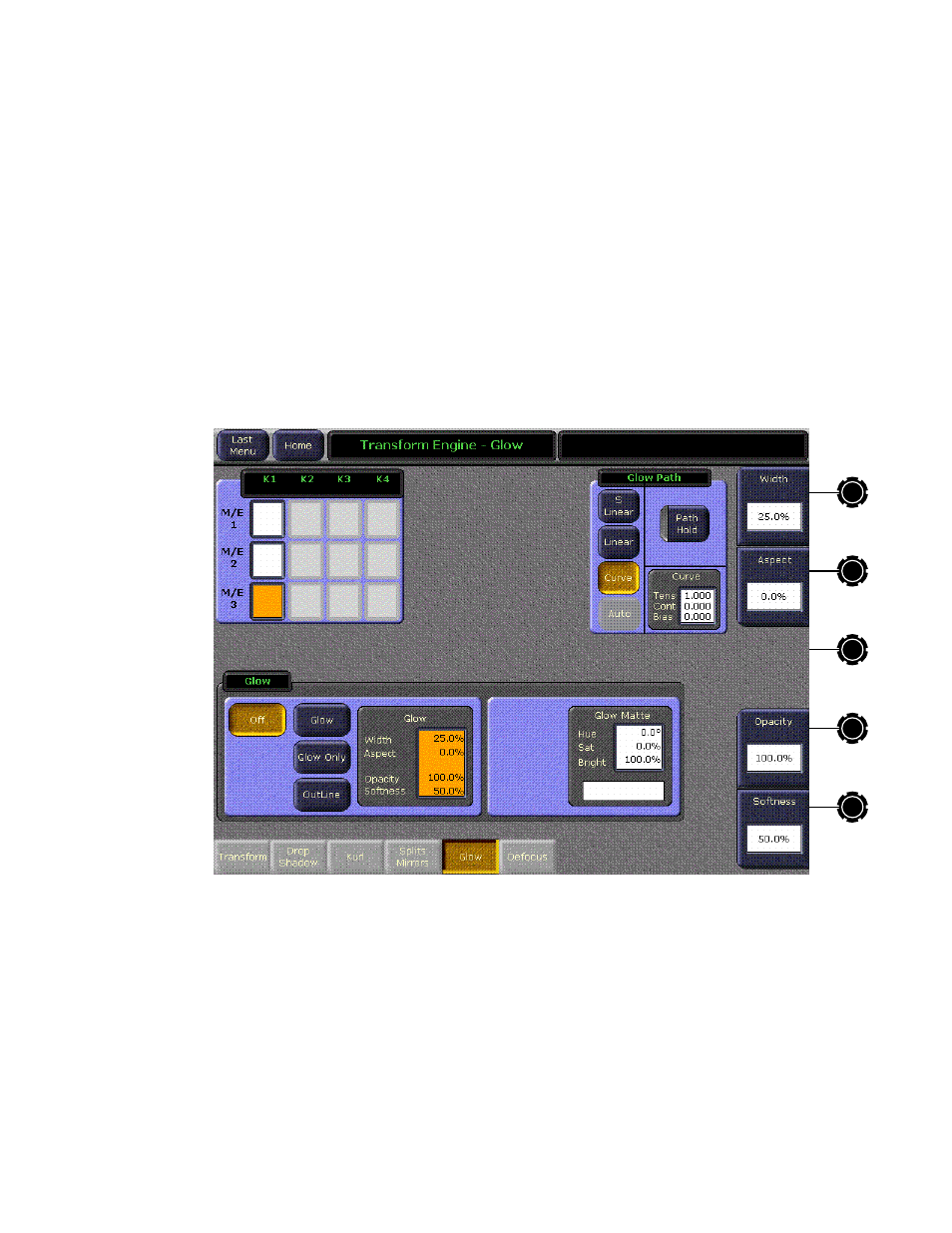

Figure 217. Glow Menu
