210 Zodiak — User Manual
Section 4 — Menus Overview

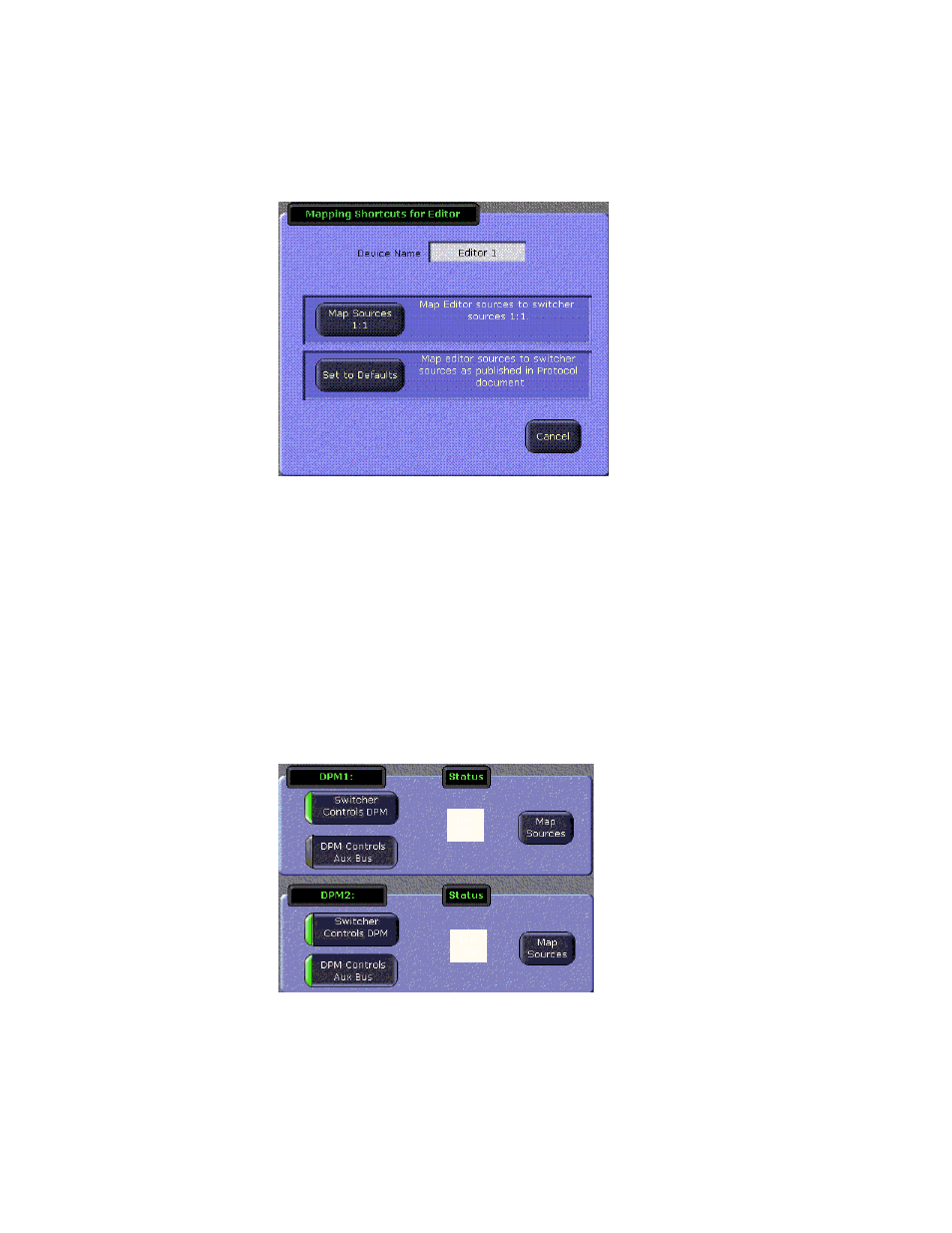

The Mapping Shortcuts button accesses a Mapping Shortcuts for Editor
window, see Figure 146 .
Figure 143. Editor Map Sources Menu
• Touching the Map Sources 1:1 button does a quick mapping of the
sources 1 to 1, (Switcher Source 1 to Editor Source 1).
• Touching the Set to Defaults button uses the default mapping of the pro-
tocol that the device uses for communicating to Zodiak.
Note The protocol button will display the protocol selected for the device in the Eng
Setup, Port & Device Definition menu.
DPM Panes
Figure 144. DPM Panes
The Switcher Controls DPM and the DPM Controls Aux Bus buttons toggle on and
off. The three possible combinations are:
