Zodiak — User Manual 341
Keyer Menus
Box – When Box is selected as the mask source, the Adjust pane will appear
with two selections: Size/Position or Sep Edges as shown in Figure 240 .
• Size/Position – Allows adjustment of the size and position of the mask
with the Horizontal, Vertical, Size, Softness, and Opacity soft knobs on
the right of the screen.
• Sep Edges – Allows adjustment of the Top, Bottom, Left, Right, and Size
of the mask with the soft knobs when the separate edges data pad is
active (not shown).
Keyer Wipe – A Keyer Wipe mask source allows selection of a wipe pattern
from the dedicated pattern generator for the keyer. Touch the Ptn button in
the Keyer Generator pane to bring up the wipe pattern selections available
(
Figure 241 ). Select a pattern from the display. The selected pattern will
appear in the Ptn data pad window.
Select the Pos , Rotate , Repeat , Aspect data pad below the Ptn data pad to bring
up the pattern modifiers available for the keyer wipes. These include
pattern positioner, rotate, H and V multiply, and aspect controls, similar to
the wipe controls in
Figure 246 on page 348 . Modifiers are controlled by the
soft knobs on the right of the screen.

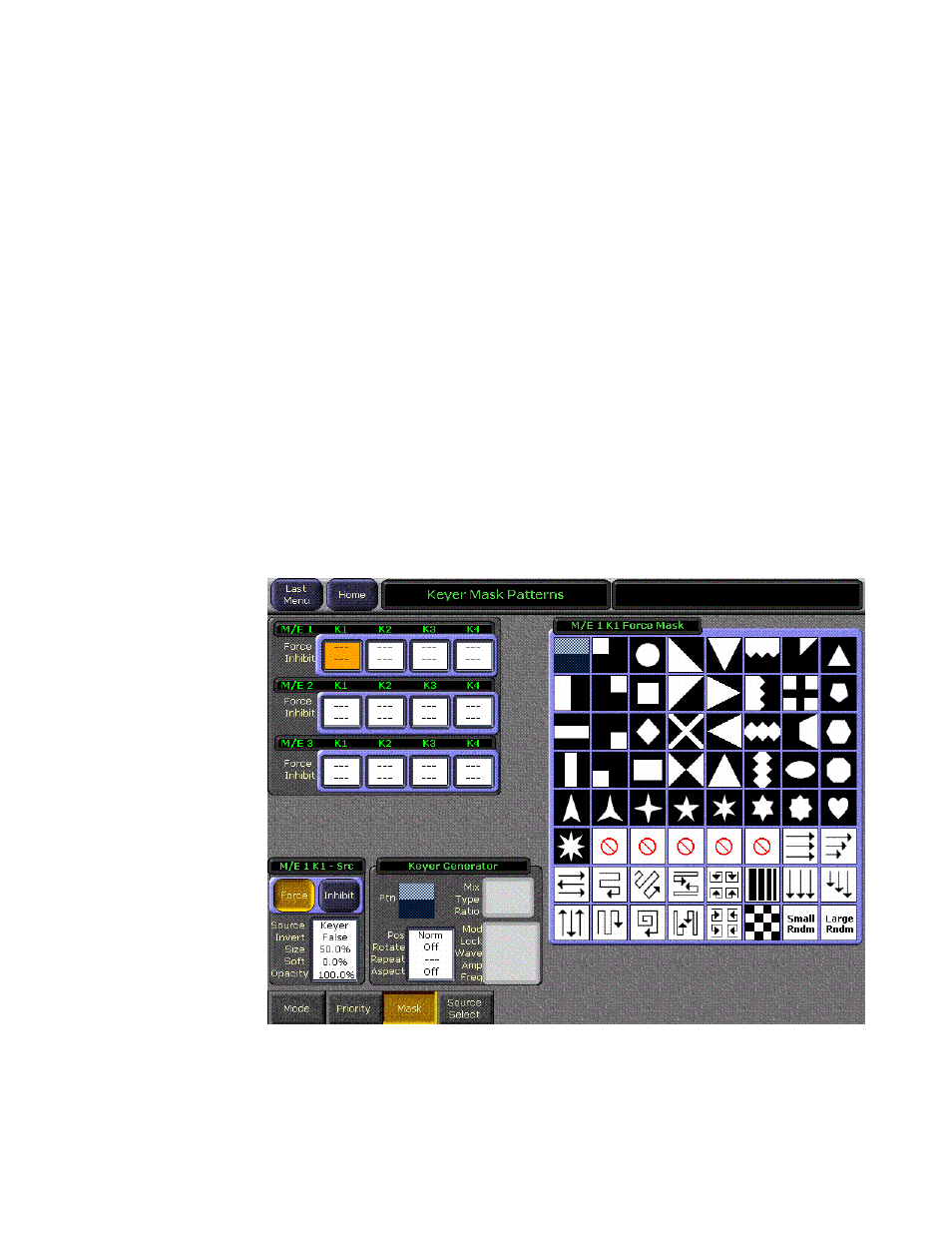

Figure 241. Keyer Mask Pattern
