144

Zodiak — User Manual

Section 3 — Control Surface Description

The single bus Remote Aux panels control only one Aux bus. The multi-
destination panel has 18 Aux bus delegation buttons that may be config-
ured to control any of the available Zodiak Aux buses. Aux bus delegation
mapping and source to button mapping is described in detail in Button
Mapping

on page 353

.

When an Aux bus controlled by a multi-destination Remote Aux panel is
part of an Aux pair, the A and B Channels of the Aux pair can be assigned
to different Aux bus delegation buttons to allow changing sources on either
channel as described in Mapping Aux Bus Pairs

on page 358

.

32-Crosspoint Remote Aux Panels

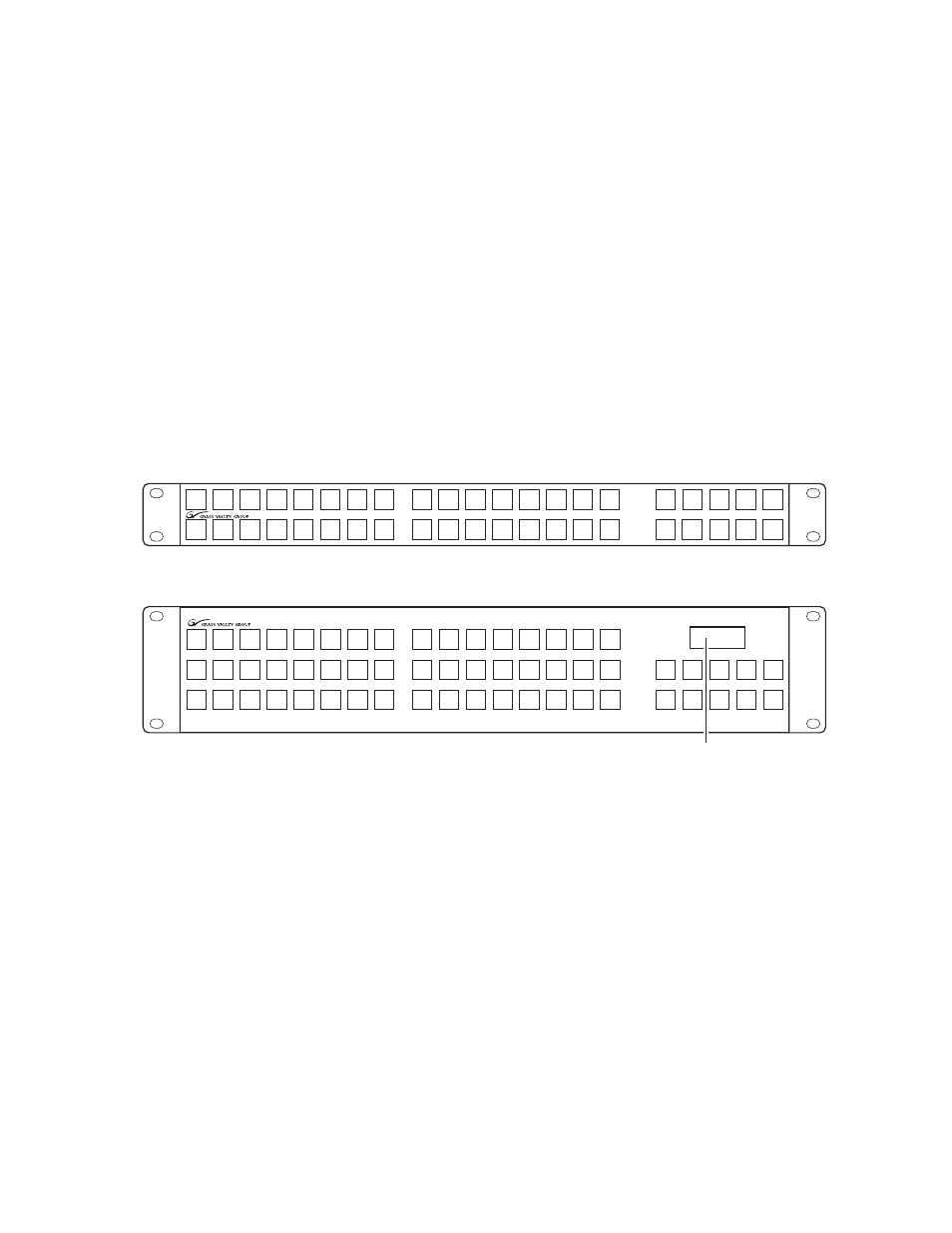

Two types of 32-crosspoint Remote Aux panels are available as shown in

Figure 92

and

Figure 93

.

Figure 92. KAL-32AUX1 (1 RU)

Figure 93. KAL-32AUX2 (2 RU)

Each panel has 32 primary source selection buttons and 32 shifted buttons.
Four secondary source selection buttons on each panel can select the
outputs from the switcher M/E and PGM/PST A buses.

The single bus Remote Aux panel controls only one Aux bus. The multi-
destination panel has 16 Aux bus delegation buttons that may be config-
ured to control any of the available Zodiak Aux buses. Aux bus delegation
mapping and Source to button mapping is described in detail in Button
Mapping

on page 353

.

The readout display on the 2 RU panel will indicate the name of the Remote
Aux bus after it is selected on the delegation bus or a source name after it
is selected on the source selection bus.

The other source select modifier buttons are described below.

K A L Y P S O R E M O T E A U X P A N E L

1

2

3

4

5

6

7

8

9

10 11

12 13

14

15

16

M/E
1

M/E
2

M/E
3

Pgm
Pst

Hold

17 18 19

20 21 22

23 24

25 26 27 28 29 30 31 32

Un-
Shift

Shift

Key
Split

Near
Side

Far
Side

0619_04_5

8_r3

R E M O T E A U X P A N E L

K A L Y P S O R E M O T E A U X P A N E L

1

2

3

4

5

6

7

8

9

10 11

12 13

14

15

16

M/E
1

M/E
2

M/E
3

Pgm
Pst

Hold

17

18

19

20 21 22

23 24

25 26 27 28 29 30 31 32

Un-
Shift

Shift

Key
Split

Near
Side

Far
Side

AUX
1

AUX
2

AUX
3

AUX
4

AUX
5

AUX
6

AUX
7

AUX
8

AUX
9

AUX
10

AUX
11

AUX
12

AUX
13

AUX
14

AUX
15

AUX
16

0619_04_60_r3

R E M O T E A U X P A N E L

Display Area
