Button Mapping
Remote Aux Panel Button Mapping
Source to button mapping for optional Remote Aux panels is also done in
the Button Mapping menu. Buttons can be mapped differently on each
Remote Aux panel. See the separate Zodiak Installation and Service Manual
for Remote Aux panel installation and configuration procedures.
Note Remote Aux Panels must be installed and configured before their buttons can
be mapped.
Configure source to button mapping for each Remote Aux panel as fol-
lows:
1. Select the Remote Panel Type button. This delegates the menu to control
Remote Aux panels. The name of the last Remote Aux panel(s) selected
for mapping appears in the Remote Panels data pad (
Figure 253 ).

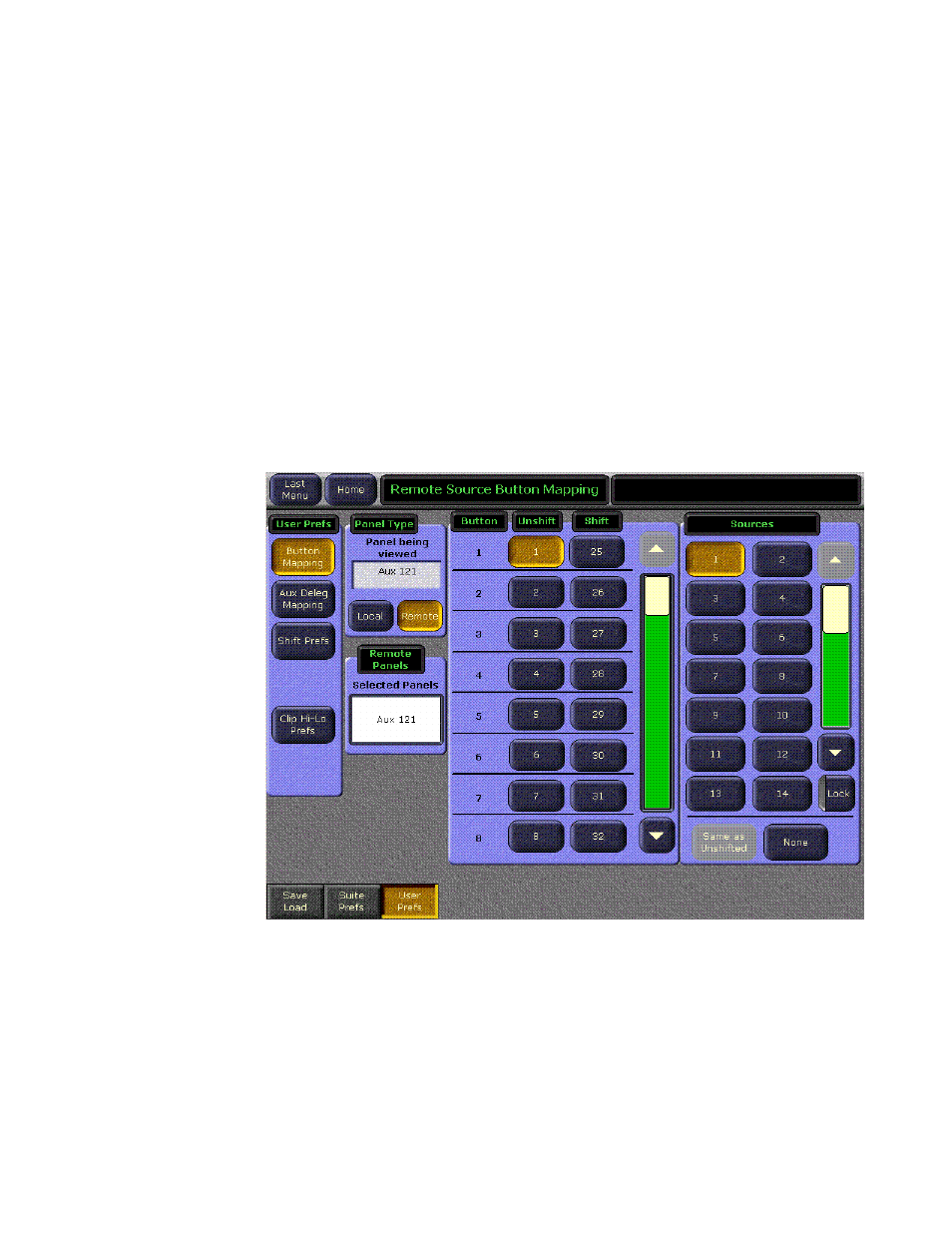

Figure 253. Remote Aux Panel Button Mapping
2. Touch the Remote Panels data pad to bring up a selection menu,
permitting the selection of one or more Remote Aux panels
(
Figure 254 ).
