Page 464
464
Zodiak — User Manual
Appendix — Still Store Loader

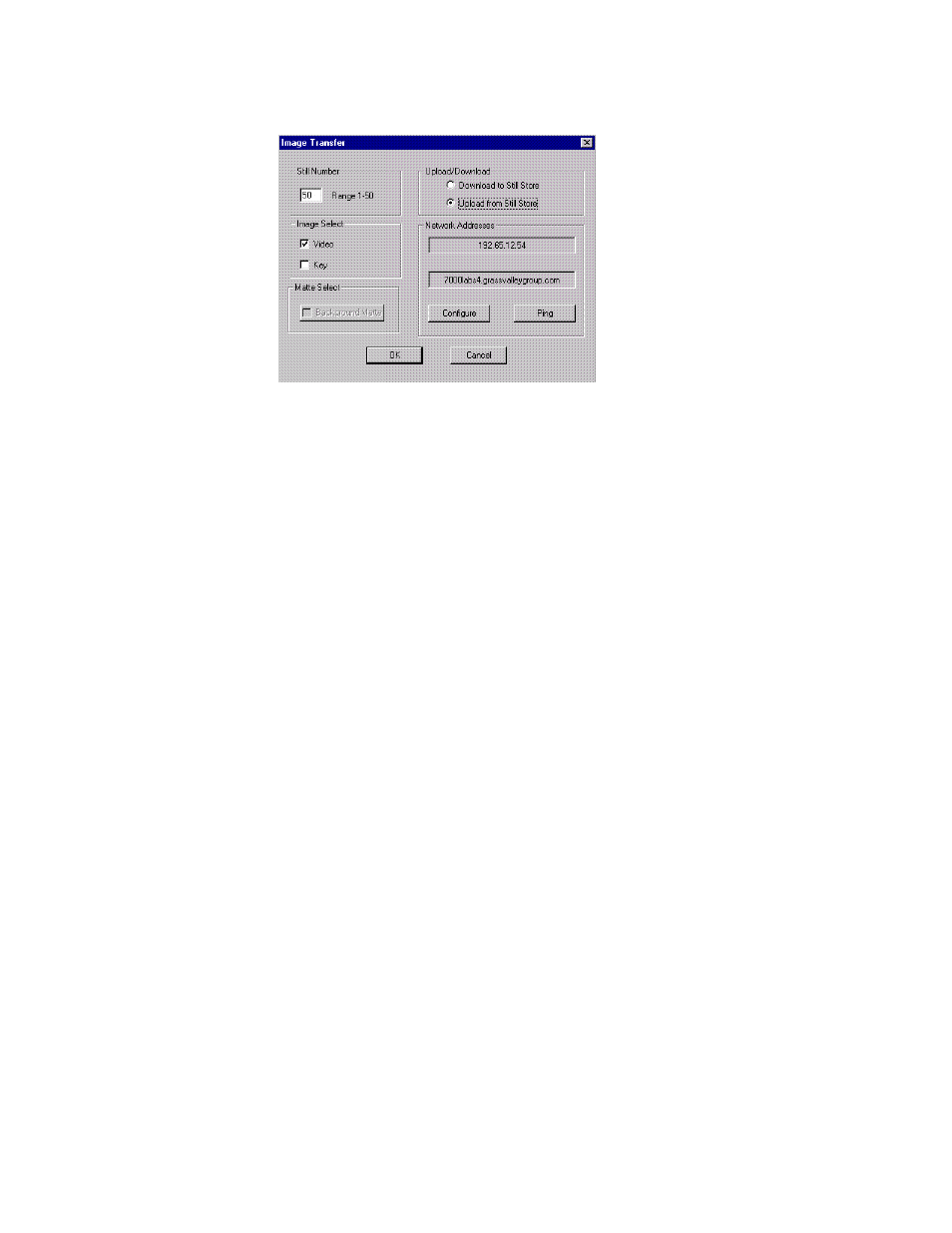

Figure 309. Image Transfer Dialog Box, Upload Selected
4.
Select the Still Number to be uploaded. Background Matte is not
available for uploading images.
5.
Click the
Video
or
Key
check box in the Image Select area.
•
The
Video
setting is used for uploading standard stills, and will
upload the image from the video portion of a video/key still.
•
The
Key
setting will upload the image from the key portion of a
video/key still.
6.
If necessary, enter the network address of the target device (see
Selecting the Zodiak Stillstore Device
7.
Click
OK
when all the selections are complete. The image will be
uploaded into the Still Store Loader application. The Image Transfer
Status bar indicates the progress of the transfer.
8.
Upon a successful transfer, the message “Upload completed OK”
appears. Click
OK
to close this message box.
Once uploaded to the Still Store Loader application, the image can be pre-
viewed, saved to disk, repositioned, and downloaded back to the same or
a different target device.
Repositioning an Image
You can use Still Store Loader to reposition an image to a desired location
for downloading. This is useful, for example, for placing your station logo
(with a black matte) in the desired screen position.
1.
Go to the Still Store Loader Main menu.
2.
You can reposition the image three different ways:
a.
Place the cursor over the image, then click and hold the left mouse
button to drag the image on the screen.
