Zodiak — User Manual 25
System Components
Main Panel
The panel is organized into subpanels that contain groups of related con-
trols (
Figure 2 ).
The 3-M/E Main panel provides real time button, knob, and lever arm
control of three full function mix/effects (PGM/PST with full M/E capa-
bility). The panel is identical to the 2.5-M/E panel except for keyer and
wipe functionality in the PGM/PST rows.
The 2.5-M/E Main panel provides real time button, knob, and lever arm
control of two full function mix/effects and one PGM/PST with three
simple Downstream Keyers (DSKs).

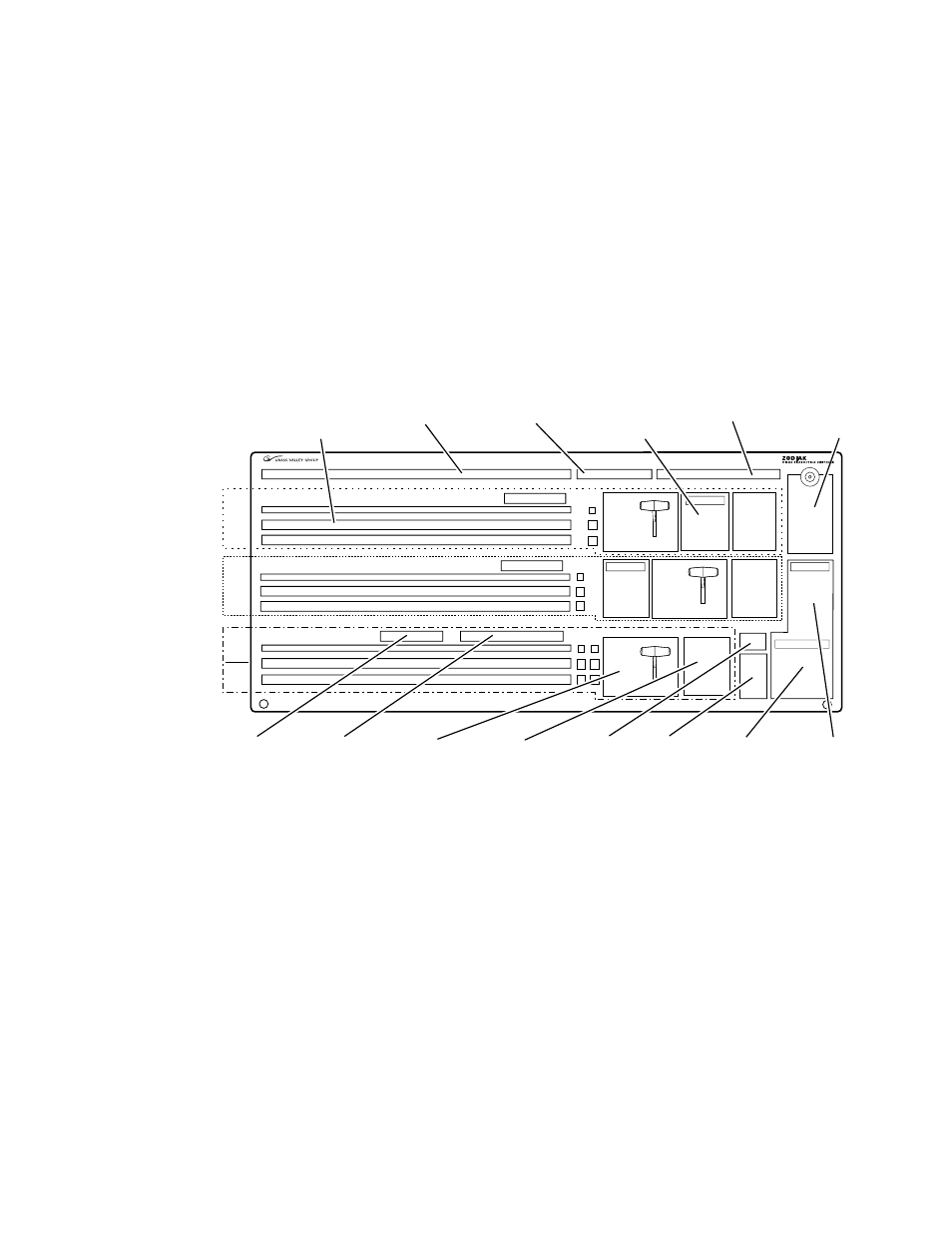

Figure 2. Zodiak Main Panel (2.5 and 3 M/E)
Connectors to the Zodiak Video Processor frame and to other components
of the Zodiak Control Surface are located on the rear of the Main panel. The
Main panel provides power to the separate Menu panel.
8126_00_01_r0
PVW/AUX Bus E-MEM
Subpanels (3)
M/E
1
Master E-MEM
Subpanel
Transition
Subpanels (3)
Preview
Subpanel
Transform
Subpanel
M/E
2
M/E
3
PGM
PST
Keyframe Edit
Subpanel
Key Bus
Delegation (3)
Fade to Black
Subpanel
Keyer
Subpanels (3)
DSK
Subpanel
Source Selection
Key, M/E A/B, and PGM/PST
PVW/AUX Re-entries Aux Bus Delegation
