Grass Valley Zodiak v.6.0 Mar 15 2006 - Manual (Page 193)

Zodiak — User Manual 193
Macro Menus
Macro Menus
The Macro menus provide access to many Zodiak system macro functions.
The Macro menus can be used to:
• Record a new macro and append record onto an existing macro,
• Insert time delays between macro steps,
• Name a macro,
• Play a macro and stop a playing macro.
• Delete an existing macro,
• Save and load macro registers (all, or by range),
• Copy and swap macro registers, and
• Attach a Macro to a button.
The Macro menus are accessed via the Macro button on the home menu.
Four different Macro menus are available.
Macro Save-Load Menu
The Macro Save-Load menu ( Figure 131 ) is accessed by touching the Save
Load category selection button at the bottom of the Macro menu.

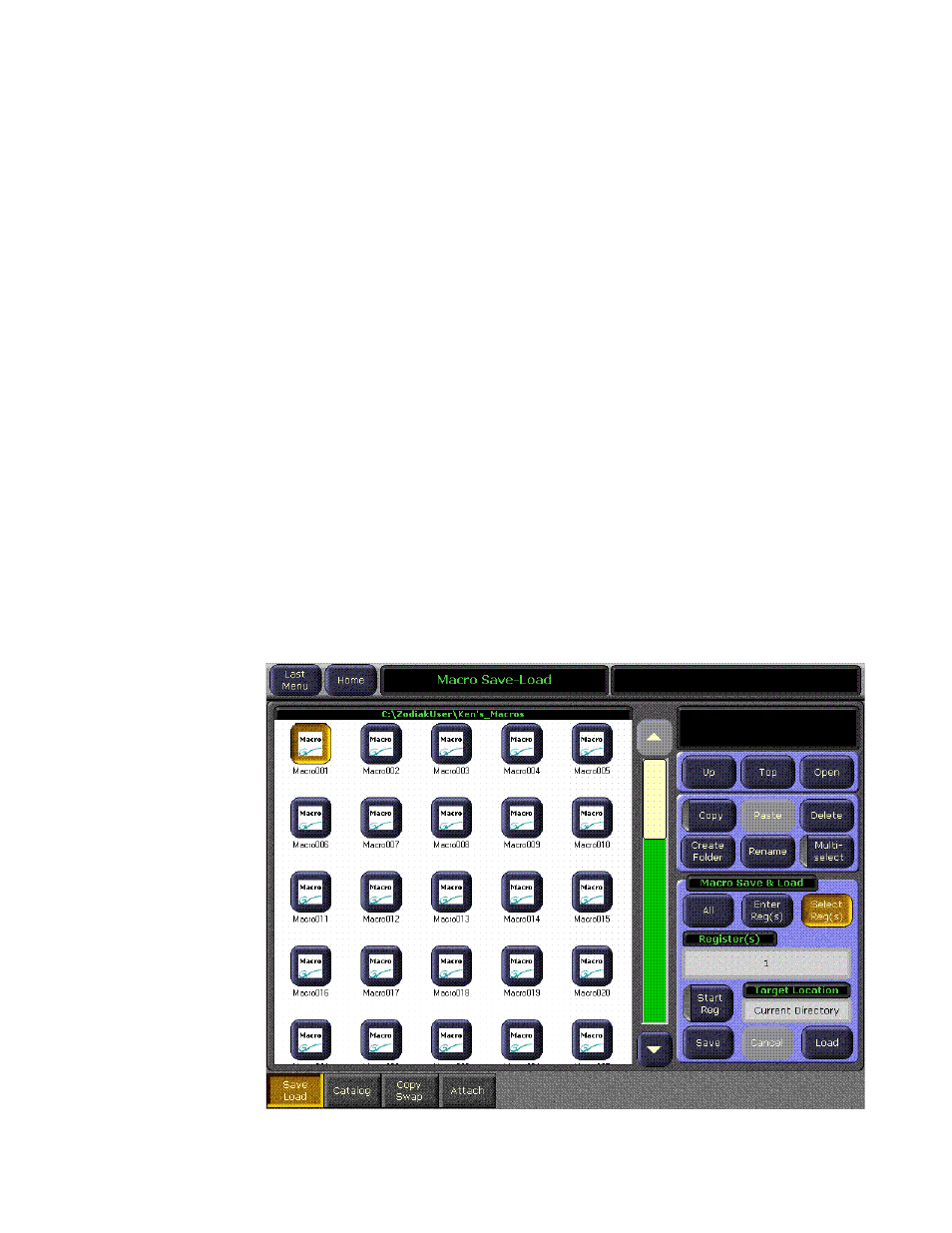

Figure 131. Macro Save-Load Menu
