Zodiak — User Manual 337
Keyer Menus
Chroma Key
When a chroma key is selected, the menu ( Figure 237 ) will display a
summary of all chroma key parameter values at the same time. The param-
eter groups are numbered indicating the order the adjustments should nor-
mally be made. After the first two parameter groups have been adjusted, a
reasonable key should be visible. Subsequent adjustment steps may
improve the basic key in subtle ways.
See Chroma Key Operating Notes on page 402 for more information on setting
up a chroma key. For a concept overview of chroma keying, refer to Chroma
Key
on page 59 .

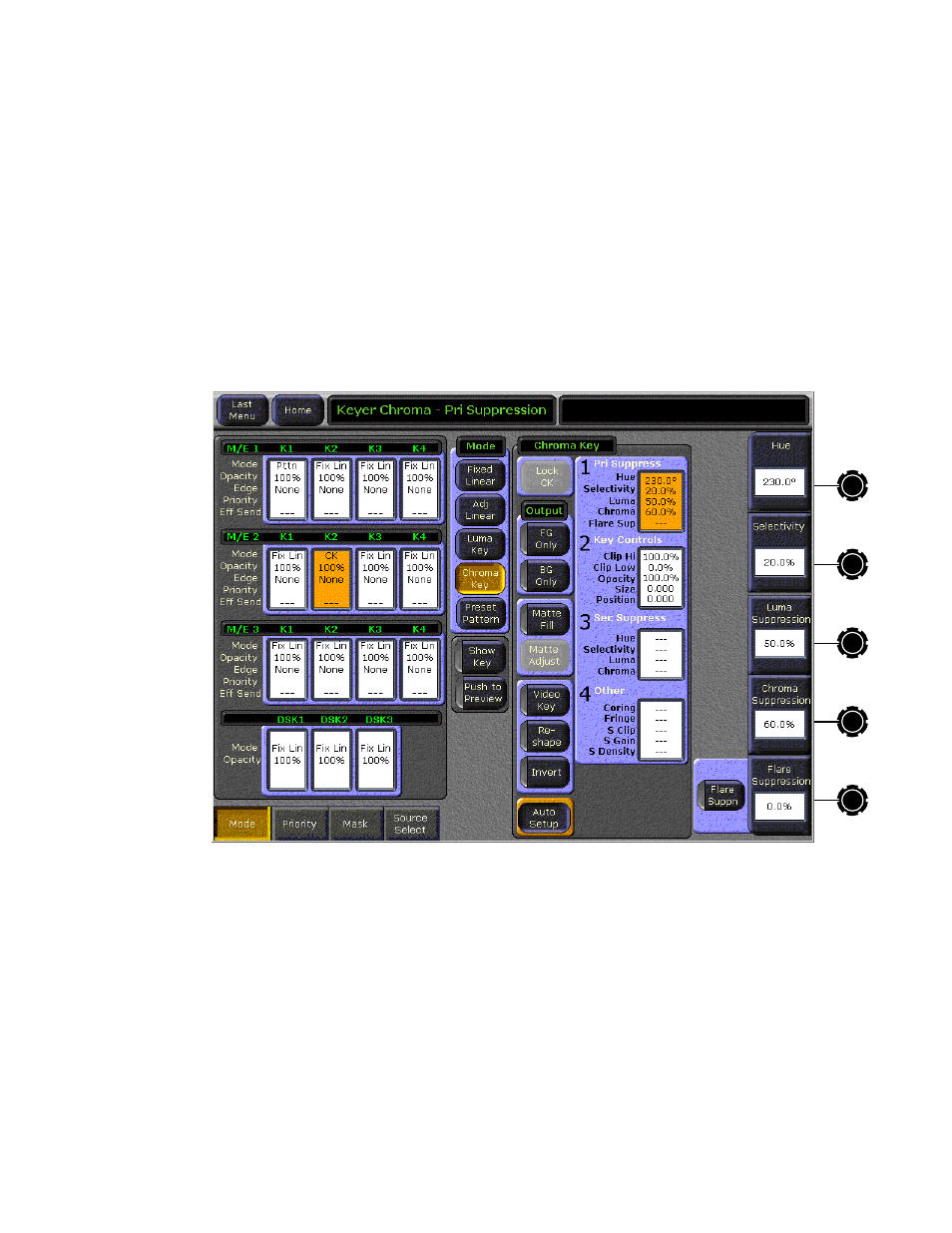

Figure 237. Keyer Mode – Chroma Key Menu
