Zodiak — User Manual 305
Transform Menus
Slits Mode
Slits is an effect in which the source video is split into a number of parallel
slits. The width of the slits may be uniform or random, and an angle may
be specified. An offset function is provided which controls the amount of
displacement of alternating slits in opposite directions (to cause a transi-
tion type effect).
Touch the Slits Kurl Mode button to access the slits controls.
When the Modulation data pad is selected in the Slits pane a menu similar
to
Figure 213 appears.

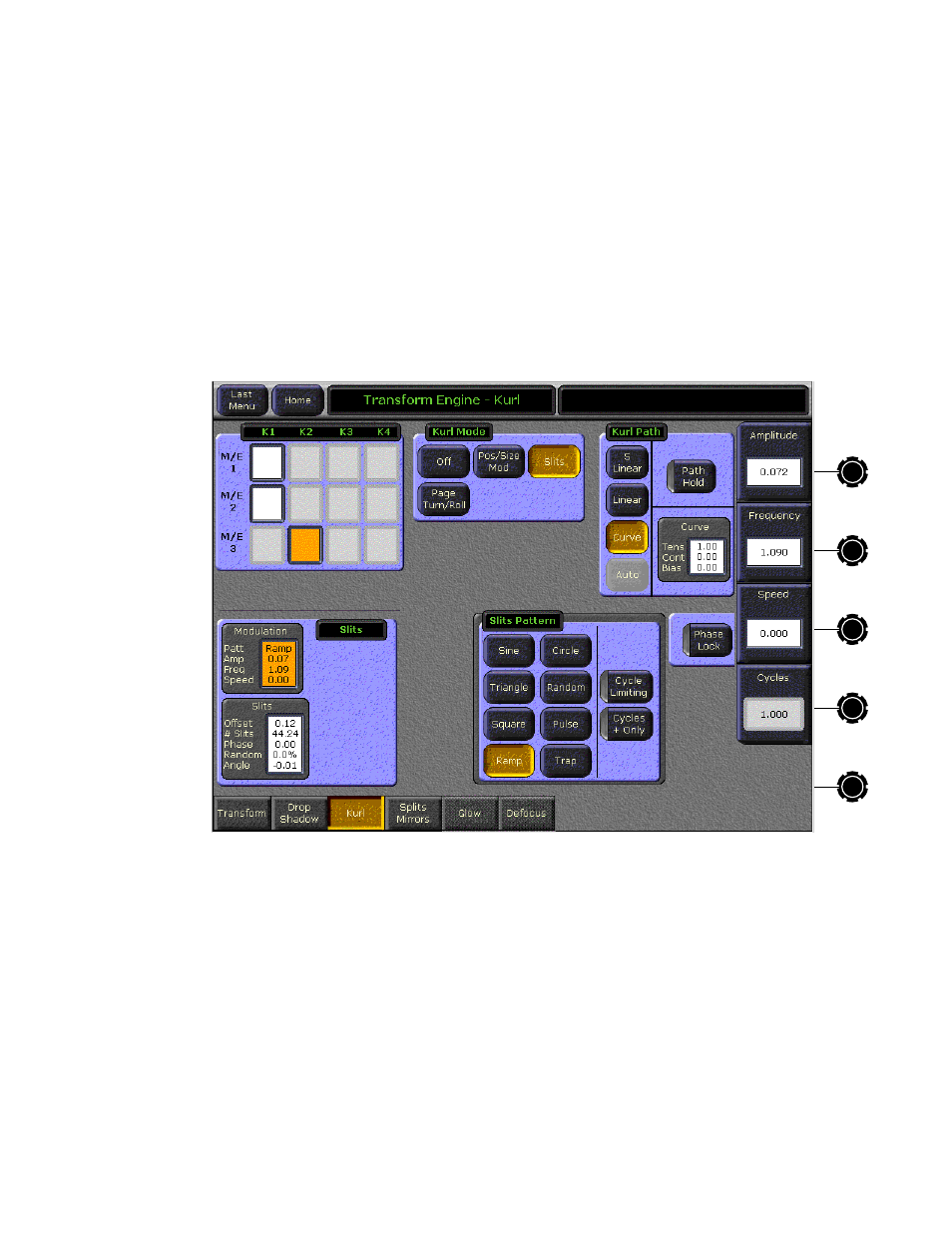

Figure 213. Kurl Menu, Slits Modulation
The Slit modulation soft knob controls and wave patterns are the same as
Position/Size (see Modulation Pane
on page 302 and Figure 212 on
page 304 ).
