190 Zodiak — User Manual
Section 4 — Menus Overview
System Menus
The System menus are used to identify the Zodiak Frame and Main panel
IP address (
Config ), and configure Remote Aux panels ( Aux Panel ). Subcate-
gory selection buttons for these controls are located on the left. Other con-
trols on this menu are currently inactive in released software.
Config Menu
The Config menu is used to identify and change the IP addresses of the
Video Processor frame and the Main panel (also called the Real Time or RT
Panel in this menu) for communication with the Menu panel. The menu is
accessed by touching
Eng Setup , System , Config ( Figure 128 ).
Complete IP addressing instructions are given in Section 3 – Configuration
in the Zodiak Installation and Service Manual.

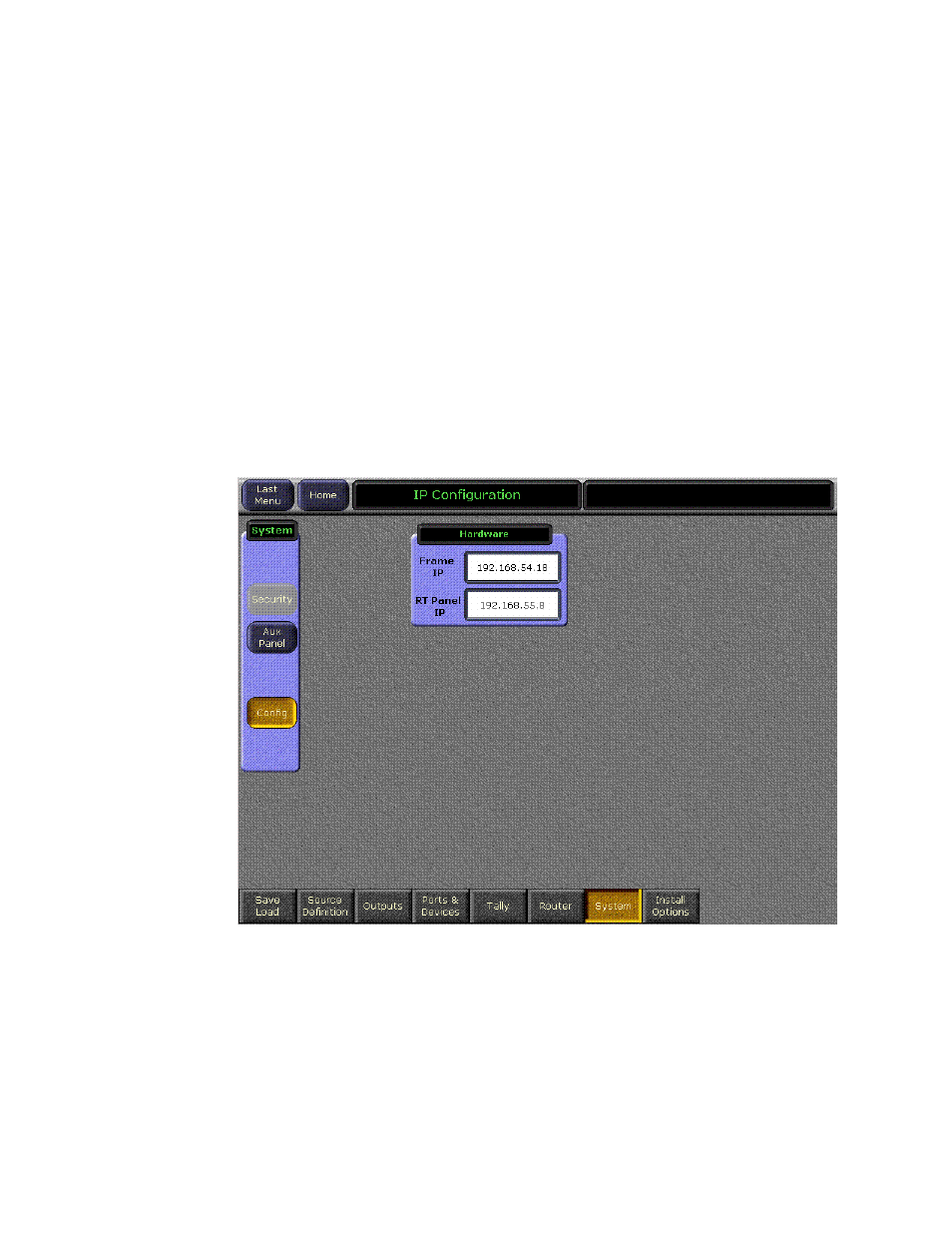

Figure 128. Config Menu
CAUTION The Frame and Main (RT) panel IP address must be set correctly or the Menu
panel will not communicate with the frame or Main panel.
After changing the IP addresses, you must exit the Zodiak Menu applica-
tion (by touching the upper right message area). It is also recommended to
restart Windows 2000 to reset the internally generated IP routing tables for
proper communication.
