72 Zodiak — User Manual
Section 2 — Concepts
The earlier E-MEM discussion was simplified to explain basic concepts.
Actually, register learn and recall operations and work buffer modifica-
tions apply to each level of an effect, though multiple levels of an effect can
be changed simultaneously. Settings for each level’s E-MEM register is
applied to the corresponding level of the work buffer (
Figure 38 ).

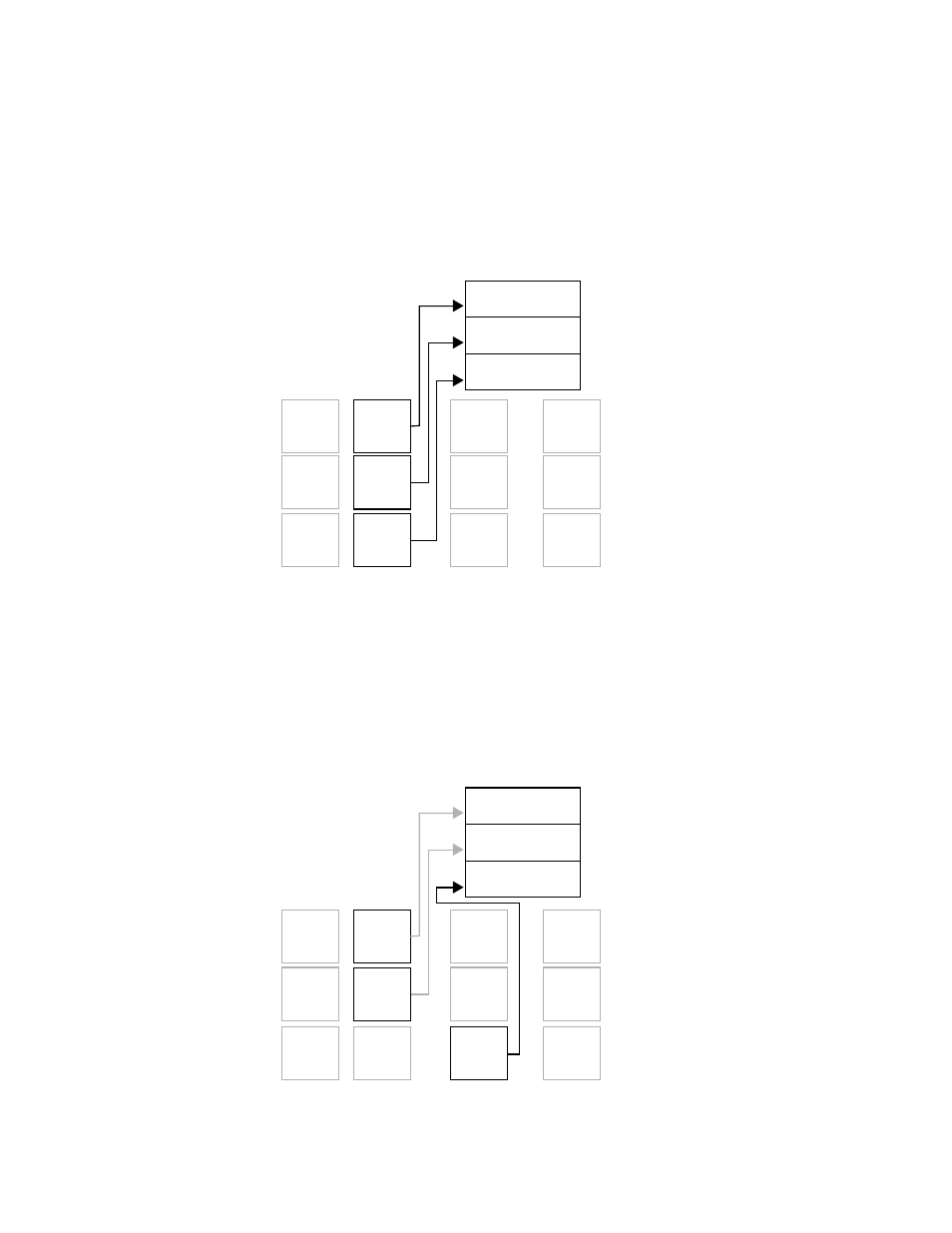

Figure 38. E-MEM Levels
If only one effect level is selected for a recall, the resulting change is only
applied to its level in the work buffer. The other levels of the work buffer
remain unaltered. Note that this makes is possible to have current effects
from different registers, also called a skewed effect (
Figure 39 ).
Figure 39. Single Level Recall
