350 Zodiak — User Manual
Section 4 — Menus Overview
Mod, Lock, Amp, Freq – Allows enabling and control of the modulation wipe
functions ( Figure 248 ). Patterns may be modulated vertically or horizon-
tally with four different waveforms (Square, Sine, Sawtooth and Triangle).
Soft knobs on the right of the screen control amplitude and frequency of the
H and V modulation.

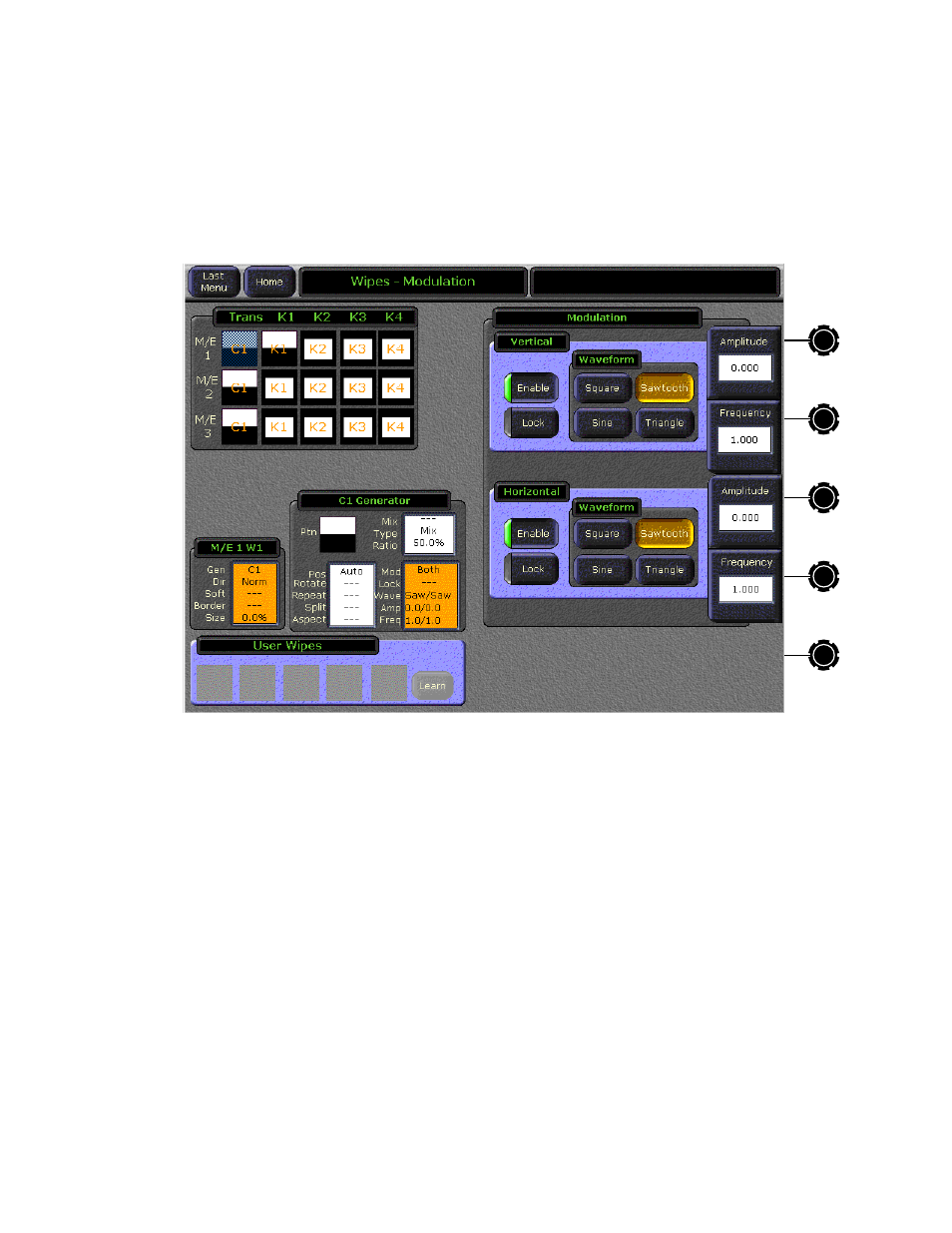

Figure 248. Pattern Modifiers – Modulation
Other Menus
As the Zodiak software is enhanced, additional menus, subcategories, and
controls will become available (see the Zodiak Release Notes for the latest
menu additions and changes). Once you understand the principles of
Zodiak system menu organization and operation, you will be able to
quickly learn these new menus and use them effectively for your work.
