300 Zodiak — User Manual
Section 4 — Menus Overview
Drop Shadow Menu
The Drop Shadow menu is accessed by touching the Transform button on the
Home menu, then touching Drop Shadow ( Figure 209 ).
Note The Zodiak Drop Shadow is generated in the Source plane. Operation of the
Drop Shadow will appear slightly difference in some effects (Kurls and
Warps) due to this design. When an image is rotated on the X or Y axis with
a Drop Shadow effect, the shadow will not be parallel with the key.

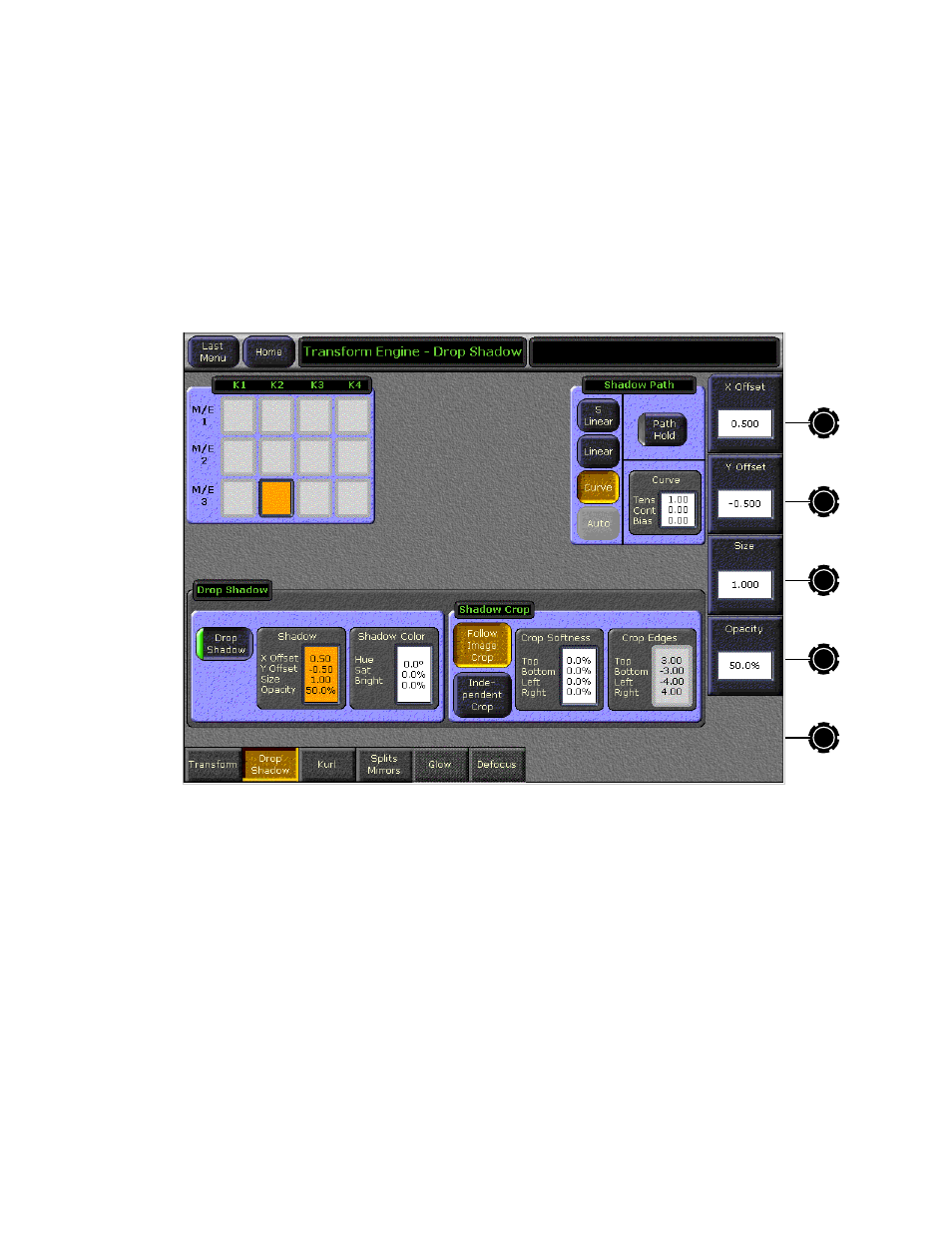

Figure 209. Drop Shadow Menu
Drop Shadow Controls
The Drop Shadow feature is turned on with the Drop Shadow button in the
Drop Shadow pane. When turned on, soft knob controls become available
on the right. Different soft knob controls appear, depending on which data
pad has been selected in that pane. The current parameter names and
values are displayed on each data pad.
When Shadow is selected soft knobs for X Offset , Y Offset , Size , and Opacity are
available.
When Shadow Color is selected soft knobs for Hue, Saturation, and Bright-
ness are available.
