268 Zodiak — User Manual
Section 4 — Menus Overview
Copy Swap Matte Menu
Touch Copy Swap , Matte to access the Copy Swap Matte menu ( Figure 189 ).

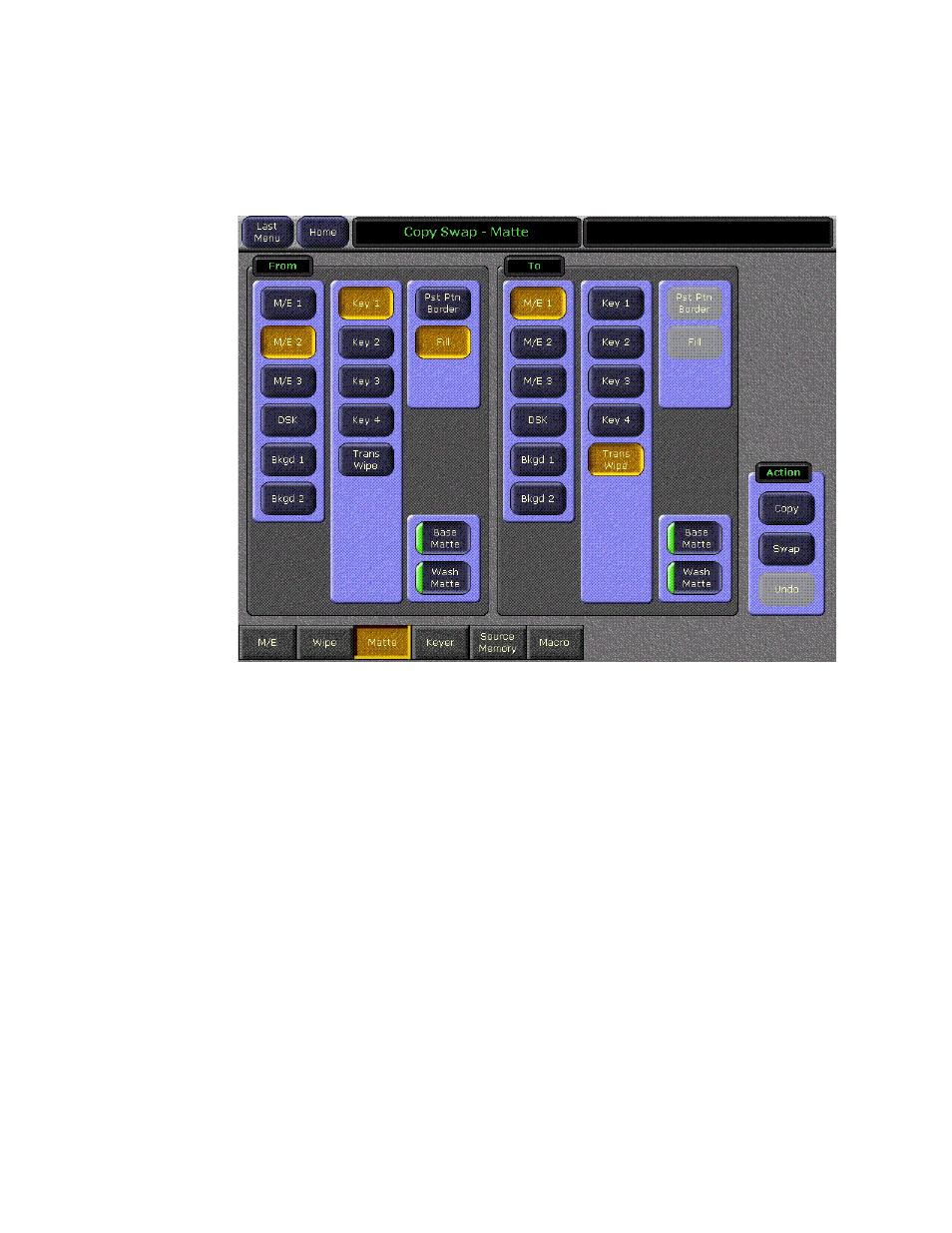

Figure 189. Copy Swap Matte Menu
Some combinations of M/E level, Key level, and matte generator level do
not exist. For example, in
Figure 189 , the destination matte is M/E 1’s
Trans Wipe. Pst Ptn Border, and Fill are grayed out because they only
apply to keyer mattes. Similarly, if Bkgd 1 had been chosen, no further del-
egation would be needed, so all of the keyer related selections would be
grayed out.
For a 2.5 M/E switcher, the M/E 3 buttons would not appear.
