In this case the unshaped video fails to be shaped at all ( Figure 30 )

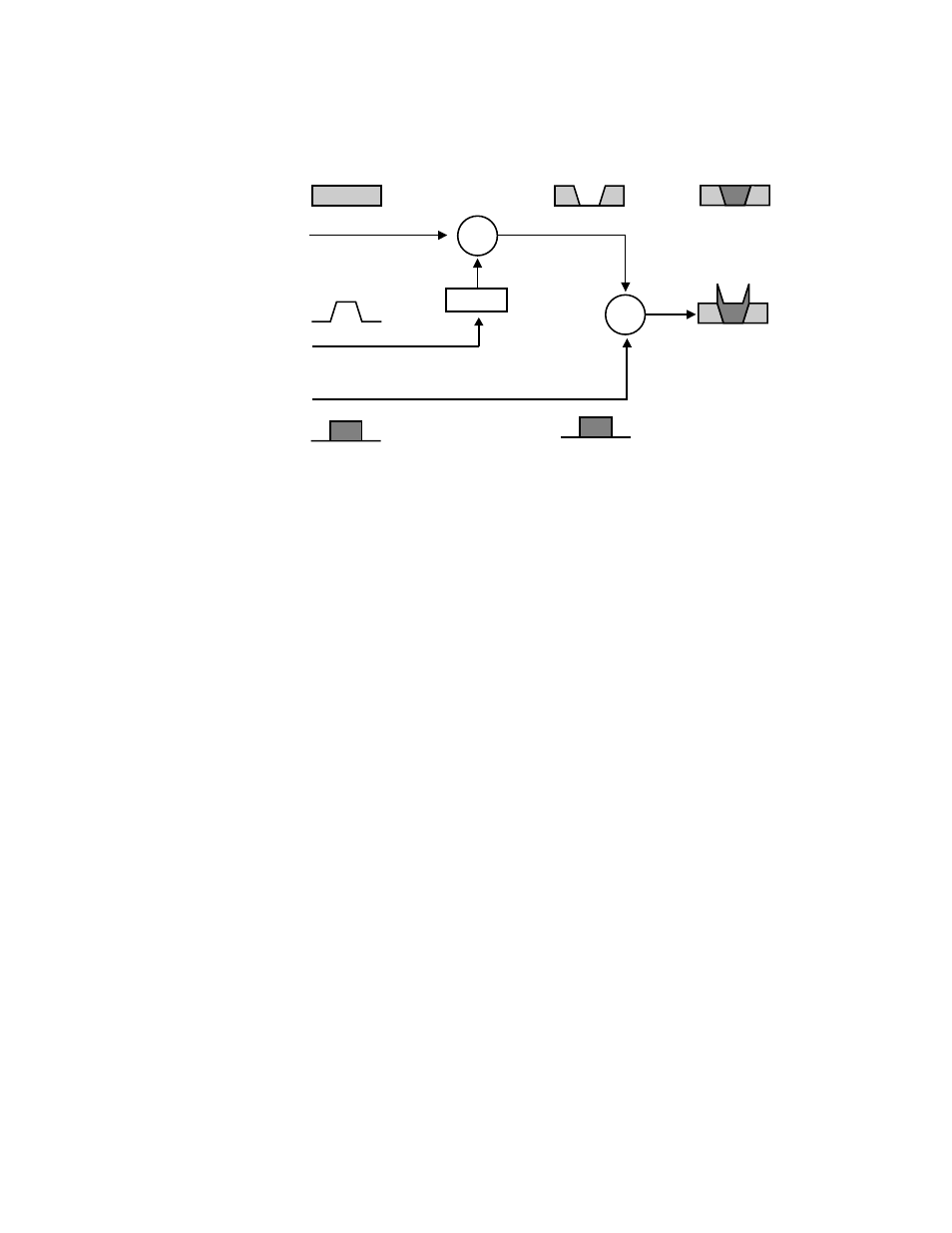

Figure 30. Incorrect Keying with Unshaped Key Fill
Recognizing the appearance of improperly shaped video helps you know
how to correct the problem should it occur.
E-MEM (Effects Memory)
Grass Valley Group developed the E-MEM (Effects Memory) system to
provide a way of storing effects for later use. An effect defines parameter
settings that determine how the selected video sources are processed. An
E-MEM effect is learned into an effect register, and can then be recalled at a
later time with a single button press. Effects can be edited after they have
been learned, and effect data can also be saved to and loaded from disk.
Work Buffer
The work buffer is a fundamental aspect of system operation. The work
buffer contains the current state of the system, specifying the sources
selected and the video processing applied to those sources. The work
buffer tracks all the system parameters, including those that do not have
controls delegated. As the operator delegates and alters control panel and
menu settings, the associated parameters in the work buffer change. If any
altered work buffer parameters affect the video outputs of the switcher, the
appearance of these outputs will change accordingly.
x
+ Invert
Background Key Hole in Background
Key Control
Shaping Circuit Off
Unshaped
Video
Incorrect Key
with White Halo
0618_00_35
Unshaped
Key Fill
Correct Key
