276 Zodiak — User Manual
Section 4 — Menus Overview
Still Store Playback Menu
The Still Store Playback menu provides menu delegation to an output, still
and clip selection, clip playback, video/key pair control, and position and
crop controls. Touch
Still Store , Playback to access this menu ( Figure 195 ).

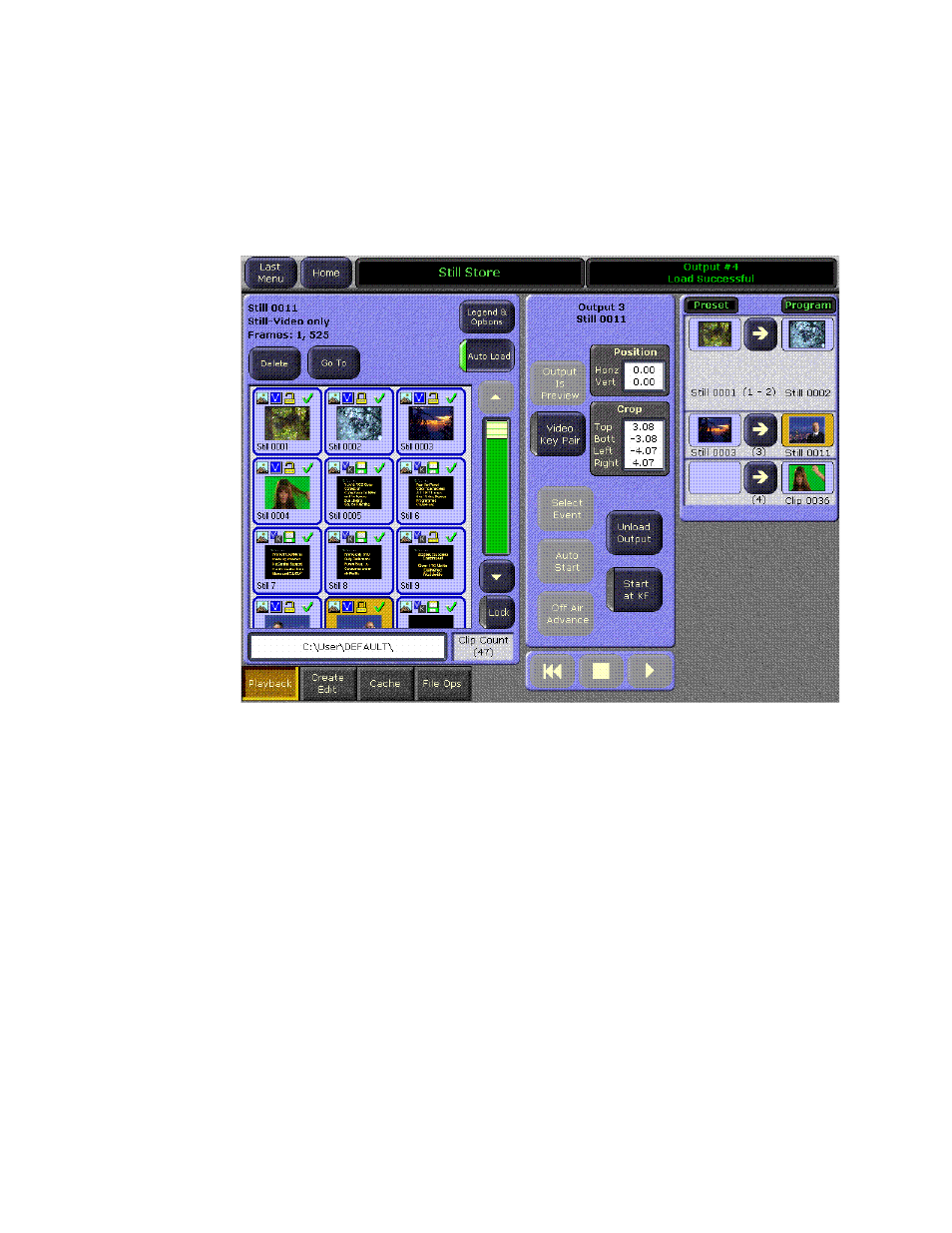

Figure 195. Still Store Playback Menu
Menu Delegation to an Output
Buttons for the Still Store outputs reside in the right pane (if video/key
pairs exist less than eight sets of controls will be displayed). The Still Store
Preset and Program buttons delegate the rest of the menu controls to that Still
Store output.
The Program button delegates the menu to the actual output of the Still
Store. Menu changes made when this button is selected immediately
affects that Still Store output image.
The Preset button delegates the menu to a holding area for that output. Pre-
selecting an image here makes the necessary preparation (caching) to allow
instant transfer to that output without disturbing the current output of that
channel.
The number of the still or clip loaded to Program or Preset appears on the
button. The button is blank if nothing is loaded on that output. If a cached
item from a different folder is loaded to an output, the button will be
shaded.
