Zodiak — User Manual
177
Daily Setups Menus
Shortcut Menu
Touching the
Display Shortcut Menu
button brings up a menu that can help
reduce the time required to build Link Mapping tables (

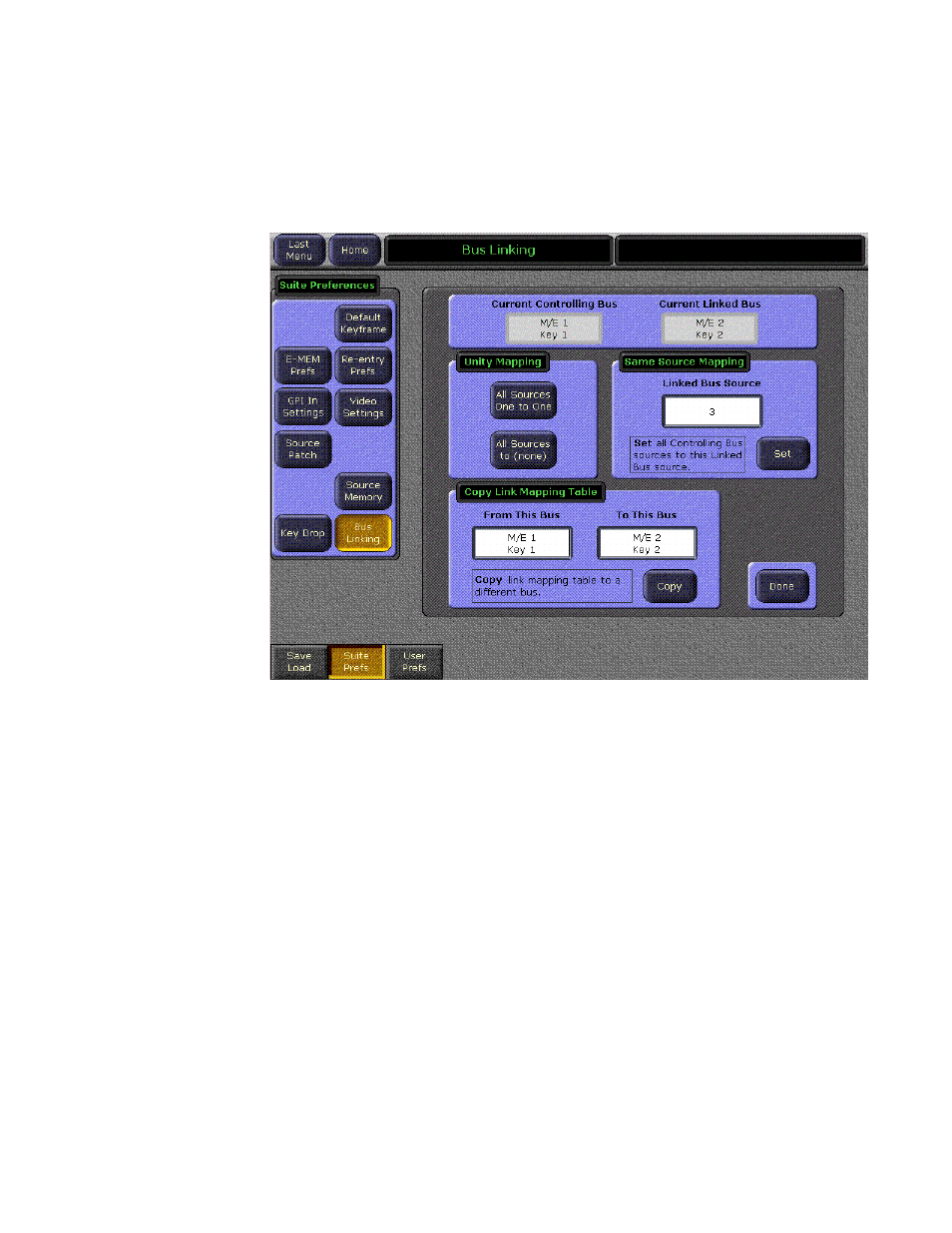

Figure 115. Bus Linking Shortcut Menu
The current Controlling Bus and Linked Bus are identified in the data pads
at the top of the pane.
Unity Mapping
All Sources One to One
– Sets up a one-to-one mapping of Controlling bus
sources to Linked bus sources. Useful when the linked sources mostly
match the controlling bus sources.
All Sources to None
– Sets all the Controlling bus link source mappings to
(none). Useful when the controlling bus should only make a few changes
to the linked bus (most controlling bus source selections do nothing to the
linked bus).
Same Source Mapping
All the Controlling bus sources can be linked to the same Linked bus
source, using the Same Source Mapping pane. Touching the
Set
button
maps all the Controlling bus sources to the Linked bus source displayed in
the data pad.
