Zodiak — User Manual 451
Newton Modular Control
During this process, the NetConfig network configuration application and
a Newton Configurator plug-in are installed. The tool is accessed by
launching NetConfig and touching the Newton tab on the top menu bar
(
Figure 298 ).

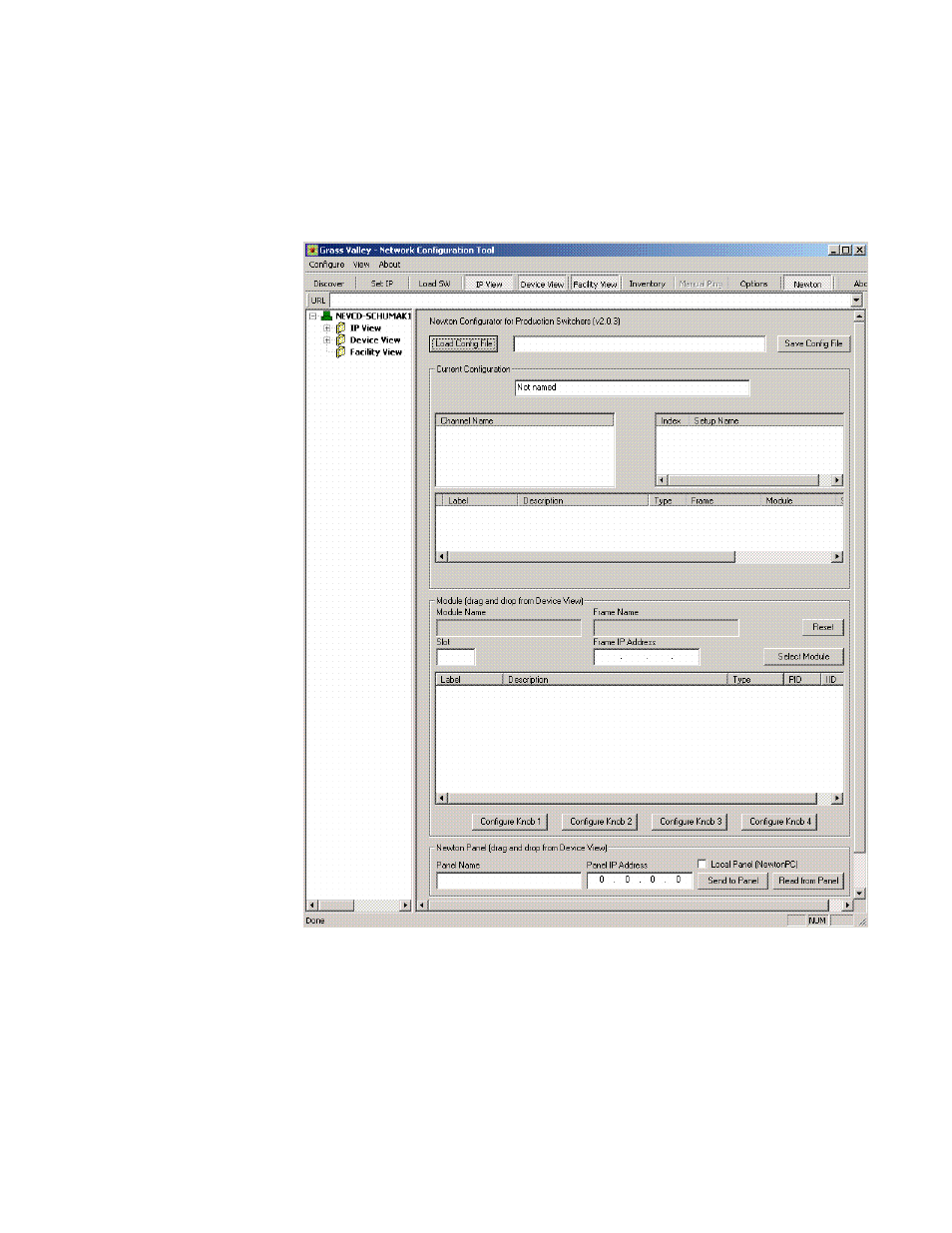

Figure 298. NetConfig Newton Configurator Plug-in
The Configurator tool is used to define the functionality of Newton con-
trols by creating a Newton configuration file. The Newton configuration
establishes a one-to-one relationship of Newton channels to Zodiak phys-
ical inputs (BNC connectors on the Video Processor frame). Each Zodiak
input/Newton channel can have up to five different setups defined. A
default Newton configuration file with 96 channels (inputs) is provided
with five empty setups for each channel. On Zodiak systems the first 64
channels can be used. Using the configurator, controllable parameters in
