When off, the Speed soft knob is available to adjust the speed of the pat-
tern’s motion. Negative values can be entered to reverse the direction of the
motion.
H/V Angle — defines the angle of the Position Modulation with respect to
the source X and Y axes.
Mod Type Pane
With an axis selected, you select the type of modulation to be applied to
that axis (
Position Mod or Size Mod ) in the Mod Type pane. When the Vertical
axis is selected, you can choose to have that axis’ modulation values match
the horizontal values with the
Track Horiz button.
When Size Mod is selected in the Mod Type pane, the Size Mod Center data
pad in the Modulation pane is active. When this data pad is selected soft
knob controls for
H Position , V Position , and H/V Angle are available
( Figure 211 ).

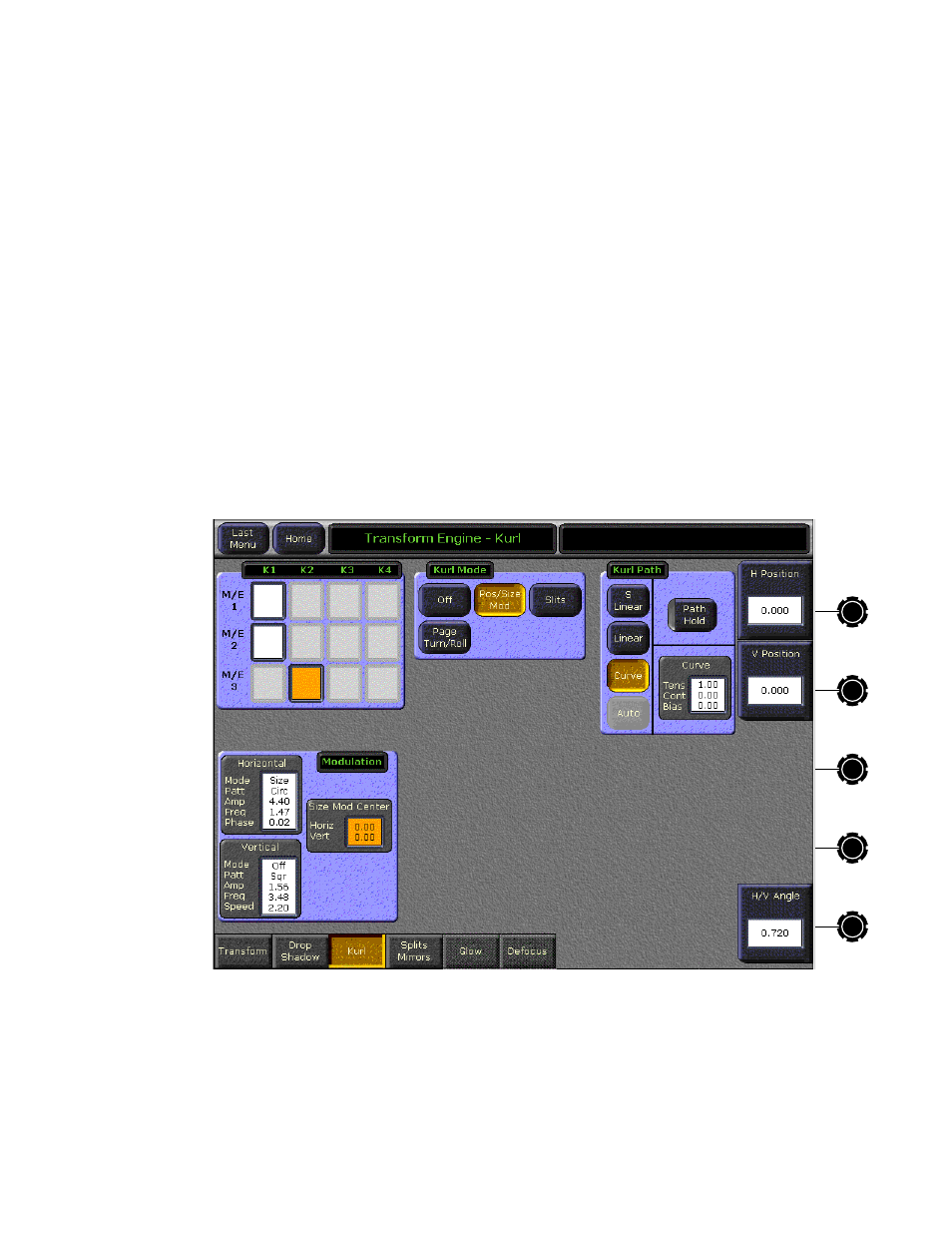

Figure 211. Kurl Menu, Size Mod Center
