The Tally menus are used to configure the tally system. There are multiple
tally calculators, three different tally calculation methods, and user assign-
ment of tally relays. The results of the tally calculators are applied to the
tally relays on the Tally modules in the Video Processor frame, and those
relays control external tally lights. The menu set also allows the user to
map Engineering sources to the tally relays.
See the separate Zodiak Installation and Service Manual for detailed informa-
tion about tally configuration.
Tally Calculation Definition Menu
The Tally Calculation Definition menu is used to select calculators,
methods, and levels, name User calculators, assign outputs to Tributaries,
and turn the User calculators on and off. Touch
Eng Setup , Tally, Tally Calcs,
(the Tally Calcs button is in the Tally pane) to access the menu ( Figure 125 ).

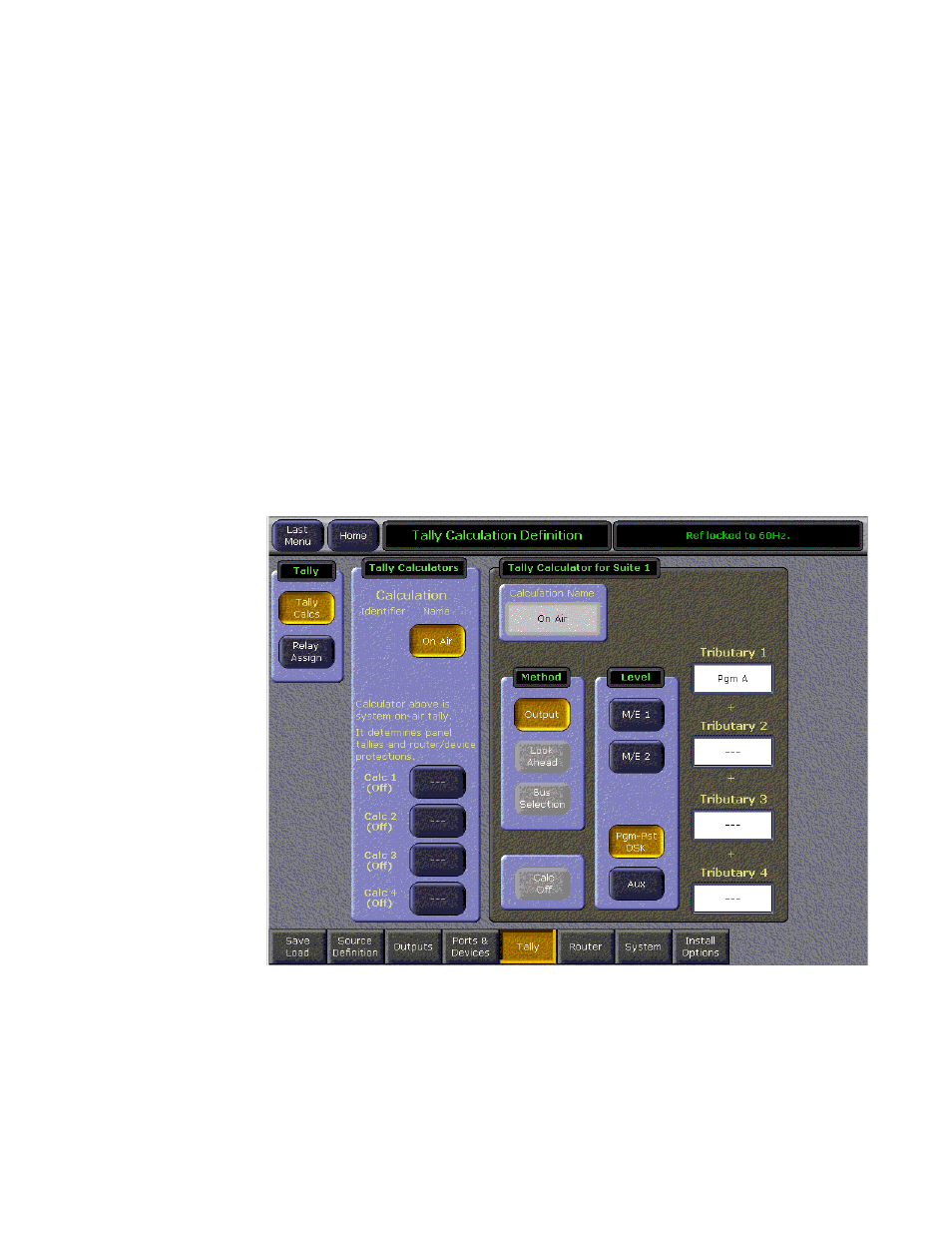

Figure 125. Tally Calculation Definition Menu
