Button Mapping
Aux Bus Delegation Button Mapping
The Aux Deleg Mapping menu is used to configure available Aux delega-
tion buttons on the PVW/AUX bus on the Main panel and on multiple des-
tination Remote Aux panels. This menu is accessed by pressing
Daily Setups ,
User Prefs , Aux Deleg Mapping ( Figure 255 ).
Aux bus configuration is explained in detail in Section 3 — Configuration
in the Zodiak Installation and Service Manual.

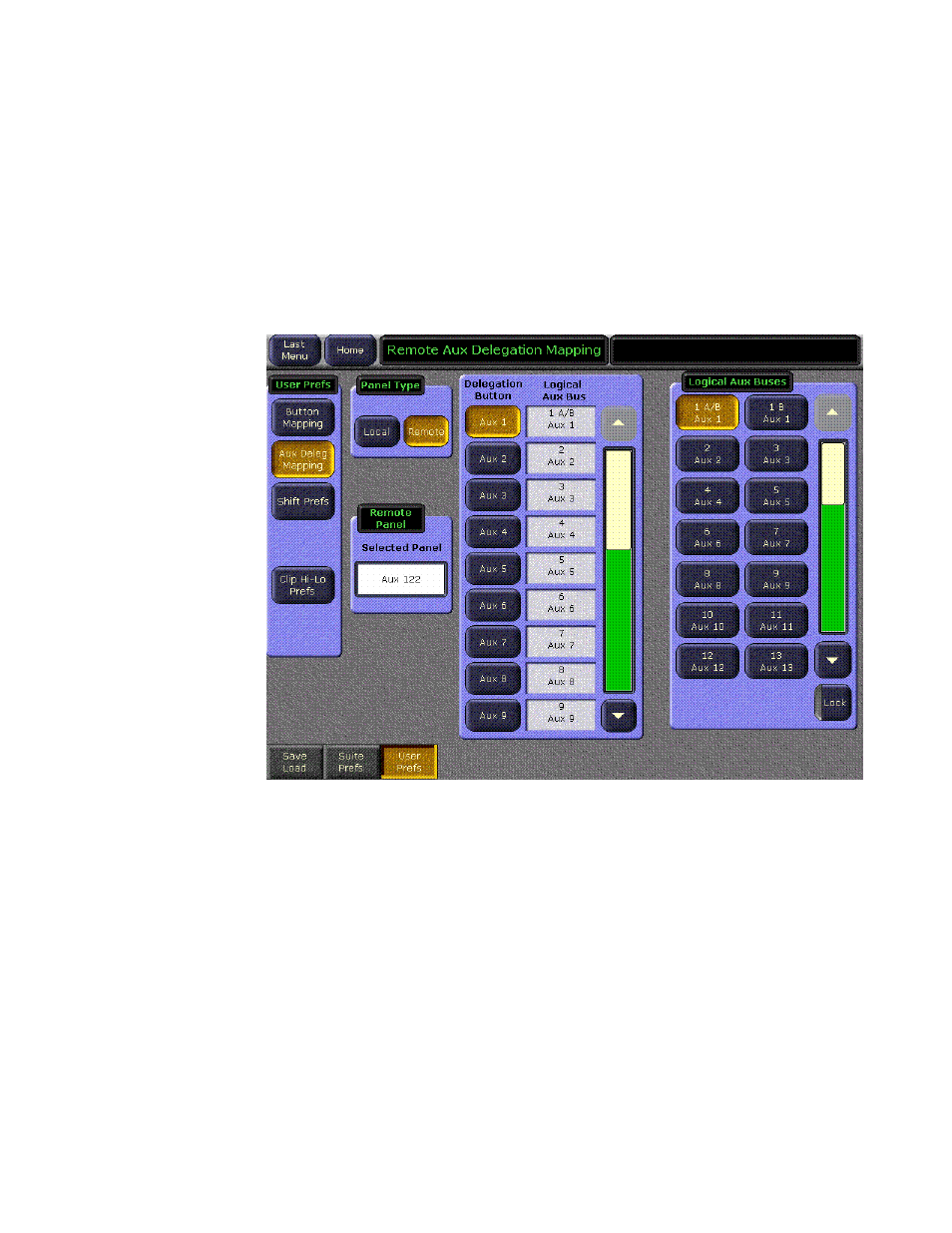

Figure 255. Aux Bus Delegation Button Mapping Menu
To Map Local Aux Panel Delegation Buttons:
1. Touch the Local Panel type button.
2. Scroll the central pane and select the Aux Bus delegation button you
wish to map.
3. Scroll the Aux Buses list on the right and select the desired Aux Bus for
that delegation button.
To Map Remote Aux Panel Delegation Buttons:
1. Touch the Remote Panel type button.
