Zodiak — User Manual 331
M/E Menus
The Knob Mode pane has three buttons, the first two, Gain/Lift and
White/Black , determine the mode for the knobs and the text boxes in the
Color Corrector Transfer Function pane. When the third button, Reset to
Unity , is touched it resets all values for the selected component to the
Nominal values shown in Table 8 .
If Gain/Lift is selected the knobs and boxes will appear as in Figure 232 .
If White/Black is selected (see Figure 233 ), the following changes occur in the
menu:
• The gain and offset are expressed in the oscilloscope in terms of the two
end points of the transfer function without regard to where the scope
trace would clip,
• Gain is changed to White,
• Lift is changed to Black, and
• Text boxes show the values for White and Black.

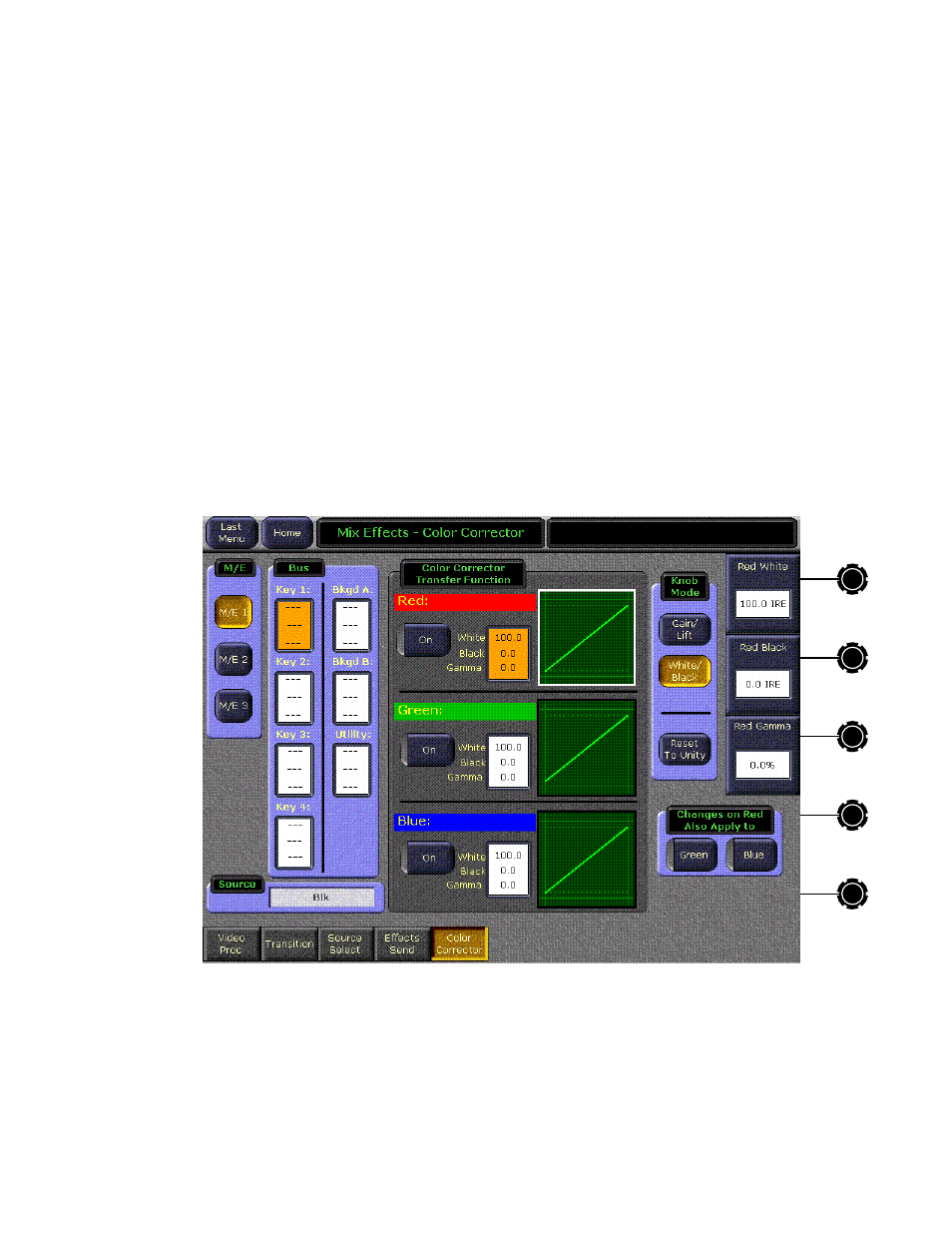

Figure 233. Color Corrector Menu in White/Black Mode
