Daily Setups Menus
GPI In Settings Menu
The GPI In Settings menu ( Figure 107 ) allows you to define the actions trig-
gered by the eight GPI inputs to the GPI Port (J1) on the rear of the Video
Processor frame. GPI inputs can be named and assigned to trigger a spe-
cific switcher action when the input is fired from an external device. The
menu is accessed by touching
Daily Setups , Suite Prefs , GPI In Settings.

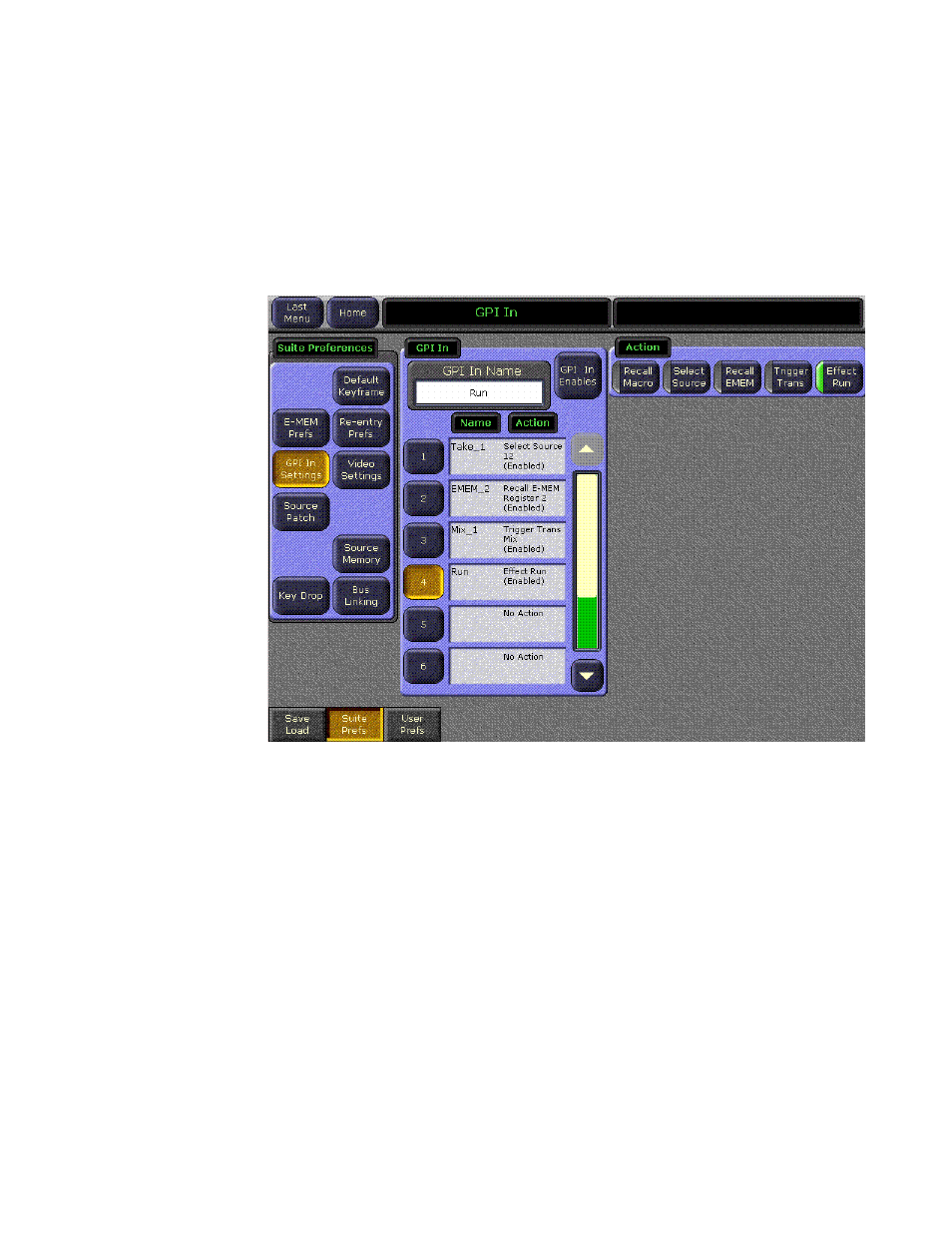

Figure 107. GPI In Settings Menu
The five switcher actions are:
• Recall Macro
• Select Source,
• Recall E-MEM,
• Trigger Transition, and
• Effect Run.
Refer to the following sections of the Zodiak Installation and Service Manual
for GPI input connection and configuration information:
• Section 2 – Installation – describes how to connect the physical GPI
inputs to the GPI port on the rear of the Video Processor frame.
• Appendix C – External Interfaces – contains a complete explanation of
how to configure the GPI inputs to the switcher using the GPI In menu.
