Zodiak — User Manual 285
Still Store Menus
Note When the cache is full, older items will be uncached to make room for the
new item. Long duration recordings involve lots of data and will clear many
cached items. Saving a long recording also takes considerable time. Fenced
recording can be used to reduce storage requirements and save times.
The following fence adjustments must be selected before performing the
recording.
• The Fence Size pane has buttons that determine the size of the image to
be recorded (full screen, 1/4. 1/9, 1/25),
• The Horizontal Fence data pad controls the horizontal position of the
fenced area to be recorded,
• The Vertical Fence data pad controls the vertical position of the fenced
area to be recorded, and
• The Done button hides the pane and redisplays the Still Store output
delegation controls.
Freeze and Clip Playback Editing Controls
Touching the Show Details button brings up a pane on the left ( Figure 201 ).
Freeze mode controls are available on the right side of this pane. Clip play-
back editing controls fill the remainder of the pane.

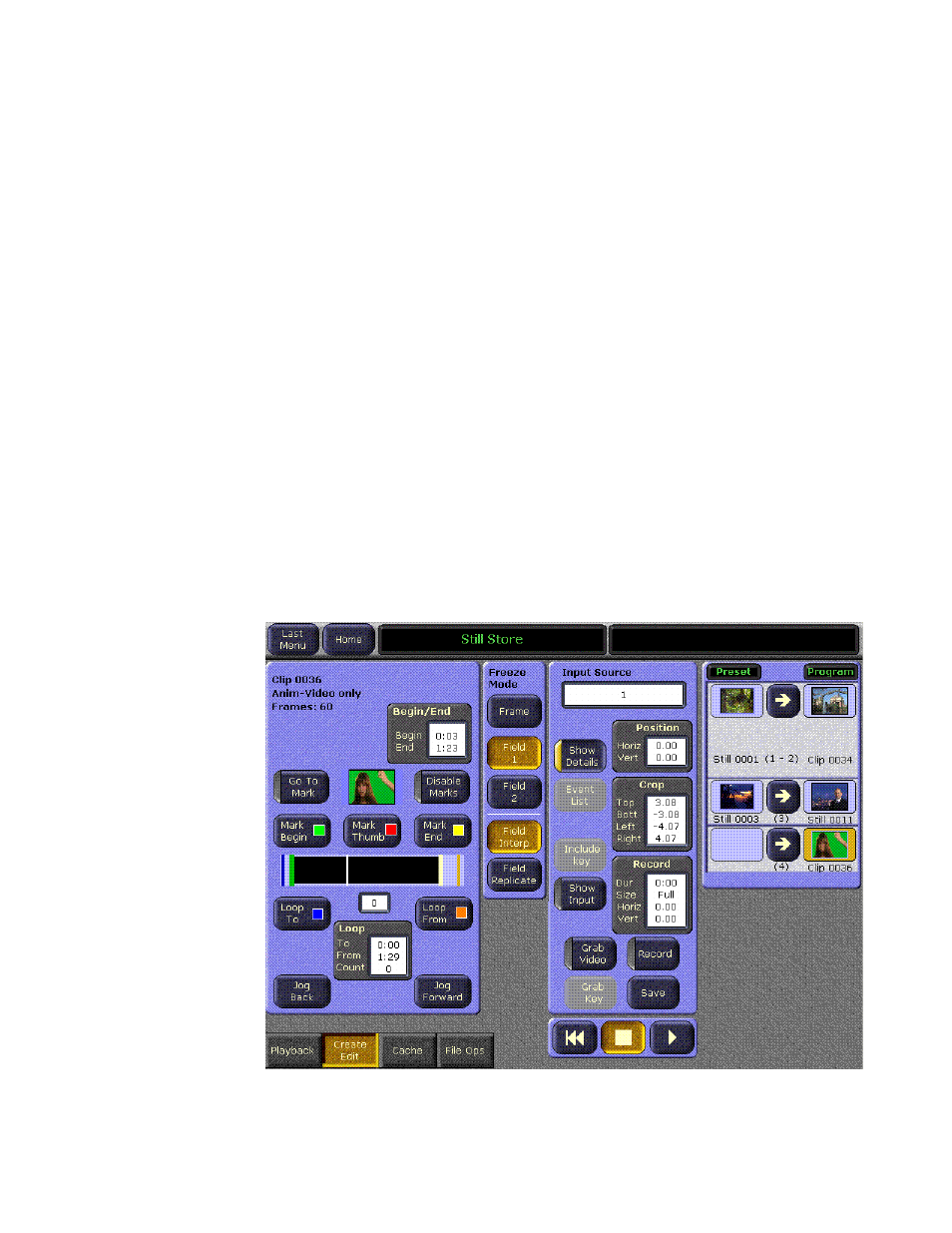

Figure 201. Still Store Create Edit Menu, Show Details
