Wipe Menus

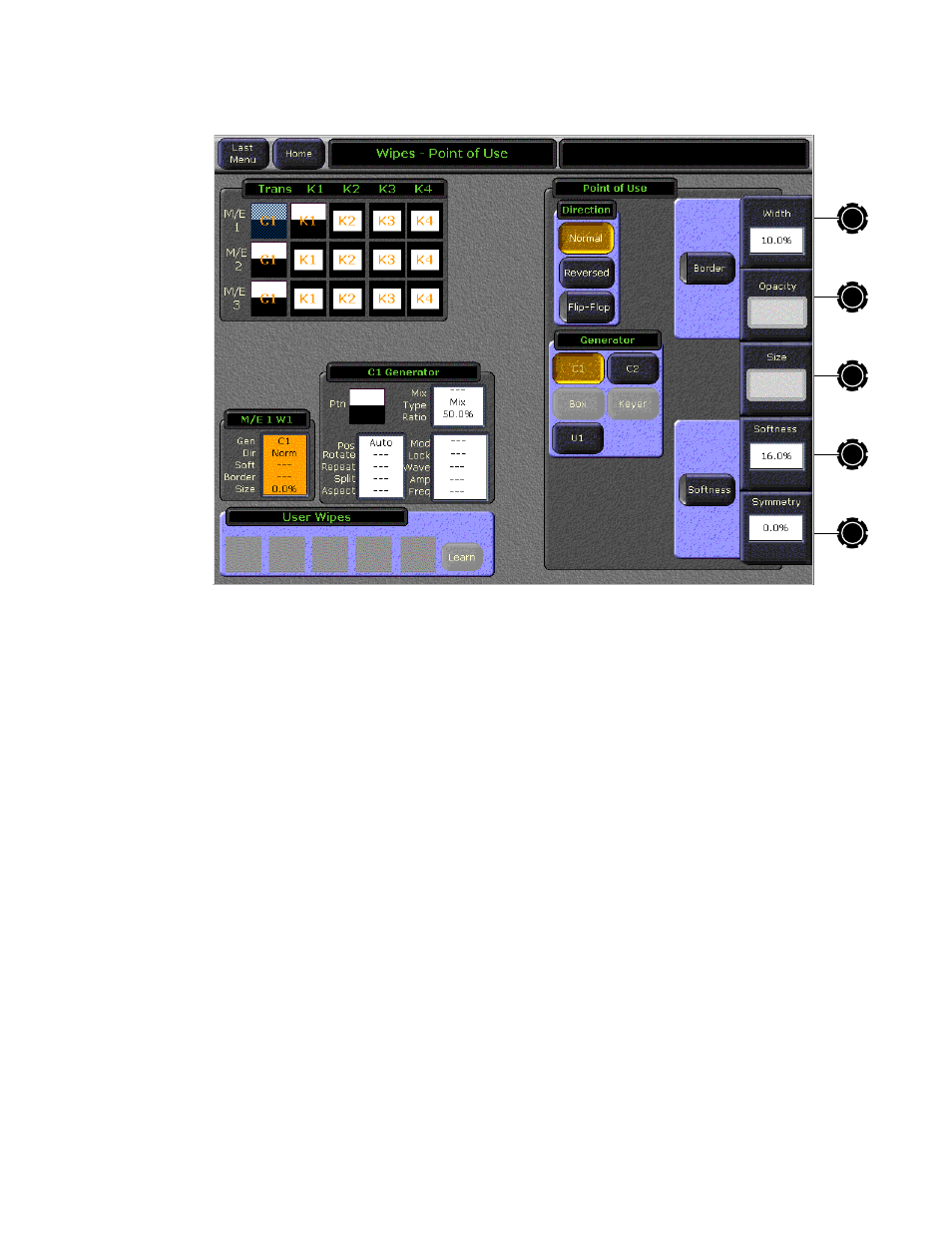

Figure 243. Wipes – Point of Use Menu
In this menu you can pick the wipe pattern generator that will be used by
a point of use, pick the direction of the transition wipe pattern, specify its
border and softness, etc. For operating simplicity, you may decide to use
the Complex wipe generators (C1 and C2) for main transitions, and the
simpler Box and Keyer wipe pattern generators for the keyers. However,
the Zodiak system gives you the flexibility to use complex wipe generators
with either main transitions or for keying and masking, and also the ability
to use Utility bus video as the wipe pattern shape.
Wipe resources and points of use are diagramed in Figure 244 .
